I. Application Background

As electronic devices continue to evolve toward miniaturization and high-density integration, the printed circuit board (PCB)—as a core load-bearing component—has its internal structural integrity and the quality of interconnections between various components directly determining the reliability of electronic equipment. PCB cross-section inspection is a critical method for evaluating internal structures and identifying potential defects. Traditional benchtop scanning electron microscopes (SEMs) often suffer from the inherent trade-off whereby "compact size results in a restricted sample chamber," making them unsuitable for inspecting relatively large samples such as encapsulated PCB cross-sections. In this case study, the SuperSEM N10XL benchtop scanning electron microscope was employed, leveraging its core advantages of "compact footprint and generous sample chamber capacity," to perform microstructural observation and elemental analysis of PCB cross-sections. This enabled precise identification of key components including silica fillers, copper traces, and nickel layers. Combined with EDS pseudo-color rendering for visual elemental differentiation, the approach provides an efficient and convenient inspection solution for PCB quality control.

II. Inspection Requirements

An electronics manufacturing enterprise requires quality spot-checking of batch-produced PCB products. The core inspection requirements are as follows:

1. Inspect the distribution state and morphological characteristics of internal components within PCB cross-sections, including silica fillers (insulating reinforcement components), copper traces (conductive circuitry), and nickel layers (solderability protection layers);

2. Confirm the absence of defects such as missing, fractured, or detached components;

3. Rapidly differentiate various elemental components and intuitively present the spatial distribution relationships among them;

4. The inspection equipment must be adaptable to limited laboratory space and capable of accommodating encapsulated PCB cross-sections (post-encapsulation sample dimensions: approximately 30 mm × 20 mm × 10 mm), while simultaneously ensuring inspection efficiency and imaging clarity to meet batch spot-checking requirements.

Conventional benchtop scanning electron microscopes, due to their compact design, have restricted sample chamber volumes that cannot accommodate large encapsulated PCB cross-sections, necessitating secondary cutting of samples to reduce dimensions. This not only adds procedural steps and risks sample damage, but also compromises the comprehensiveness of the inspection. Conversely, full-sized scanning electron microscopes are bulky, occupy significant floor space, involve complex operation, and incur high inspection costs, rendering them unsuitable for routine batch inspections in laboratory settings. The benchtop scanning electron microscope selected in this case effectively resolves the conflict between "compact size and sample chamber capacity," allowing direct insertion of encapsulated PCB cross-sections without size reduction, while simultaneously delivering imaging clarity and EDS elemental analysis capabilities—perfectly matching the inspection requirements of this application.

III. Inspection Equipment and Sample Preparation

1. Inspection Equipment

The benchtop scanning electron microscope employed in this inspection offers the following core advantages:

① Compact footprint, with an overall floor space requirement of only 0.3 m², allowing flexible placement on standard laboratory workbenches without the need for dedicated large-equipment space;

② Optimized sample chamber design with an effective accommodation capacity of up to 50 mm × 40 mm × 20 mm, enabling easy insertion of encapsulated PCB cross-sections without the need for secondary sample processing;

③ Equipped with a tungsten filament electron gun and a backscattered electron detector (BSED), delivering high imaging resolution that clearly reveals microstructural morphological details;

④ Integrated EDS energy-dispersive spectroscopy module, supporting qualitative elemental analysis and pseudo-color rendering for rapid differentiation of various elemental components;

⑤ User-friendly operation that does not require advanced specialized skills, with rapid system readiness after startup, making it well-suited for batch sample spot-checking.

IV. Inspection Process and Results Analysis

1. Sample Chamber Adaptability Test

The encapsulated PCB cross-section was smoothly placed into the sample chamber of the benchtop scanning electron microscope. The chamber cover could be properly closed, the sample was securely positioned without obstruction, and the equipment operated without any abnormalities. In contrast to the issue faced by conventional benchtop electron microscopes where "the sample is too large to fit," this device fully optimizes the sample chamber space while maintaining a compact form factor, eliminating the need to cut down the encapsulated sample. This not only saves sample preparation time but also avoids damage to the internal PCB structure caused by secondary processing, thereby ensuring the authenticity and comprehensiveness of the inspection results.

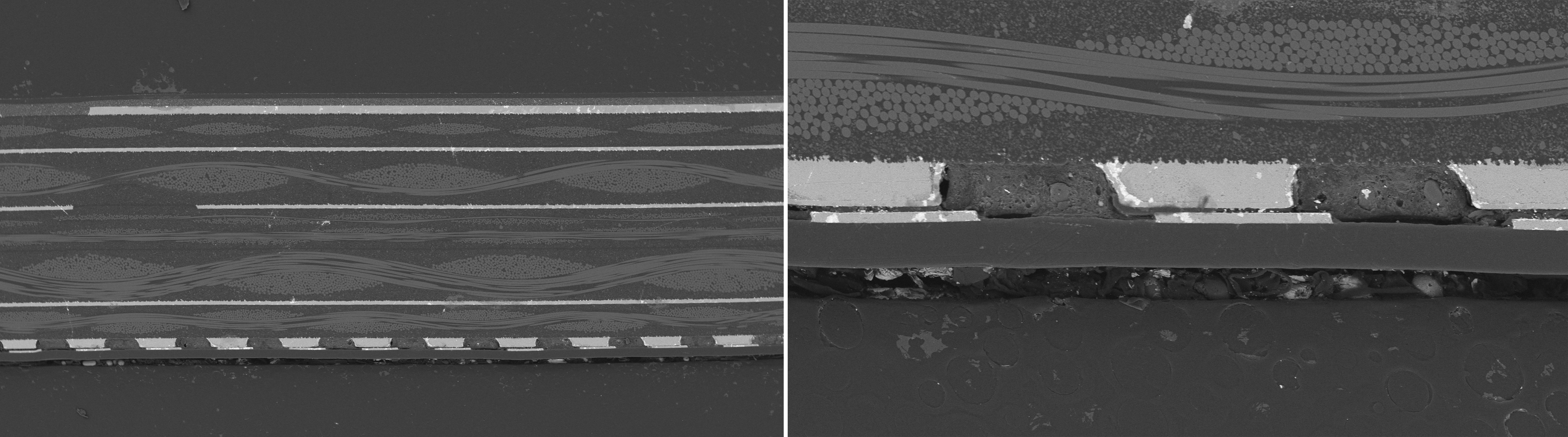

2. Microstructural Observation (BSED Mode)

Upon system startup, the BSED mode was employed for microscopic scanning of the PCB cross-section. By adjusting the magnification (500× to 5,000×), the three core component types within the PCB cross-section could be clearly observed, with distinct and identifiable morphological features:

Silica fillers: Presenting as irregular granular particles, uniformly dispersed within the PCB resin matrix, with clearly defined particle boundaries and no agglomeration or detachment observed. This indicates that the PCB insulation reinforcement process is qualified, and the dispersibility of the silica fillers meets product requirements;

Copper traces: Appearing as continuous elongated strips with smooth surfaces, free from fractures or oxidation marks. The copper traces are tightly bonded to the resin matrix with no gaps or debonding issues, ensuring stable conductive performance of the PCB;

Nickel layers: Uniformly covering the copper trace surfaces with consistent thickness, exhibiting no damage or exposed copper areas. The integrity of the nickel layer effectively enhances the solderability and corrosion resistance of the PCB, meeting product quality standards.

The BSED imaging mode of this benchtop scanning electron microscope offers large depth of field and high contrast clarity, enabling rapid differentiation of boundaries between different components. Even subtle morphological defects can be accurately identified, fully meeting the requirements for microstructural inspection of PCB cross-sections.

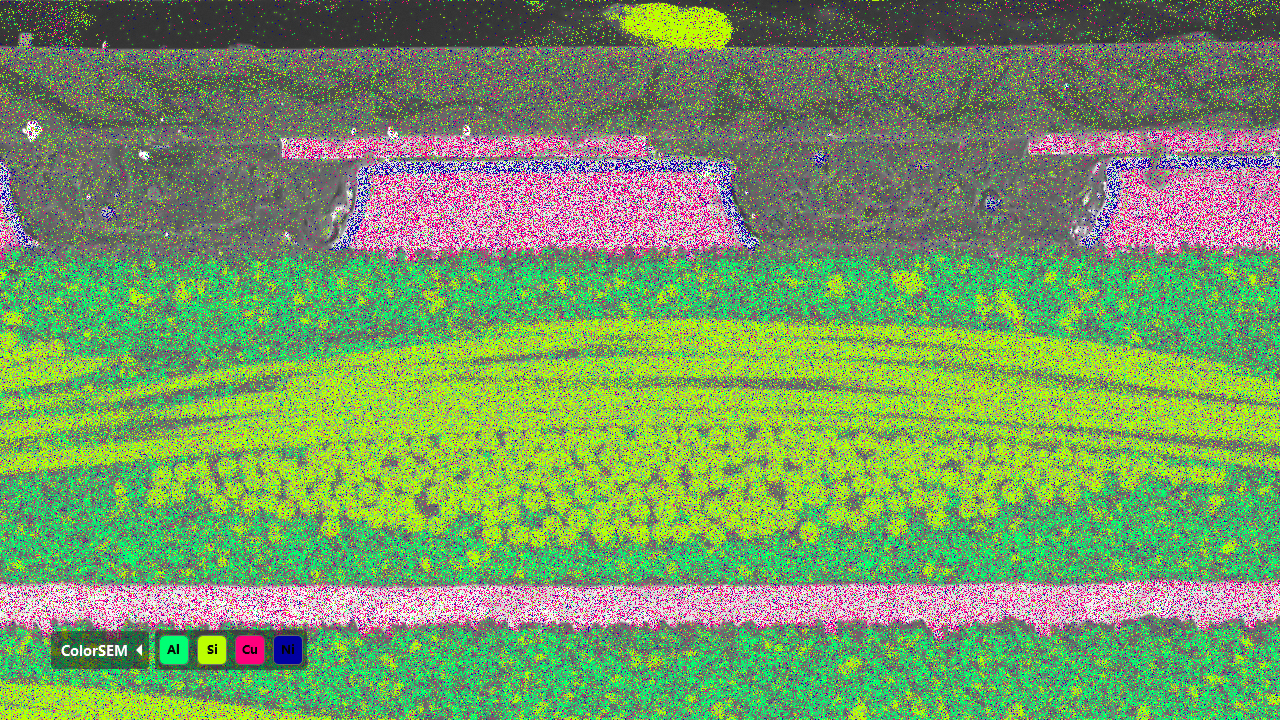

3. EDS Elemental Analysis and Pseudo-Color Rendering

Building upon the microstructural observations, the integrated EDS energy-dispersive spectroscopy module was activated to perform area-scanning analysis on the inspection surface of the PCB cross-section. Simultaneously, the elemental pseudo-color rendering function was enabled, assigning distinct colors (customizable) to each elemental type based on their characteristic spectral lines, thereby achieving visualized presentation of elemental distribution. The specific results are as follows:

Silicon (Si): Rendered in green via pseudo-color, the green regions are uniformly distributed across the entire inspection surface, precisely corresponding to the positions of silica fillers observed in microstructural imaging. This intuitively presents the uniform dispersion of silica fillers and further validates the rationality of the silica filler dispersion process;

Copper (Cu): Rendered in red via pseudo-color, the red regions appear as continuous elongated strips corresponding to the copper trace structures within the PCB. The red regions show no breaks or missing sections, indicating that the copper traces are completely connected with no fracture defects;

Nickel (Ni): Rendered in blue via pseudo-color, the blue regions uniformly cover the surfaces of the red copper traces, forming a continuous thin blue layer with no voids or damage. This demonstrates that the nickel layer is completely covered with uniform thickness, meeting soldering protection requirements;

Other auxiliary elements (such as carbon and oxygen in the resin matrix) are rendered in their respective assigned colors, clearly presenting the spatial distribution relationships among all elements. No anomalous elements are detected, indicating that the purity of the PCB raw materials meets the required specifications.

The EDS pseudo-color rendering function rapidly transforms abstract elemental analysis data into intuitive color images, enabling quick assessment of the distribution status and integrity of each component without requiring specialized personnel to interpret complex spectral data. This significantly enhances inspection efficiency and is well-suited for rapid spot-checking of batch PCB samples.

V. Case Summary and Equipment Advantages

In this application case, the benchtop scanning electron microscope successfully completed microstructural observation and elemental analysis of encapsulated PCB cross-sections, fully achieving the inspection requirements while demonstrating the core advantages of the equipment and addressing the key pain points of traditional benchtop electron microscopes:

1.Balancing compact footprint with ample sample chamber capacity: The overall system is small in size, suitable for limited laboratory space, while the sample chamber can easily accommodate PCB encapsulated samples measuring 30 mm × 20 mm × 10 mm without the need for secondary sample cutting—saving operational time and protecting sample integrity;

2. High inspection efficiency and user-friendly operation: Rapid startup upon power-on, with no requirement for advanced specialized skills. Microstructural observation and EDS elemental analysis can be completed quickly, with a single sample inspection time not exceeding 30 minutes, making it well-suited for batch sample spot-checking;

3. Imaging and analytical precision meeting requirements: The tungsten filament BSED mode delivers clear imaging, enabling accurate identification of morphological features and defects in silica fillers, copper traces, and nickel layers. EDS pseudo-color rendering intuitively distinguishes different elements, providing a straightforward basis for quality assessment;

4. Outstanding cost-effectiveness: Compared with full-sized scanning electron microscopes, this benchtop system offers lower procurement and maintenance costs while maintaining robust analytical performance, making it capable of meeting the inspection needs of PCB and similar samples in electronics manufacturing laboratories and general research institutions.
