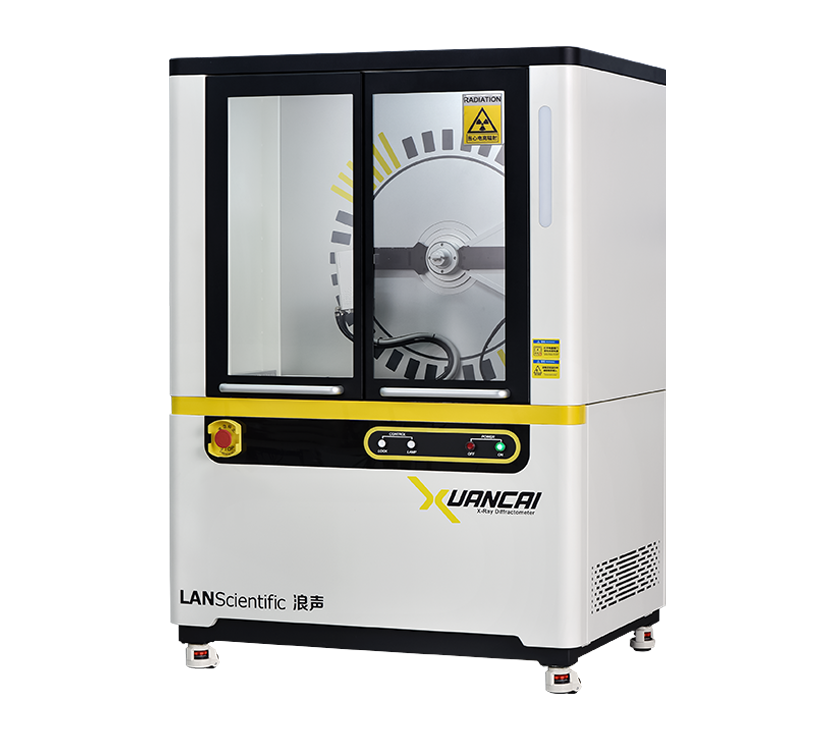

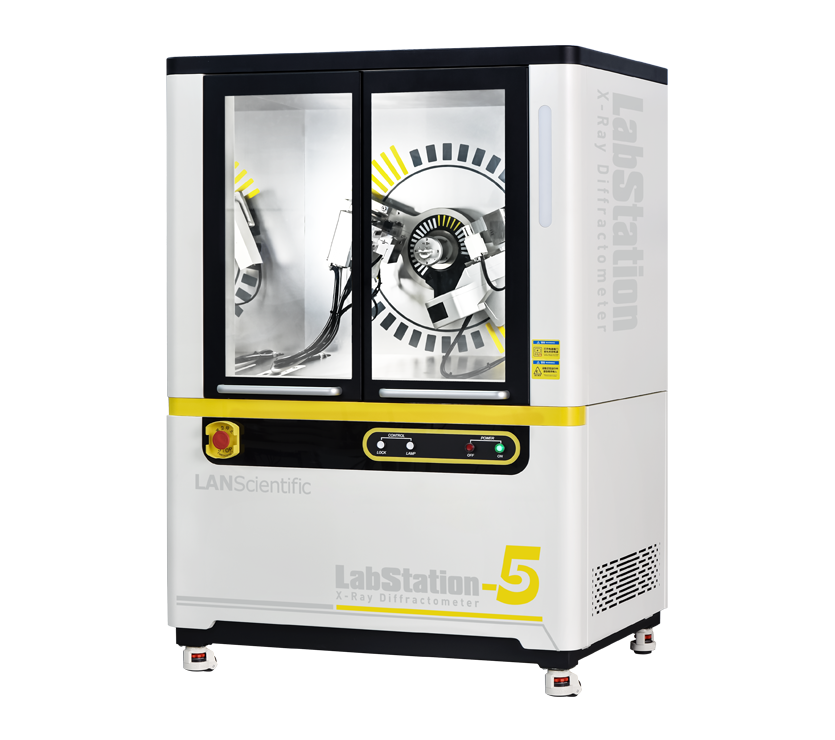

XRD-LabStation-5 Floor-Standing X-ray Diffractometer

Modular design for flexible configuration, ultra-high performance integration, and increased efficiency for diverse applications!

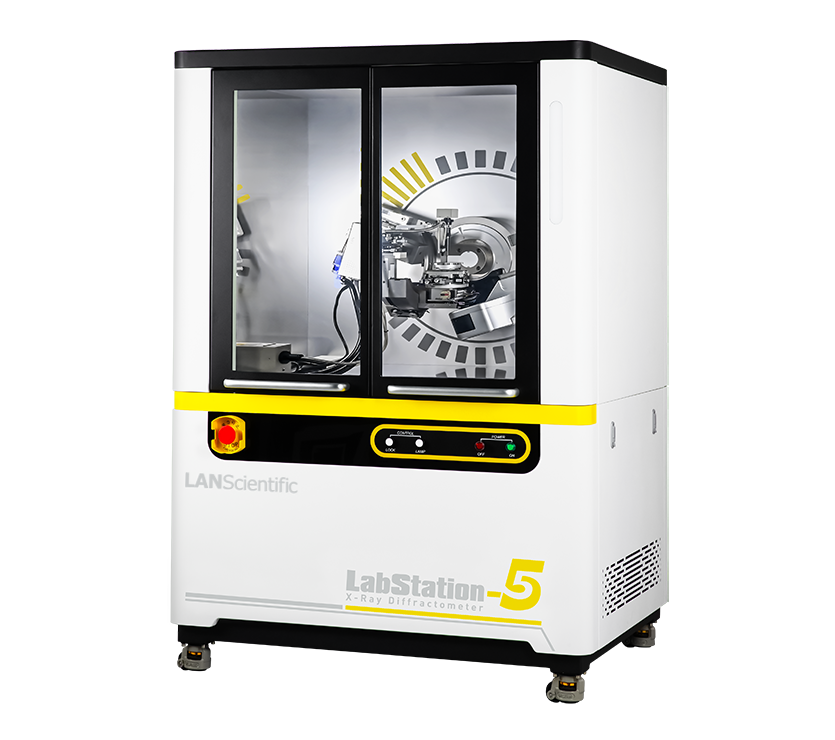

XRD-LabStation-5 Floor-Standing X-ray Diffractometer

XRD-LabStation-5 X-Ray diffractometer, as a new generation of high-performance and multi-functional diffraction analysis platform, is equipped with an HPC detector and features automatic recognition capability, enabling intelligent identification of all optical components and sample stages. Integrated with the CrystalX intelligent analysis software, it offers one-click operation and full automation from sample placement to result analysis, significantly streamlining experimental procedures and enhancing research efficiency.


XRD-LabStation-5 not only user-friendly but also highly versatile. Its high-precision θ/θ closed-loop goniometer drive system ensures exceptional accuracy and repeatability of measurements. The non-coplanar arm structure further expands the instrument’s application scope and measurement capabilities. Whether dealing with common powder samples, liquid samples, or complex materials such as nanomaterials, pharmaceuticals, semiconductors, and thin films, XRD-LabStation-5 handles them with ease, meeting diverse research needs. The combination of a fully automated optical system and modular design provides advanced measurement capabilities while offering strong scalability and flexible configuration options tailored to specific requirements.



Advantage

Modular Design

Equipped with a modular sample stage system, it supports tool-free snap-in plug-and-play installation, making the installation and replacement process simple and efficient, greatly enhancing the flexibility of instrument use.

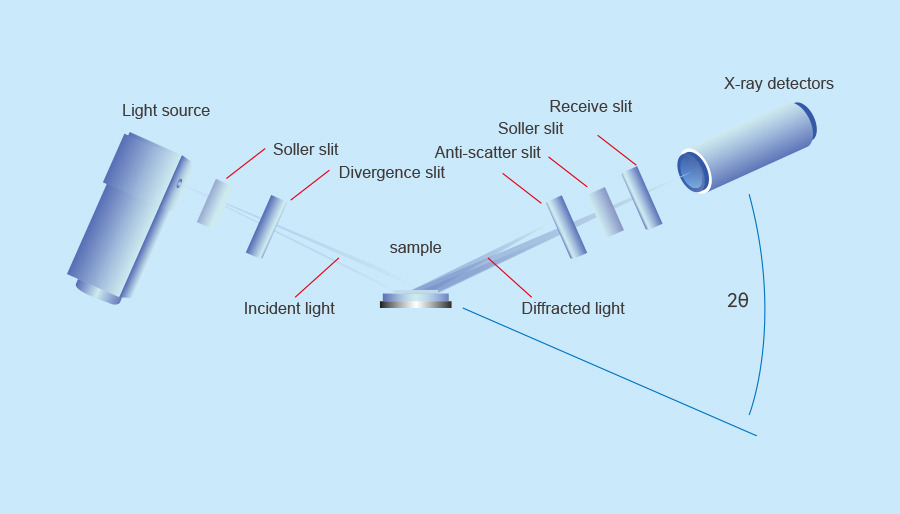

Multiple Beam Geometries

Equipped with Bragg-Brentano diffraction geometry for powders and parallel beam geometry suitable for bulk samples, coatings, and thin films, which can be switched between without manual intervention, it is an ideal choice for analyzing all types of samples, including powders, bulk objects, fibers, sheets, and thin films (amorphous, polycrystalline, and epitaxial).Outstanding HPC Detector

Outstanding HPC Detector

Equipped with a photon-counting pixelated HPC detector, it greatly improves diffraction intensity while significantly enhancing five core performance characteristics: sensitivity, signal-to-noise ratio, dynamic range, time resolution, and spatial resolution.

Motorized Variable Slits

The motorized variable slits automatically adjust the slit width based on measurement requirements, optimizing beam intensity and resolution. This improves measurement accuracy and efficiency while adapting to different sample types and experimental conditions, enhancing the instrument's flexibility and applicability.

Diverse Accessory Options

A wide range of sample stage accessories is available, providing flexible and diverse solutions for sample analysis. These accessories accommodate samples of various forms, sizes, and testing requirements, enabling more comprehensive and in-depth exploration of material properties.

Diffraction Circle Radius ≥300mm

XRD-LabStation-5 features a diffraction circle radius of ≥300mm, significantly expanding the measurable angular range. It provides higher resolution and a broader 2θ scanning range, enabling high-precision analysis of complex material microstructures—particularly suited for detailed studies of thin films, nanomaterials, and polycrystalline samples.

Non-Coplanar Arm Structure

The non-coplanar arm structure greatly extends the measurable angular range, improves measurement accuracy, and enhances in-plane diffraction capability. It supports a variety of applications, including thin film research, residual stress analysis, and texture analysis, significantly boosting the instrument's versatility and applicability.




Application scenario

XUANCAI Floor-Standing X-ray Diffractometer(图1)


Geology and exploration



XUANCAI Floor-Standing X-ray Diffractometer(图2)


New technology material


XUANCAI Floor-Standing X-ray Diffractometer(图3)


Chemical industry


XUANCAI Floor-Standing X-ray Diffractometer(图4)


Research and education


XUANCAI Floor-Standing X-ray Diffractometer(图5)


Biomedicine

XUANCAI Floor-Standing X-ray Diffractometer(图6)


Metal compounds

XUANCAI Floor-Standing X-ray Diffractometer(图7)


Other fields









Product Parameters

GoniometerVertical goniometer, using optical encoder technology, diffraction circle radius ≥ 300mm
2θ Measuring range-110°- +168°
X-Ray tubeCermet X-Ray tube, focus: 1 x 12mm, Cu target, Co target, Cr target, Mo target are optional
High voltage generator power3000W
Size1400mm x 1100mm x 1994mm(W×D×H)
Weight950kg
Power supply220V±10V,50Hz The power of the whole machine is ≥4500W
Drive mode

AC servo motor drive + dual optical encoder

Resolution<0.04°2θ half maximum width FWHM
Scan speed0.01 - 120˚/min
Heat dissipationUsing an external water circulation cooling system, powerful cooling and surging power
DetectorHPC detector (optional)
InterfaceUSB interface connects to PC to control XRD
In situ analysis propertiesProvides 5-way air source interface, 4-way power supply in the cabin, 4-way motor drive, 2-way control bus, and integrated support for a variety of in-situ analysis accessories.
Cloud service functions"XRD-LabStation-5" is equipped with a synchronizable mobile APP service to support card-based management of diffraction data and support access to knowledge management systems.
