TrueX Family (Handheld)

Alloy Analyzer

Alloy Analyzer

The TrueX handheld alloy analyzer integrates the latest scientific innovations of LANScientific and is a powerful tool for metal material identification in the production process. It has the advantages of fast, high precision, portability, and other advantages. It can carry out on-site detection and rapid classification of large amounts of metal waste, providing users with rapid, efficient and accurate data information.

It is a powerful tool in quality control (QA/QC), material analysis (PMI), mixture identification, waste sorting (Recyling), Grade ID in steel smelting, non-ferrous metals, petrochemical refining, fine chemical industry, pharmaceutical, electric power plant, aerospace and other industries.


Advantage

Professional brand database

The product's built-in brand database contains 380 kinds of alloy brands, which can solve the conversion problem of different countries' brands in special industry applications. At the same time, users can customize the expansion of alloy brand library, can simultaneously analyze more than 600 kinds of alloy, alloy materials more than 10,000 kinds.

Extremely low detection limit

New net strength fitting method, super-FP algorithm enables users to accurately analyze metal material and element content without switching modes.

Nondestructive testing (NDT)

The whole testing process has no damage to the product, and the measurement can be carried out under various extreme environmental conditions such as high and low temperature, dust, dark and damp.

Personalized

Professional management analysis software, can set up security password, output customized, personalized and with the company LOGO analysis report.

More portable

One-button operation, more convenient; The instrument is smaller and lighter, convenient for users to carry, and remote control of the instrument can be easily realized.

Application scenario

手持式合金分析仪(图1)

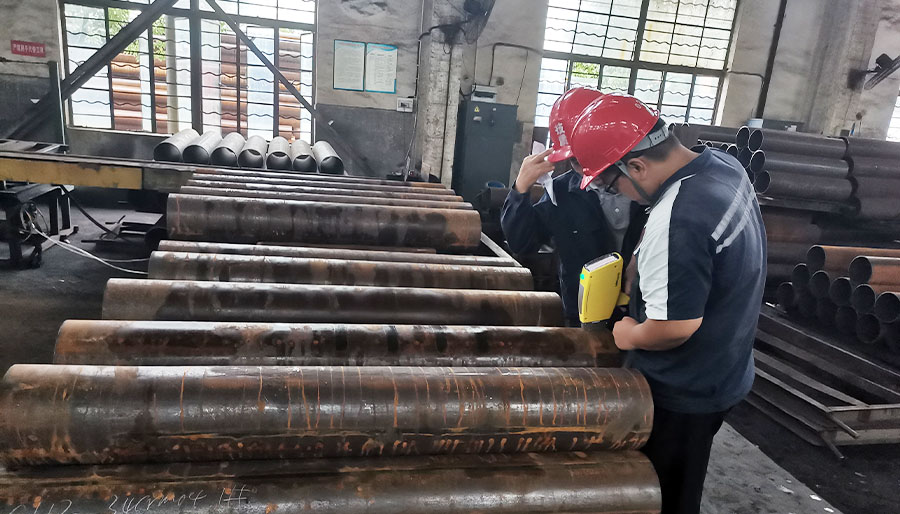

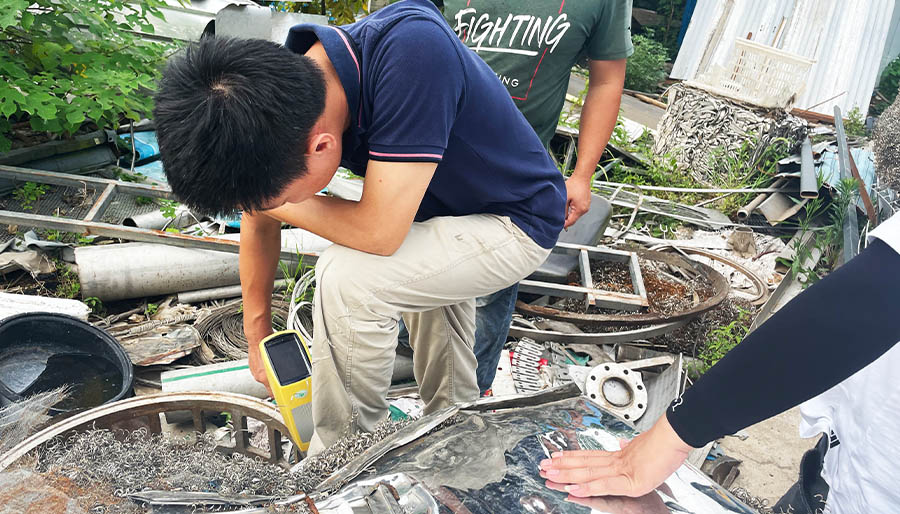

Waste recycling and sorting


手持式合金分析仪(图2)

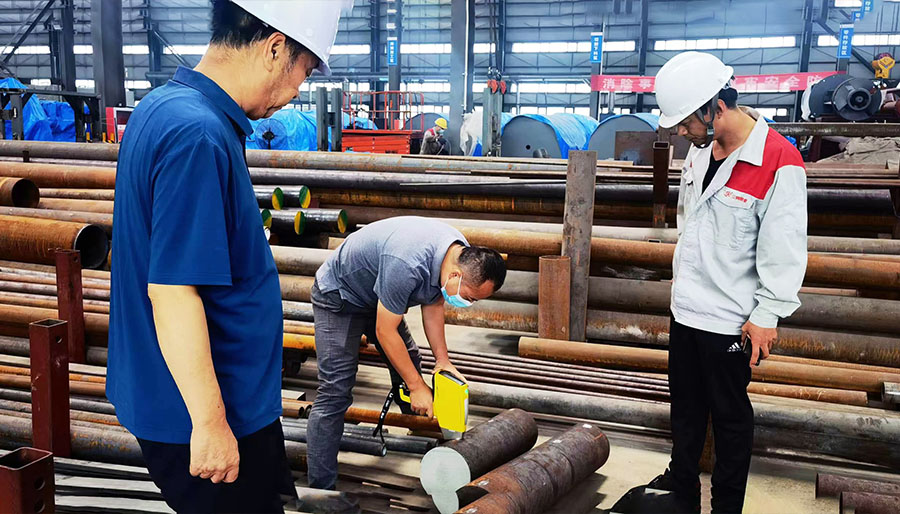

Alloy material identification (PMI) incoming inspection


手持式合金分析仪(图3)

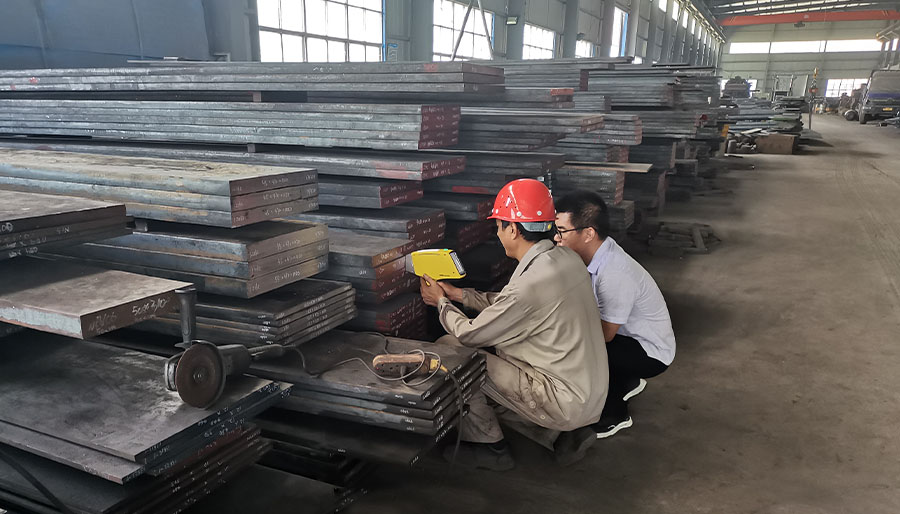

Quality control and QA (QC/QA) and Effective Error Prevention (PKKA-YOKE)


Product parameter

Weight1.5KG
Size254×79×280mm(L×W×H)
Detection range
Mg—U
Excitation source50kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
DetectorSi-PIN detector/SDD detector

Display system

4.3 "industrial grade resistance touch screen

Automatically adjust display brightness according to external environment brightness

Data processing

Built-in 32GB storage

USB, can connect the device to the Internet, remote setting and maintenance of the instrument

Heat dissipationT-slot radiator
Security

Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection

Waterproof, dustproof and shockproof carrying case

LANScientific special safety rope

Power system

Intelligent battery with MSBUS, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations

A single battery can work for about 8 hours
