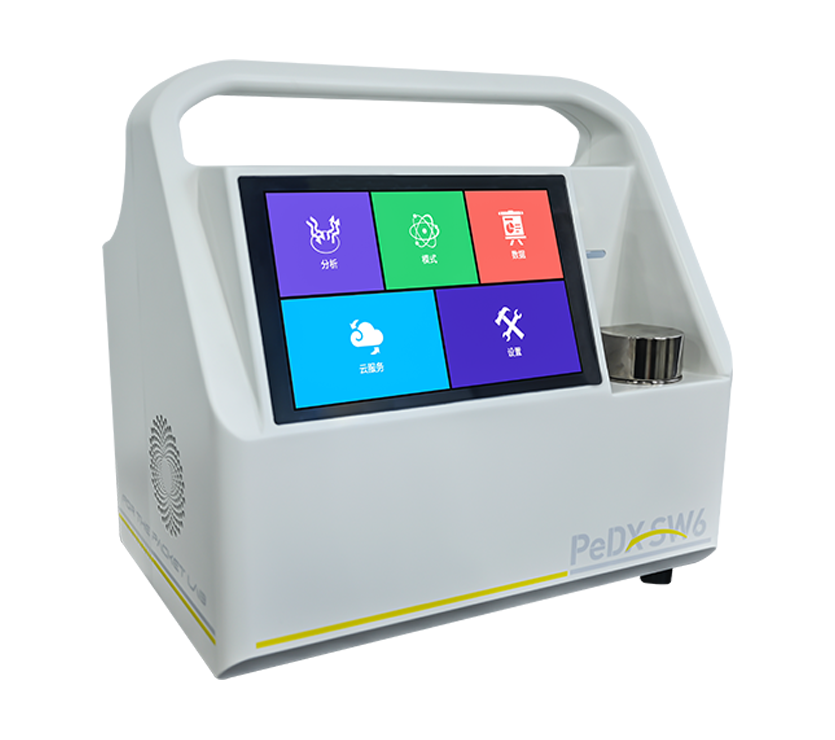

Driven by tightening global sulfur cap regulations and domestic clean fuel standards, the PeDX SW6 portable ultra-low sulfur oil analyzer sets a new benchmark for rapid on-site and laboratory sulfur detection.

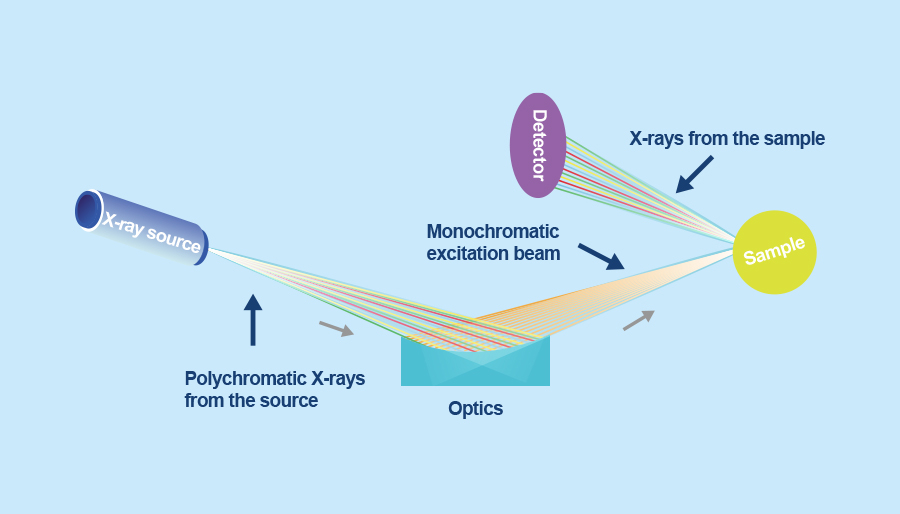

Powered by advanced single-wavelength excitation technology, it effectively suppresses background interference, delivering exceptional signal-to-noise ratio and detection sensitivity. Compared to conventional XRF, the PeDX SW6 achieves breakthrough performance with low background and high excitation efficiency, enabling precise quantification of light elements like sulfur at ultra-low levels.

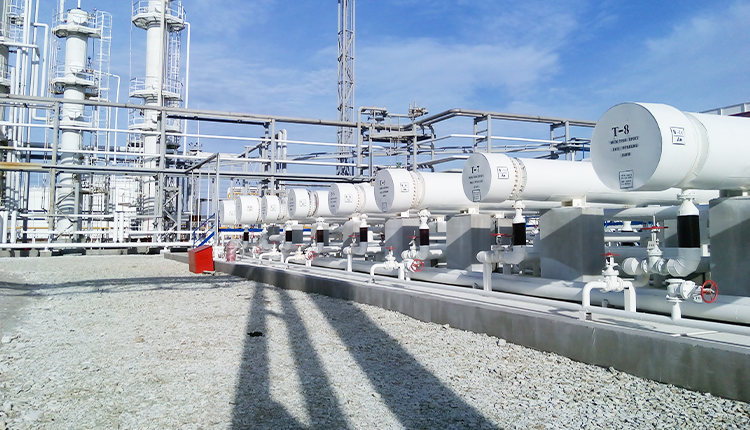

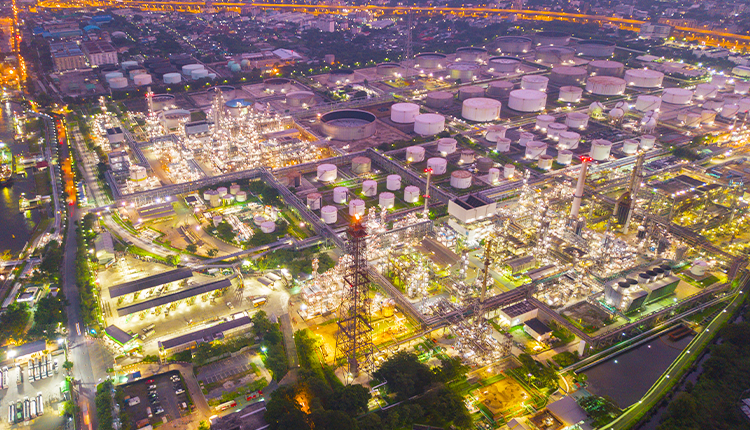

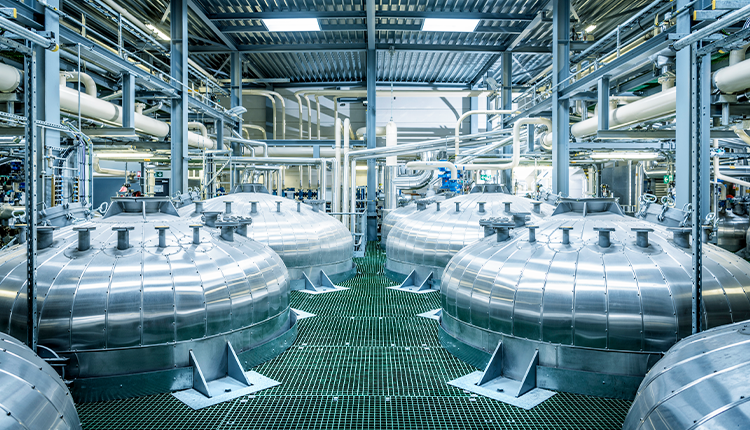

Compact, easy to operate, and fast, the PeDX SW6 is ideal for on-site sulfur screening in gasoline, diesel, jet fuel, ethanol gasoline, residual oil, lubricating oil, crude oil, and more. It is a trusted tool for environmental and transportation law enforcement, as well as petrochemical quality control, warehouse inspection, and trade settlement.
|
|
|
|
Analysis of wear elements / additives / hydrocarbons in petroleum products |
| Size | 330mm x 230mm x 305mm（L×W×H） |
| Crystal | Hyperbolically curved crystal |
| Core Technology | Single-wavelength technology |
| Element range | S, with expandable analysis for elements such as Si, Cl , and P |
| Concentration Range | ppm – 99.99% |
| Measurement Time | 30S-1200S |
| Excitation Source | High-performance micro X-ray tube, optional W/Ag/Rh target |
| Detector | Equipped with large-area SDD detector, energy resolution ≤125 eV |
| Operating Temperature | -5°C to +40°C |
| Operating Humidity | 40–70% (non-condensing) |
| Working temperature | -20℃~50℃ |
| Data Display System | Integrated display with 8-inch industrial capacitive touch screen |
