TrueX Family(Handheld)

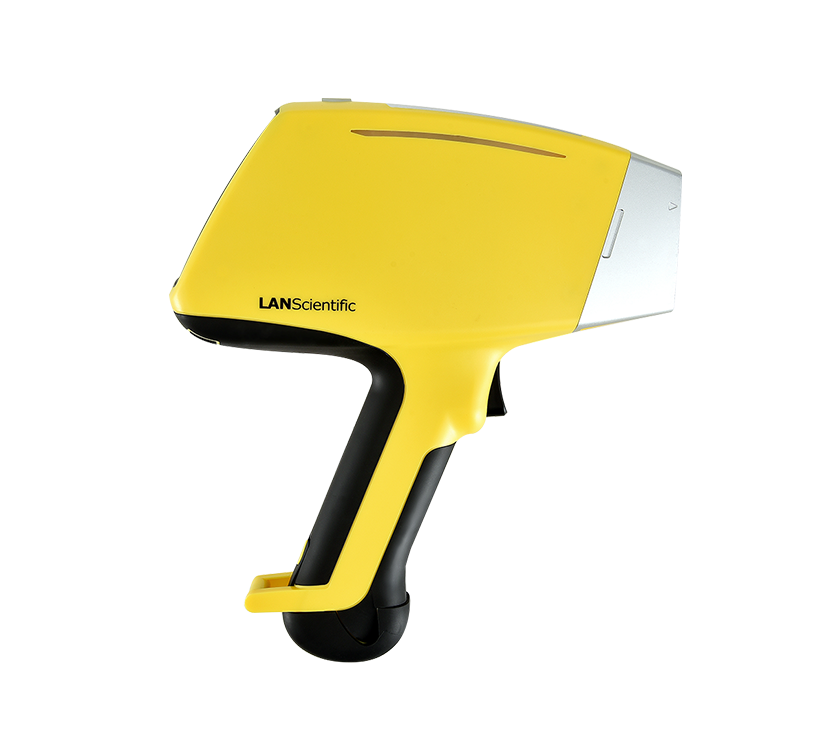

TrueX G5 Gold Analyzer for High-quality Recycling

TrueX G5 Gold Analyzer for High-quality Recycling

TrueX G5 Gold Analyzer is an efficient and portable testing tool designed by LANScientific for precious metal recyclers and reprocessing industry. It provides non-destructive analysis on element concentration of precious metals such as gold, silver, platinum and alloy metals and gold-plating samples. It has the advantages of portability, no need for sample preparation, non-destructive testing, fast speed, good stability, high accuracy, and high cost-effectiveness.


TrueX G5 gold analyzer plays a vital role in the precious metal recycling industry. Excellent portability allows recyclers to perform on-site analysis without having to send samples to the laboratory, saving time and transportation costs, and greatly improving work efficiency. Through accurate composition analysis, it helps recyclers quickly evaluate the value of materials, optimize the sorting and pricing strategies, improve the market competitiveness.

Advantage

High accuracy

XRF technology provides reliable purity and composition data with an accuracy up to 0.03% (999 gold).

Fast analysis

Compared with traditional chemical methods, XRF precious metal analyzer provides results in seconds, greatly improving efficiency.

Non-destructive analysis

With no need to pre-process samples, it is simple, convenient and fast to realize the non-destructive analysis of precious metals.

Light and small

Light and easy to carry, designed for on-site analysis.

One-click intelligent operation

The entire analysis process can be done in several seconds. The operation is simple and can be easily mastered by non-technical personnel.

Equipped with Bluetooth printer

Bluetooth printer is equipped for wireless printing. Users only need to click ‘Print’ button to obtain reports and data quickly.

A/S service

7*24hours hotline, quick and professional response to ensure customers’ worry-free experience.

Application scenario

TrueX G5 Gold Analyzer for High-quality Recycling(图1)


Recycling material analysis in gold refiner / jewelry factory


Gold analyzer is the key equipment to ensure the quality of recycled material in gold refinery and jewelry factory. It can analyze the purity and composition of recycled gold quickly and accurately, helping refineries to efficiently evaluate raw material value and optimize the refining process. In addition, benefiting from high accuracy of XRF gold analyzer, environmental pollution is reduced while productivity and product quality are improved. For jewelry factories, XRF precious metal analyzer ensures the accurate ratio of recycled materials and guarantees the fineness and quality of jewelry.

TrueX G5 Gold Analyzer for High-quality Recycling(图2)

Trade-in or recycling tests in gold shop / jewelry showroom


Gold analyzer is an indispensable tool for trade-in or recycling services in gold shop and jewelry showroom. It provides accurate purity and composition analysis, ensuring the fairness and transparency of transaction.

TrueX G5 Gold Analyzer for High-quality Recycling(图3)

Evaluation of the pawn value of precious metals and jewelry in pawnshop


Pawnshops need to accurately assess the purity, composition, and value of precious metals and jewelry to ensure the fairness and safety of trading. Gold analyzer can quickly identify the authenticity and purity of gold, platinum, palladium and other precious metals, evaluate precious metals and jewelry, avoiding economic losses caused by miscalculation and reducing the risk of adulteration and fake.

TrueX G5 Gold Analyzer for High-quality Recycling(图4)

Other precious metal recycling composition analysis


Various recycling channels such as banks, individuals and small recyclers need accurate composition analysis technology to ensure recycling quality of precious metal products such as gold and gold-plated electronic wastes.





Product parameter

TypeHandheld
Weight1.5KG(without battery)
Size254×79×280mm(L×W×H)
Detection rangeAl-U
LanguageMulti languages including Chinese, English
Detector

Si-Pin detector

Optical structure

Oblique

Tube windowBeryllium(Be) window
Collimator

Equipped with 1.5mm collimator to reduce background noise,improve resolution and accuracy.

Accuracy

±0.03%(999Gold)

Built-in computerIncluded
Display system

4.3-inch industrial-grade resistance touch screen

Automatic display brightness adjustment according to environment

Computer parameterI. MX 6 Quad, quad-core Cortex-A9 processor
Data printingBluetooth printer
AlgorithmTrueX G5 adopts curve calibration method and fundamental parameter(FP) method to remove background difference, reduce error and improve test accuracy.
One-click test buttonIncluded
CameraBuilt-in camera provides intuitive sample positioning and image recording function, ensuring accurate X-ray irradiation and operation.
Data transmissionBuilt-in 32G system memory,USB,Bluetooth
Power supply

Standard 2 MSBUS intelligent batteries

A single battery can work for about 8 hours. State of charge(SOC)can be directly checked in the battery.

Compliance with the transport regulations of dangerous goods by air
