TrueX Family (Handheld)

Mineral Analyzer

Good helper of mining people
Mineral Analyzer

The LANScientific TrueX mineral analyzer provides rapid and accurate elemental analysis results with little or no sample preparation at all stages of a mining operation, from grassroots exploration and development, to ore grade control, and even environmental investigations. Sample density increases compared to traditional laboratory methods. Save time, worry and effort.

Advantage

Portable

The instrument is smaller in size and lighter in weight, so it is easy to carry.

Industrial resistance touch screen

4.3-inch industrial resistance touch screen, compared with capacitor screen, has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.

User-defined

Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.

High precision

Imported high-performance X-ray tubes and high-resolution detectors, combined with digital multi-channel processing technology, make TrueX handheld ore analyzer with higher analysis accuracy.

GPS system

It can combine the built-in GPS latitude and longitude data and altitude data and import third-party GIS analysis software to build three-dimensional geographical distribution map of element content, so as to quickly assess mineral reserves or geological environmental disaster areas.

Application scenario

手持式矿石分析仪(图1)

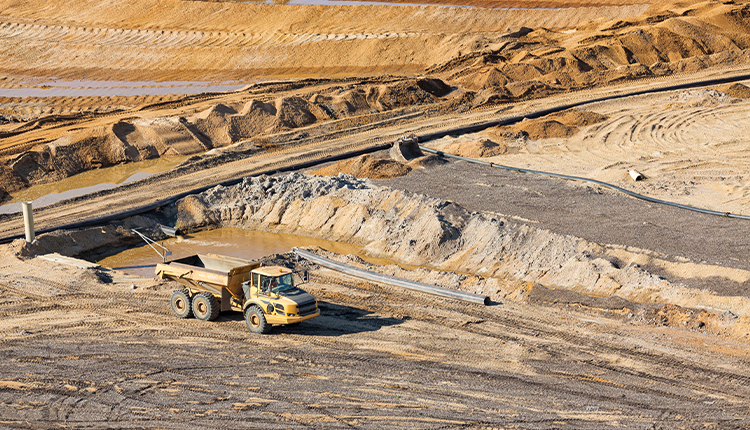

Analysis of mineral processing grade in geological prospecting

手持式矿石分析仪(图2)

Mineral research


手持式矿石分析仪(图3)

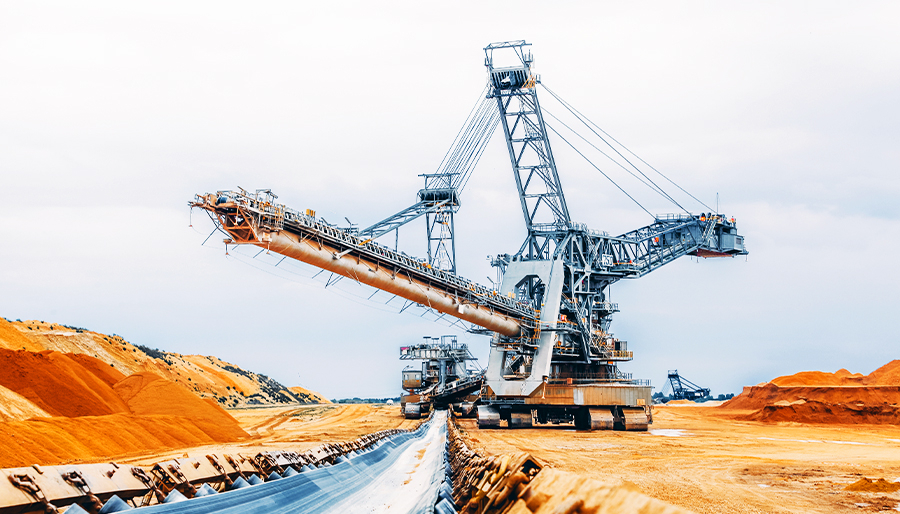

Tailings processing


手持式矿石分析仪(图4)

Slag reuse




Product Parameters

Weight1.5KG

Size

254mm x 79mm x 280 mm (L x W x H)
Excitation source550kV/200μA upper limit, tube pressure tube flow can be adjusted freely, W/Ag/Rh target (optional)
Detector

Si-Pin/SDD

Detection rangeMg—U
Display system

4.3 "industrial grade resistance touch screen

Automatically adjust display brightness according to external environment brightness

Data processing

32GB storage

USB, can connect the device to the Internet, remote setting and maintenance of the instrument

Security

Built-in DoubleBeam™ technology automatically senses samples ahead for enhanced radiation safety and protection

Waterproof, dustproof and shockproof carrying case

LANScientific safety rope

Power system

Intelligent battery with MSBUS, real-time monitoring battery, can directly check the remaining capacity of the battery, the battery complies with the air transport of dangerous goods regulations

A single battery can work for about 8 hours

LanguageChinese, English, etc.
