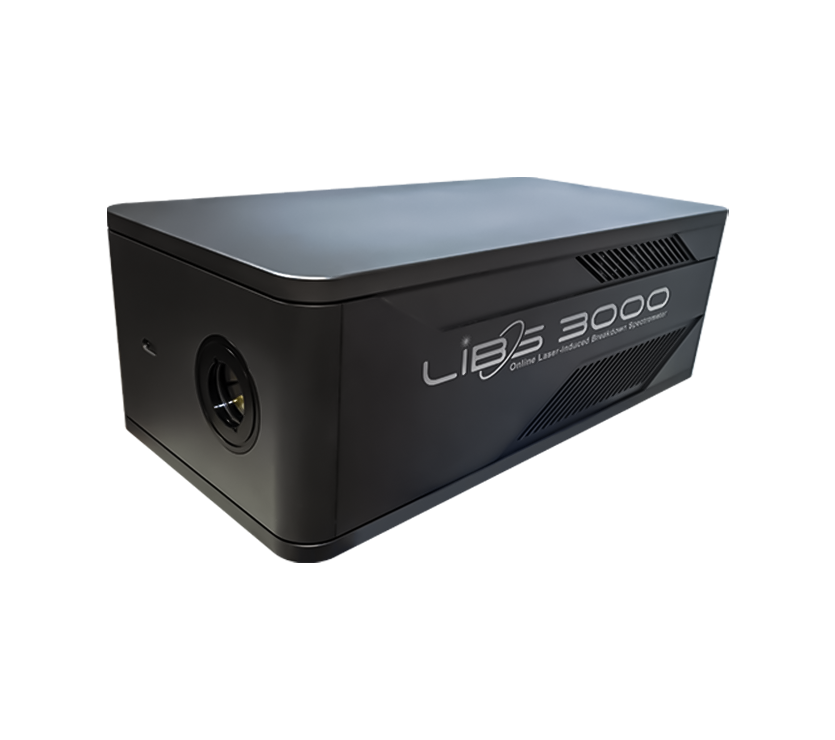

LIBS 3000 Online Laser-Induced Breakdown Spectrometer

LIBS 3000 Online Laser-Induced Breakdown Spectrometer

LIBS 3000 Online Laser-Induced Breakdown Spectrometer is a premium industrial process analysis system, specifically engineered for real-time material composition monitoring and control.

It adopts laser-induced breakdown spectroscopy (LIBS) technology, integrating the detection probe and control cabinet into one unit. Built-in functions include automatic detection distance control, dust and fume protection, automatic temperature regulation, and one-touch local/remote operation.It can perform non-contact, non-destructive rapid composition analysis on various solid and powder samples. With features such as fast analysis speed, high sensitivity, excellent repeatability, and ppm-level detection sensitivity, it has become a powerful assistant for industries like metals and minerals to improve product quality, optimize production processes, and promote industrial automation.


Advantage

Millisecond-level Detection

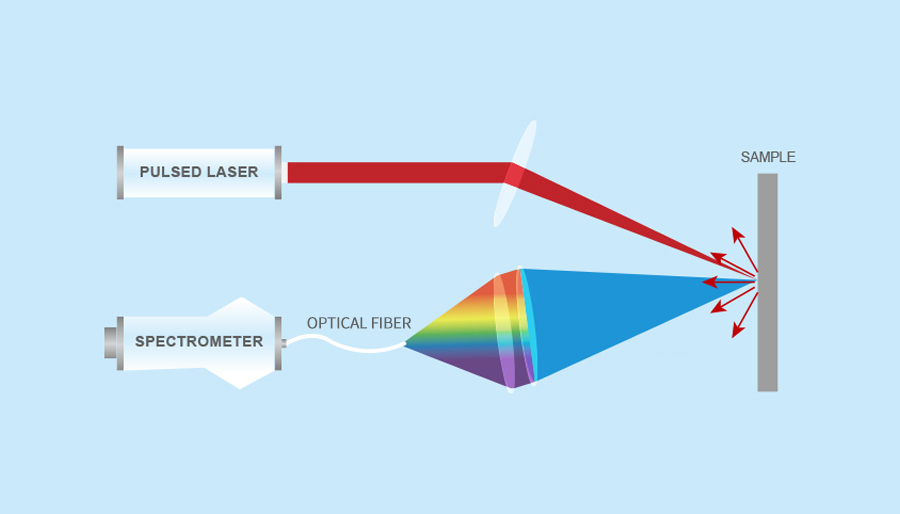

LIBS technology utilizes laser pulses to excite samples and generate plasma, with spectral signals being rapidly captured and analyzed. A single detection cycle is typically completed within 1 millisecond, making it ideal for real-time monitoring requirements in large-scale industrial production.

Multi-element Synchronous Detection

No sample pretreatment required, enabling direct and accurate detection of solid, powder, or molten samples. Capable of simultaneously measuring dozens of major and trace elements, significantly improving analysis efficiency.

Fully Automated Operation Process

The system achieves fully automated control throughout industrial production, reducing manual intervention while enabling real-time monitoring of compositional dynamics. It supports prolonged unmanned operation and automatic feedback of abnormal data, thereby providing precise support for closed-loop production control and full-process quality traceability.

ppm Level LOD

The system employs high-energy high-frequency pulsed excitation light source technology, featuring ultra-low detection limits (ppm-level) and high sensitivity. It enables precise resolution of elemental spectral characteristics, delivering reliable data support for both industrial quality control and scientific research innovation.

Intelligent Analysis Software

Utilizing proprietary core algorithms, it integrates big data models and multi-source databases to achieve intelligent diagnosis and predictive analysis. Detection data is synchronized to the cloud in real time, supporting remote monitoring and automated report generation.

Radiation-free and Safe Operation

The system requires no chemical reagents or consumables, emits no radiation, eliminates sampling needs, and produces no toxic byproducts, achieving fully green detection throughout the entire process in full compliance with environmental standards.


Application scenario

LIBS 3000 Online Laser-Induced Breakdown Spectrometer(图1)

Geological research

LIBS 3000 Online Laser-Induced Breakdown Spectrometer(图2)

Metal materials


LIBS 3000 Online Laser-Induced Breakdown Spectrometer(图3)

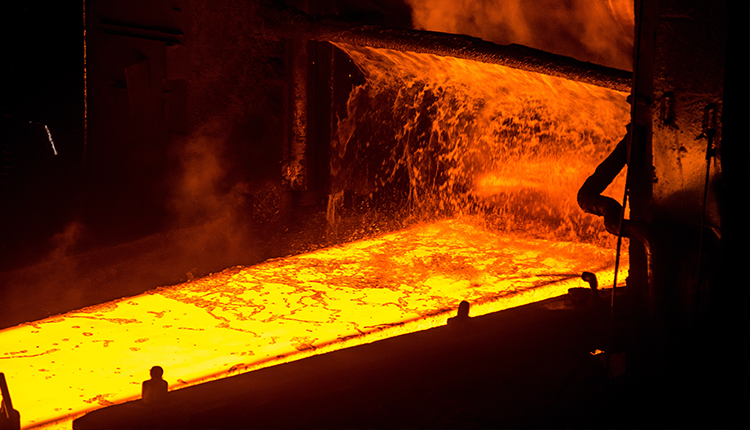

Steel smelting


LIBS 3000 Online Laser-Induced Breakdown Spectrometer(图4)


Coal/coal quality analysis


Laser Composition Online Analyzer(图3)


Environmental monitoring







Product Parameters

PrincipleLaser Induced Breakdown Spectroscopy (LIBS)
Detectable samplesSolid, melt
Detectable ElementsElements with a concentration greater than 0.01% (related to test conditions)
Detectable distance0.2m~1m
Laser wavelength1064nm
Laser safety levelClass 4
Memory card32G
Quantitative accuracyRelative error <10% (depends on testing conditions)
Operation methodLocal control, remote control
Industrial probe size600mm x 290mm x 200mm
Industrial probe weight27kg
Industrial Power SupplyAC220V±10%,200W
Working temperatureStandard Temperature 0~40℃, Recommended Temperature 5~35℃
Maintenance Optical component cleaning
