As a core clinical medical device for oral restoration, the surface microstructure of dental implants directly determines the osseointegration effect, mechanical stability, and clinical service life, making it a key factor for the success of implant restoration. Currently, dental implants are mostly made of pure titanium or titanium alloys, and their surfaces are often subjected to special treatments such as sandblasting and acid etching. The effectiveness of these treatment processes needs to be verified through precise microscopic inspection. In this study, a benchtop scanning electron microscope (SEM) was used, leveraging its core advantages of compact size, convenient operation, and clear imaging, specifically to examine the surface micromorphology of dental implants, with a focus on observing surface treatment structures and fine features. This provides intuitive and reliable microscopic data support for dental implant production quality control, process optimization, and clinical application validation, meeting the routine inspection needs of oral medical device enterprises and research institutions.

I. Testing Background

The clinical safety and efficacy of dental implants critically depend on their surface microstructure (e.g., micron-scale pits and peak-valley distribution formed by sandblasting and acid etching), which must meet the requirements for osteoblast adhesion and growth to lay the foundation for osseointegration. This test focuses on dental implants (made of pure titanium with sandblasted and acid-etched surface treatment). The core requirements are as follows:

1.  Observe the surface micromorphology of the implant to verify the effectiveness of the sandblasting and acid-etching process, confirming the uniformity and dimensional appropriateness of the surface peak-valley and pit distribution.

2.  The testing equipment must be suitable for limited laboratory space, easy to operate, and efficient, meeting the needs for rapid characterization during batch quality inspection of implants and the R&D process, without requiring specialized advanced operational skills.

In traditional microscopic inspection of dental implants, large scanning electron microscopes are bulky, occupy significant space, are complex to operate, and have high testing costs, making them unsuitable for routine batch inspection in enterprises or conventional testing in small to medium-sized research institutions. Conversely, some simple testing devices lack sufficient imaging precision to capture the fine peak-valley structures and minor defects on implant surfaces, leading to potential oversights. The benchtop scanning electron microscope selected for this test effectively addresses the pain points mentioned above. It combines a compact footprint and ease of operation with imaging clarity and analytical precision, making it perfectly suited for the routine microscopic inspection needs of dental implants.

II. Testing Equipment

This test utilizes a benchtop scanning electron microscope, whose core advantages are tailored to the specific scenario of dental implant surface morphology inspection. The key features highlighted are as follows:

① Compact size: The entire unit occupies only 0.3 m² of floor space, allowing flexible placement on standard laboratory benches in dental medical device companies or research institutions. No dedicated space for large equipment is required, making it suitable for batch quality inspection and rapid R&D testing scenarios.

② High-quality imaging: Equipped with a thermionic electron gun and a secondary electron detector (ETD), it delivers high imaging clarity, large depth of field, and excellent contrast. It can clearly reveal micron-scale peak-valley structures, pits, and fine morphological features on the implant surface, meeting the precision requirements for surface inspection of dental implants.

③ Ease of operation: No specialized advanced operational skills are needed. It can quickly enter the testing state after power-up without complex adjustments. Magnification can be flexibly adjusted to suit observation requirements for different regions of the implant surface.

④ High detection efficiency: The time required for surface morphology inspection of a single implant sample is short, enabling rapid testing of batch samples. Additionally, equipment procurement and maintenance costs are moderate, fitting the routine quality control needs of enterprises and the standard testing requirements of research institutions.

III. Application Case

The benchtop scanning electron microscope was started, and the ETD mode was used to perform microscopic scanning of the dental implant surface. The magnification was adjusted (1000× to 5000×), with a focus on observing the surface microstructure resulting from the sandblasting and acid-etching treatment.

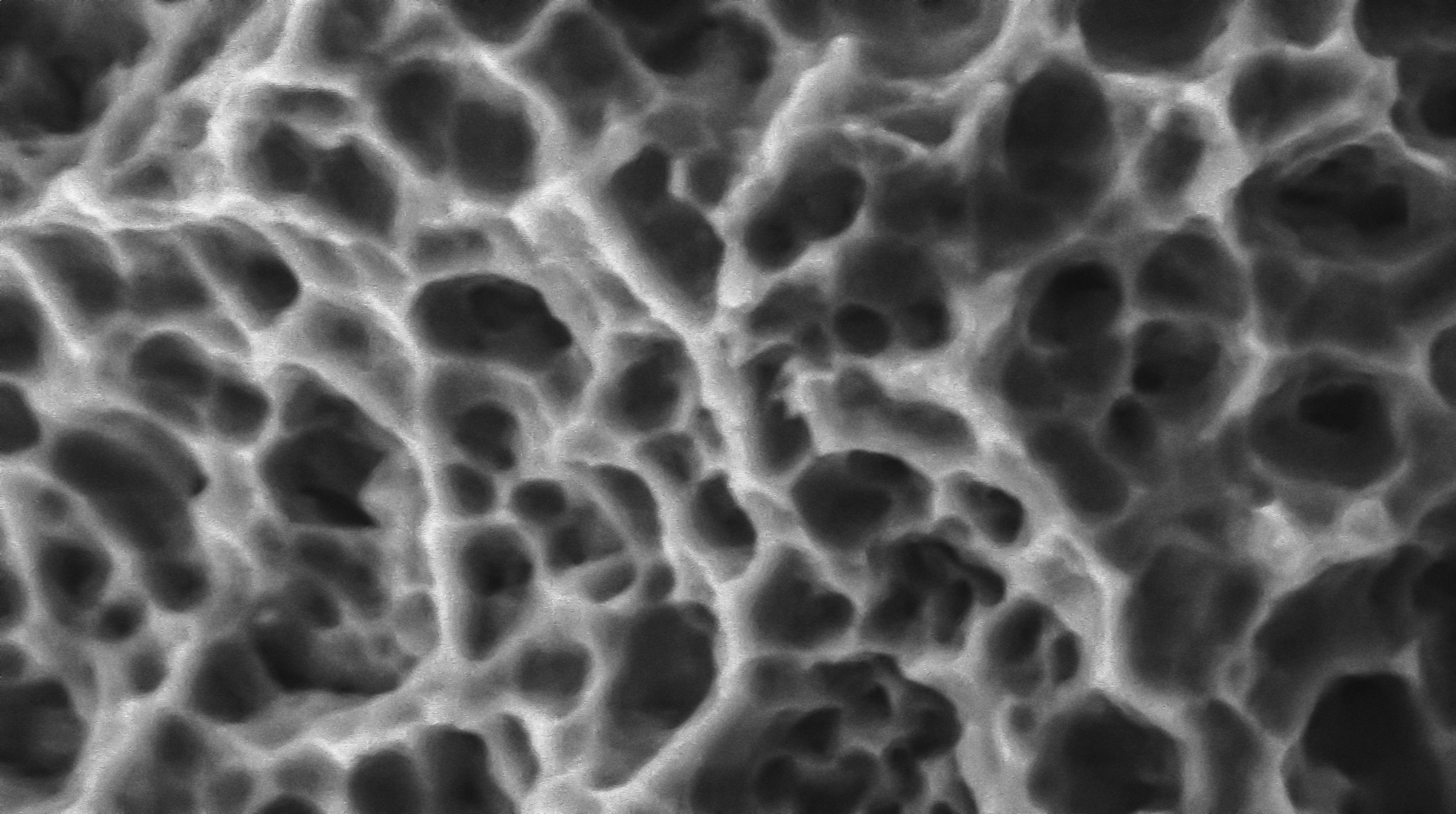

Observation of the Surface Micromorphology of the Implant

The test results are as follows:

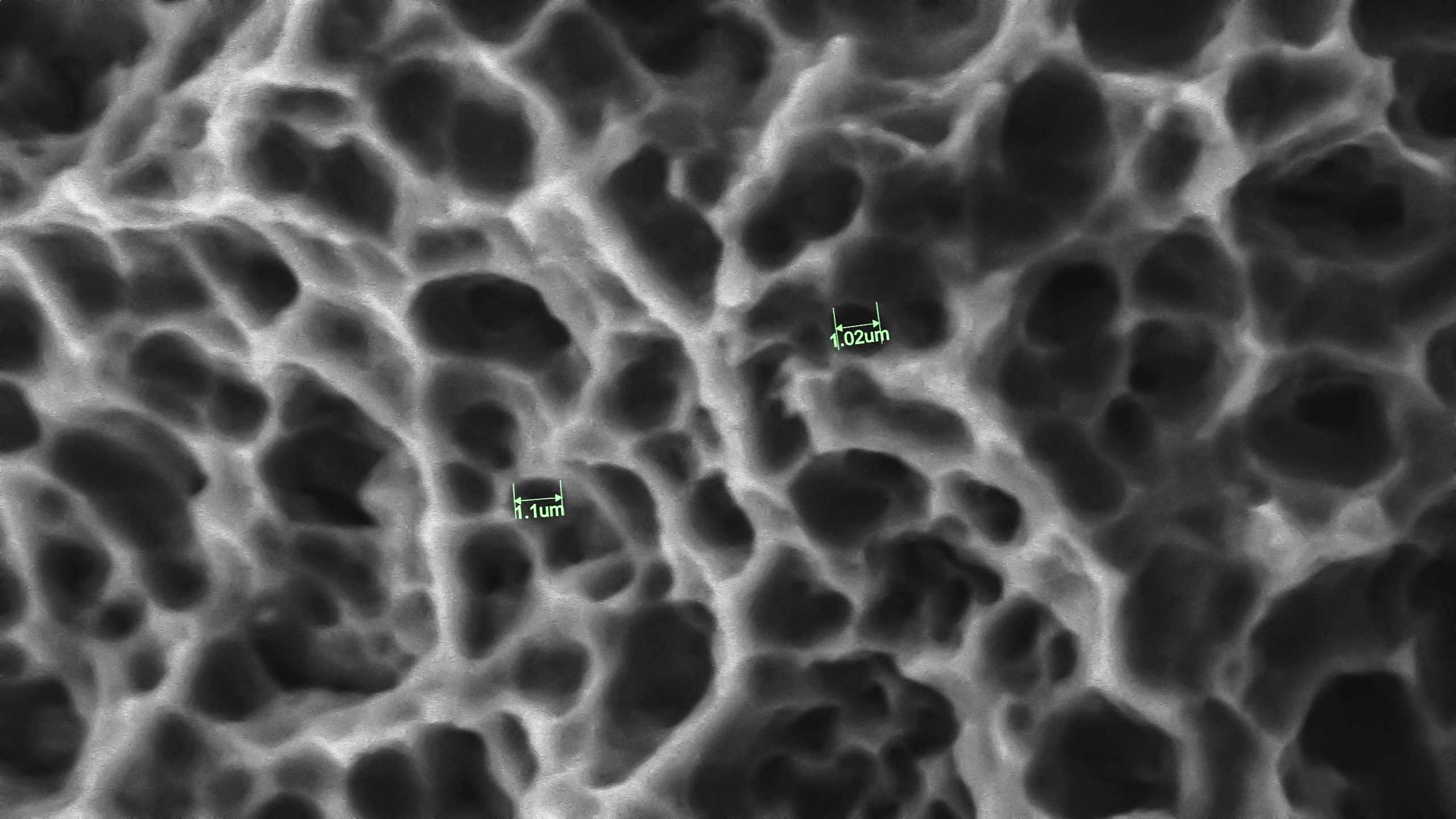

The implant surface exhibits a uniform micron-scale rough structure, forming peaks, valleys, and pits with sizes ranging from 1–3 μm. The distribution is even, with no obvious locally dense or sparse areas. The pit dimensions match the requirements for osteoblast adhesion and growth, effectively providing the necessary "attachment points" for osseointegration and achieving "mechanical interlocking" between the bone and the implant. This verifies the stability and rationality of the sandblasting and acid-etching surface treatment process. Additionally, it was observed that the implant surface is smooth with no noticeable burrs and no signs of extensive oxidation, conforming to the surface quality standards for pure titanium implants and providing a good microscopic foundation for subsequent osseointegration. The ETD mode imaging provides more detailed rendering of surface features, accurately capturing subtle characteristics such as pit edges and surface flatness, further enhancing the accuracy of the surface morphology test results and perfectly meeting the requirements of this test, which focused solely on surface morphology.
