SHINE REX910

SHINE REX910

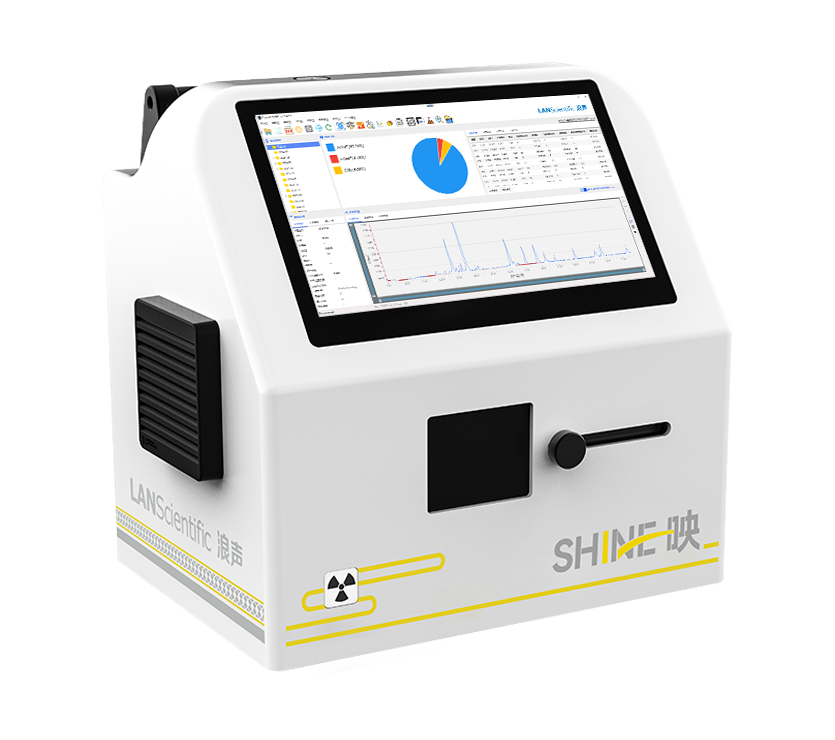

SHINE REX910 portable X-ray diffractometer is designed for rapid on-site analysis. It performs X-ray diffraction on the sample and analyzes its diffraction pattern to obtain information such as the composition of the material, the structure or morphology of the atoms or molecules inside the material (full crystal phase ID information of the main components, secondary components and trace components of the material). It has the advantages of simple sample preparation, no pollution, fast, high measurement accuracy, and get a lot of information about the integrity of the crystal.


SHINE REX910 has a compact design, easy operation and simple sample preparation. Even non-professional users can use it easily. The instrument is equipped with self-developed intelligent analysis software with a user-friendly interface, allowing users to easily analyze and manage data. It is suitable for geological research, field exploration, oil logging and other fields. It is a reliable analysis tool for geologists and exploration teams to quickly obtain material composition and structure information on site.

Advantage

Portability

The instrument adopts a waterproof and dustproof box integrated design, without any mechanical moving parts, light and compact, easy to carry, and can be freely used for laboratory/field scientific research.

Bragg-Brentano Diffraction Geometry

The instrument is equipped with Bragg-Brentano diffraction geometry (BB geometry), which can greatly improve the data quality and signal-to-noise ratio of the diffraction spectrum, making the trace phases in the sample clearly visible, such as quartz, Fe3O4, etc. it is particularly prominent in the analysis and testing of soil minerals and concrete materials.

Wider angle range

Compared with conventional portable XRD, SHINE REX910 has a wider angle range, can obtain more comprehensive crystal structure information of materials, provide more accurate qualitative and quantitative analysis, and achieve a deeper understanding of the material's microstructure.

Intelligent Analysis Software—CrystalX

After obtaining the diffraction data, CrystalX automatically performs phase analysis and gives the percentage of phase components, which greatly reduces the requirements for users. There is no need for manual retrieval, background subtraction, smoothing, or manual peak searching. Just click "Start Test"!

Simplicity

The instrument is operated with one button and automatic detection, no calibration required. The full diffraction spectrum is displayed in real time. The instrument automatically performs phase analysis and generates quantitative results with one click.

Safety

Files can be in EXCEL, PDF and other formats, and users can customize test reports, including diffraction spectra and other sample information.

Localization service

The instrument can achieve high-speed connection with a laptop via USB, Bluetooth, and WIFI to control SHINE REX910 and perform phase analysis in real time.

Save time and resources

Compared to traditional analytical methods, the SHINE REX910 can often provide results more quickly, saving time and resources for law enforcement agencies or third-party laboratories.



Application scenario

SHINE Mineral & Rocks Edition(图1)


Geological exploration/Track ore deposit


SHINE Mineral & Rocks Edition(图2)

Mineral research, grade identification

Lithium ore, beryllium ore grade analysis, etc.

SHINE REX910(图3)

Oil logging


SHINE REX910(图4)


Mineral smelting and manufacture

Titanium dioxide, fluorite, etc.








Product Parameters

XRD resolution0.2°@2θ FWHM
Scope of XRD5-55°2θ
Diffraction GeometryBragg-Brentano Reflection Geometry
DetectorDPPS Detector
X-ray tube targetCluster microfocal spot X-ray tube, Cu or Co, Cr, Fe, Ni, Mo, Ag, W target (optional according to test sample)
X-ray tube voltageMaximum 50kV, 0-50kV adjustable
X ray tube powerMaximum 50W, 0-50W adjustable
XRF detection rangeMg—U
Cooling methodAir Cooling
Sample weightabout 1g
Working temperature0°C-35°C
Storage temperature-10~40℃
Weight18KG
The power supplyLithium ion battery or power adapter
Size360mm x 265mm x 365mm ( LxWxH )
CrystalX analysis software languageChinese, English and other languages
