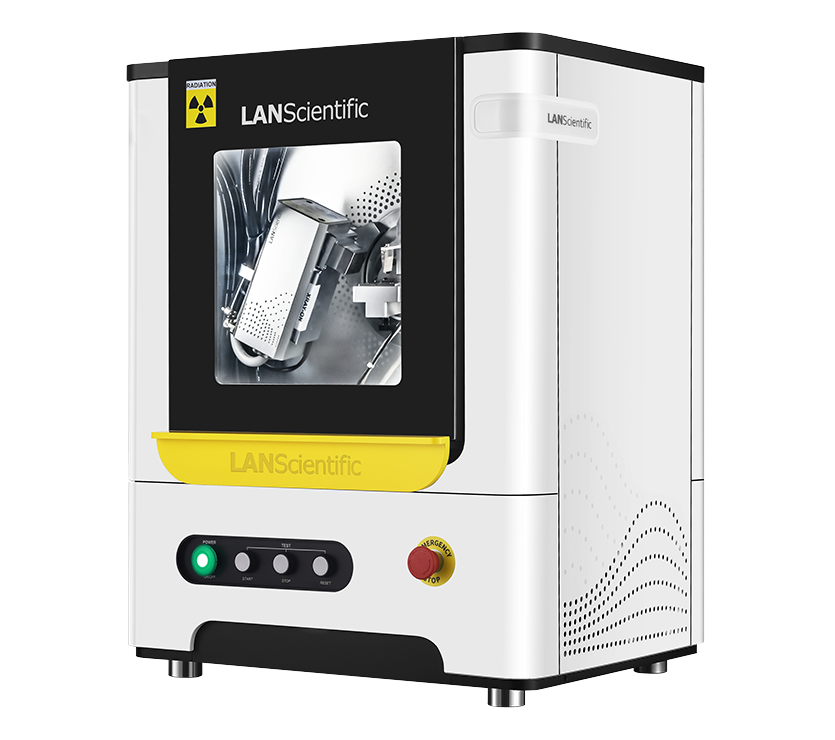

The FRINGE D200 desktop X-ray diffractometer combines advanced X-ray diffraction technology with cutting-edge software, offering users rapid, precise, and reliable material analysis solutions.

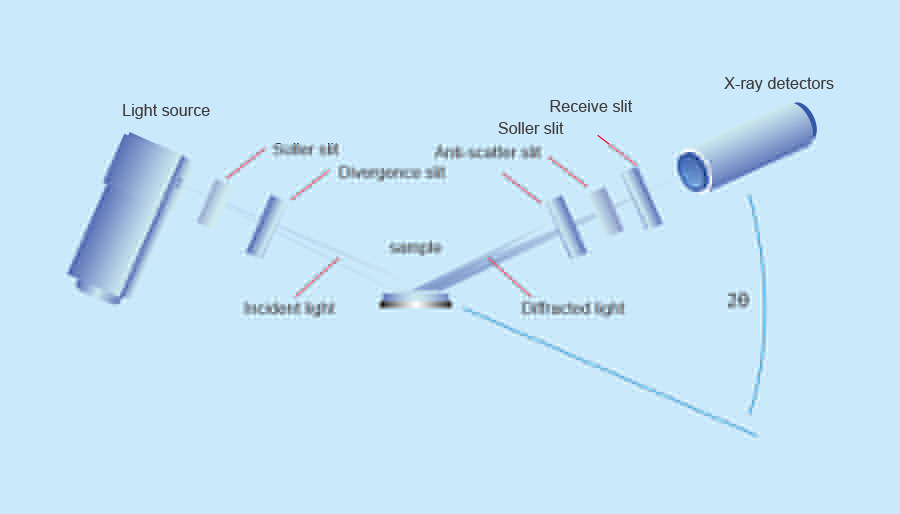

The FRINGE D200 utilizes a high-precision θ-θ vertical goniometer and an Xeye2D detector, ensuring high resolution and accuracy in handling a wide range of samples, including powders, lumps, and thin films. The built-in software, CrystalX, enables one-button operation and automated data analysis, simplifying the experimental process and improving work efficiency. Its compact design, combined with a gas spring lift door, saves space and is easy to operate. With excellent safety performance and multiple protection mechanisms, it ensures the safety of operators.
The FRINGE D200 is suitable for material science, geological exploration, drug discovery, and various other fields. It assists researchers in rapidly obtaining information about the microstructure of materials, promoting scientific innovation and industrial development. Whether for academic research or industrial applications, the FRINGE D200 is your reliable and ideal partner.
Energy materials |
Material science |
Geological exploration |
Scientific research |
| Goniometer | θ-θ vertical goniometer, diffractive circle radius 150mm |
| 2θ Measuring range | -3° - +150° |
| Precision | The deviation of ＜±0.02° in the full spectrum |
| FWHM | <0.04°2θ |
| Sola slit | The integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms |
| X-Ray tube | Cermet X-Ray tube, with maximum power of 2.2KW, focus: 1mm x 10 mm, default configuration cu target, optional Cu target |
| Detector | Xeye2D |
| High Voltage Generator Power | The maximum output power of the high voltage generator is 1200W |
| Size | 580mm x 450mm x 680mm（L×W×H） |
| Weight | About 120 KG (depending on the actual configuration) |
| Power Supply | 220V±10V, 50Hz |
| Heat dissipation | FRING D200 has a built-in water circulation cooling system, no need to add additional chillers. The software can display the water temperature, flow rate and other information in the X-ray tube in real time |
| Interface | The compact home wall plug provides power, and the USB interface connects to the PC for controlling the XRD |
| Air source | A 2-way air supply interface is available for in-situ analysis or atmosphere protection |
| Security | The FRINGE D200 has an air spring large window lift door, which can observe the in-situ analysis process without dead angle, and can effectively shield X-Rays. It has a protection and safety interlock device that automatically cuts off during the test process. The operation interface has the function of closing the sample compartment |
| Cloud service capabilities | FRINGE D200 uses a synchronizable mobile APP service to support card management of diffraction data and access to knowledge management systems |
| CrystalX software | LANScientific has developed a special crystal analysis software CrystalX for FRINGE D200. After obtaining diffraction data, CrystalX automatically conduct phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, no manual retrieval, no need to buckle the background, no need to smooth, no need to manually peak, just need to click "start testing", the rest to the CrystalX software |
