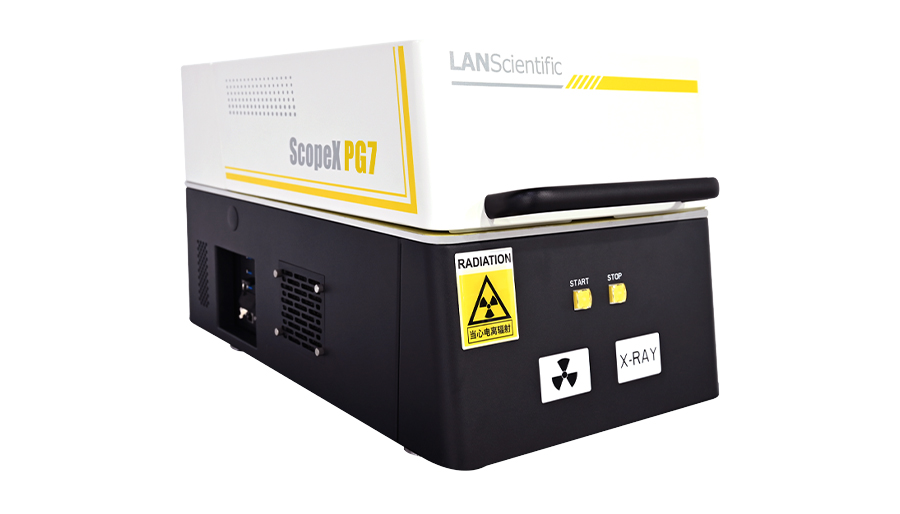

ScopeX PG7 is a flagship precious metal analyzer launched by LANScientific. Adopting integrated design, built-in industrial control computer, equipped with large sample chamber, X-Y platform, it is suitable for samples in different forms. The user-friendly interface and easy operation enable non-professionals to easily carry out daily analysis, quickly identify the precious metal content, authenticity of gold plating and adulterated samples.
With the characteristics of fast analysis speed, good stability, high accuracy and wide scope of application, ScopeX PG7 is an ideal tool for jewelry factory, gold and silver purity marking center, gold refinery, smelter, testing laboratory and quality inspection institution.
Precious metal XRF analyzer is a key tool in jewelry factory to conduct accurate precious metal composition analysis on incoming and recycling material. For incoming materials, it verifies whether materials meet certain production standards. For recycled materials, the gold analyzer is used to quickly assess the purity and composition, which is crucial to determine its reprocessing value and develop relevant treatment strategies. |
Precious metal analyzer can monitor metal components of raw materials and semi-finished products at all stages of jewelry manufacturing to ensure the accuracy of alloy ratio. For instance, to quickly analyze the purity of metals such as gold, silver, and platinum during smelting process, helping adjust the smelting parameters to reach settled alloy ratio. |
Precious metal analyzer can be used to test precious metal composition during quality control and finished product inspection process, in order to insure the fineness and purity satisfy certain standards. For example, to analyze 18K, 24K, platinum and other jewelries precisely, ensuring the consistency of product labels and actual compositions. |
Compared with traditional chemical analysis methods, XRF precious metal analyzer can complete tests within minutes, significantly shortening the quality control cycle. Using the device greatly improves efficiency of quality inspection process, reduces human error, and ensures the reliability, consistency and compliance of product quality. |
| Type | Benchtop |
| Weight | 41KG |
| Size | 330×580×360mm（W×D×H） |
| Sample chamber size | 320×480×130mm（W×D×H） |
| Detection range | Al-U |
| Language | Multi languages including Chinese, English |
| Detector | SDD detector |
| Optical structure | Vertical |
| Tube window | Glass window |
| Collimator | Equipped with 1.5mm collimator to reduce background noise,improve resolution and accuracy. |
| Accuracy | ±0.01%（9999 gold） |
| Built-in computer | Included |
| Computer parameter | I5 quad-core + win11 |
| Data printing | Bluetooth printer |
| Algorithm | ScopeX PG7 adopts curve calibration method and fundamental parameter(FP) method to remove background difference, reduce error and improve test accuracy. |
| One-click test button | ‘Place the sample- -close the top cover- one-click test- -view the results’ operation is simple for non-technical personnel to analyze by themselves. |
| X-Y axis platform | The X-Y axis platform can adapt to samples of different sizes and shapes, providing greater flexibility and making the measurement process more efficient and accurate. |
| Camera | The built-in 5-megapixel HD CMOS color camera can not only provide users with intuitive sample positioning and image recording function, but also ensure that the X-ray accurately illuminate to the target area, improving the operation accuracy. |
| Power supply | AC 220V±5V 50Hz(subject to change in different regions) |
