FRINGE Family (Benchtop)

FRINGE C1600

A good helper for phase analysis

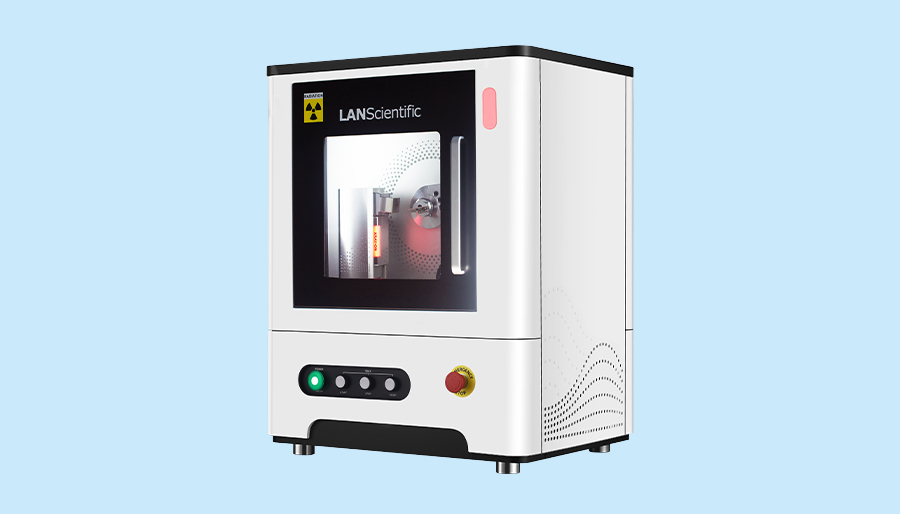

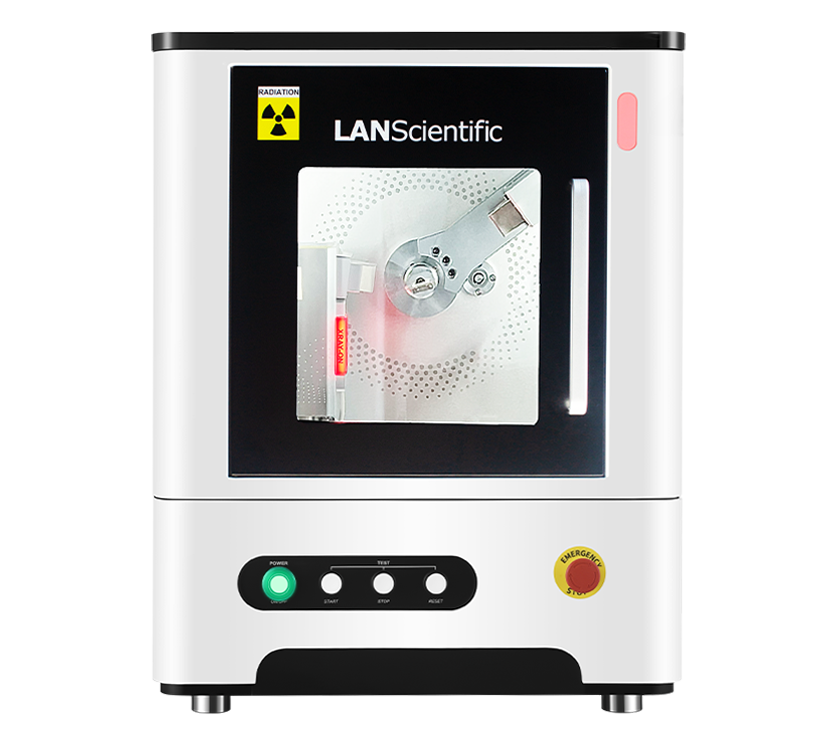

FRINGE C1600

X-Ray diffraction uses the diffraction phenomenon of X-Ray in the crystal to obtain the X-Ray signal characteristics after diffraction, and gets the diffraction pattern after processing. It is a research method to obtain information such as the composition of the material, the structure or morphology of the atoms or molecules inside the material by X-Ray diffraction and analysis of its diffraction pattern.

FRINGE C1600 is a multi-function X-Ray diffraction analyzer developed by the company, which is ideal for analytical applications in many fields such as materials research, biomedicine, minerals, plastics, and semiconductors. FRINGE C1600 can quickly perform the following analysis on samples in powder, bulk or film form:

Phase qualitative and quantitative

Determination of crystal structure and orientation

Crystallinity measurement

Grain sizing

Measurement of macroscopic and microscopic stresses

Measurement of lattice parameters

......


Advantage

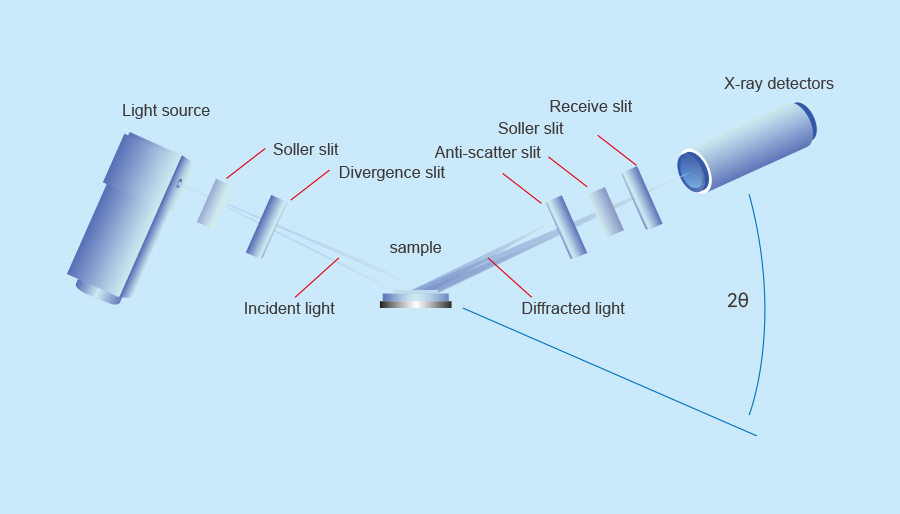

θ-2θ linkage goniometer system

Patented new θ-2θ linkage goniometer system, single-axis drive mechanism. It is precise and simple, with excellent performance.

Multichannel analysis system

The instrument adopts digital multichannel analysis technology. The diffraction peak and fluorescence interference can be distinguished without monochromator, and the diffraction intensity can be improved.

Safety

It has automatic cutting protection device in the test process, safety linkage lock device, the sample chamber is fully enclosed after closing, and the operation interface has the function of closing the sample chamber.

XRD for everyone

After obtaining diffraction data, CrystalX automatically carry out phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, just need to click "start testing", the rest to the CrystalX software.

Integrated sola slits

The integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE C1600  desktop XRD to be installed on in-vehicle laboratory platforms.

DPPC detector

Digital multi-channel analysis technology can distinguish diffraction peak and fluorescence interference without monochromator, and improve diffraction intensity.



Application scenario

FRINGE CLASS(图1)


Titanium dioxide



FRINGE C1600(图2)


Polymer material


FRINGE C1600(图3)

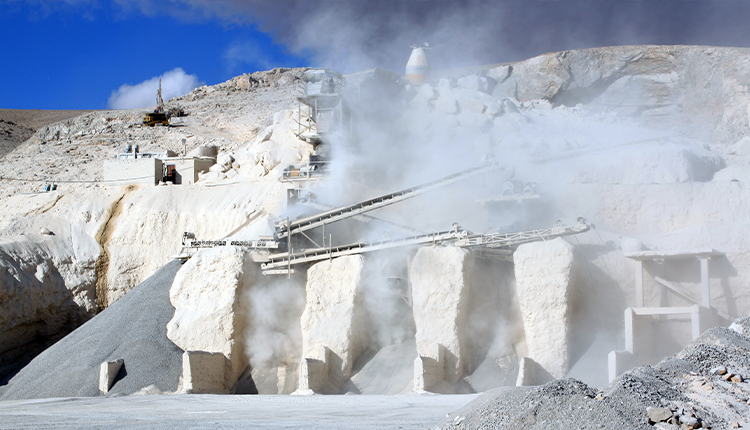

Cement


FRINGE C1600(图4)


Industrial ceramic material


FRINGE C1600(图5)

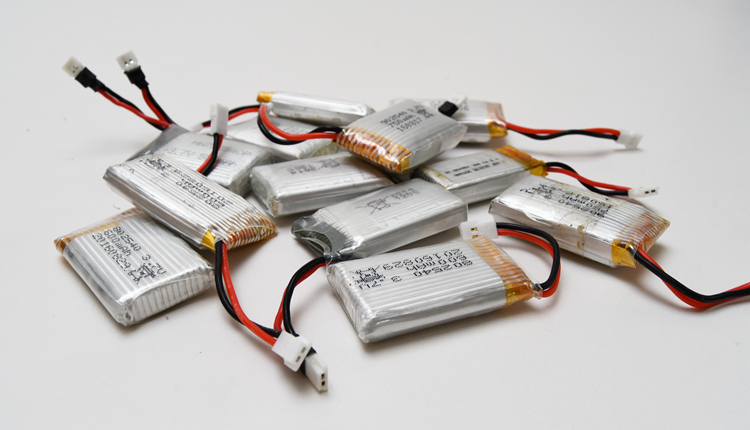

Lithium battery industry

FRINGE C1600(图6)


Biopharma

FRINGE C1600(图7)


Other fields








Product Parameters

Goniometerθ-2θ linkage vertical goniometer, diffractive circle radius 150mm
Angle measuring range of Angle meter-3° - +150°
PrecisionThe  deviation of <±0.02° in the full spectrum
FWHM<0.04°2θ
Sola slitThe integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms
X-Ray TubeCermet X-ray tube, with maximum power of 2.2KW, focus: 1 x 10 mm, default configuration cu target, optional Co, Cr, Mo target
High voltage generator power1200W, maximum tube voltage 40KV, maximum tube current 30mA.
Size580 x 450x 680mm(L×W×H)
Weight120KG
Power supply220V±10V, 50Hz, the whole power is 2000W
Heat dissipation

FRINGE C1600  uses an external water circulation cooling system to cool the surging power powerfully

DetectorDPPC detector
InterfaceThe compact home wall plug provides power, and the USB interface connects to the PC for controlling the XRD
Air sourceA 2-way air supply interface is available for in-situ analysis or atmosphere protection

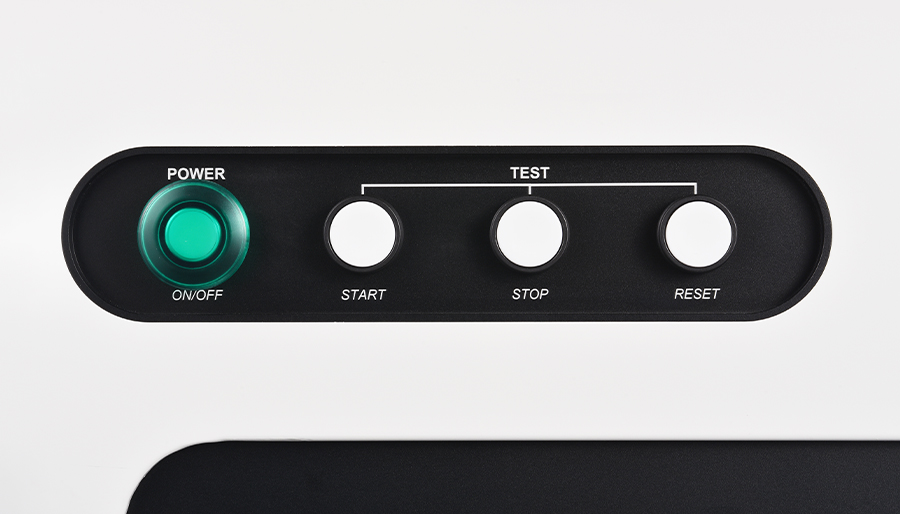

SecurityThe FRINGE C1600 has an air spring large window lift door, which can observe the in-situ analysis process without dead angle, and can effectively shield X-rays. It has a protection and safety interlock device that automatically cuts off during the test process. The operation interface has the function of closing the sample compartment
Cloud service capabilitiesFRINGE C1600 uses a synchronizable mobile APP service to support card management of diffraction data and access to knowledge management systems
CrystalX softwareLANScientific has developed a special crystal analysis software CrystalX for FRINGE C1600. After obtaining diffraction data, CrystalX automatically conduct phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, no manual retrieval, no need to buckle the background, no need to smooth, no need to manually peak, just need to click "start testing", the rest to the CrystalX software
