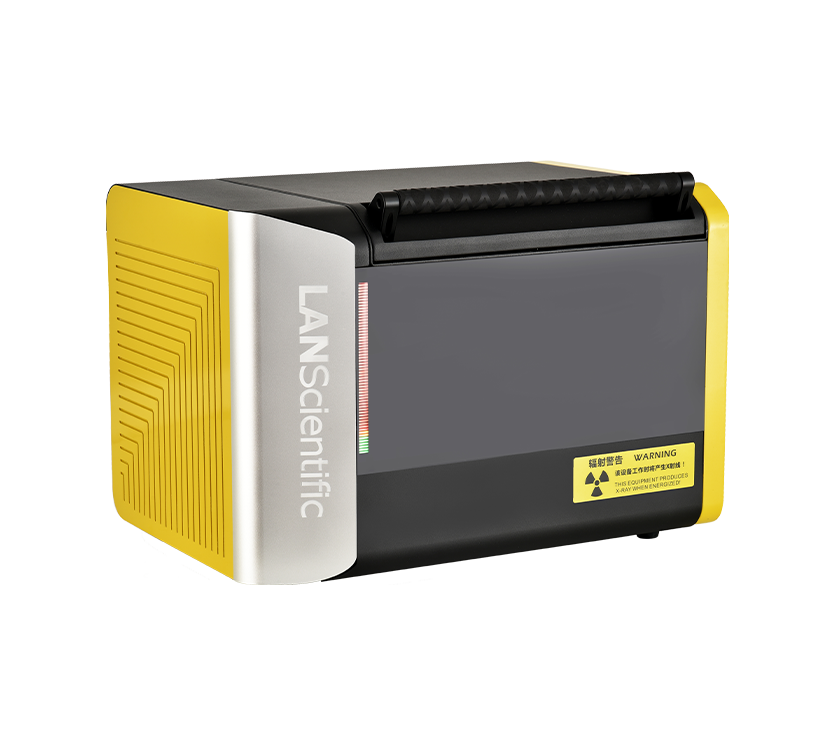

ScopeX CS Family (Benchtop With Vacuum/ Helium Model)

Copper Alloy Analyzer

Copper Alloy Analyzer

The copper alloy industry refers to the production and application industry that is based on copper and adds other elements such as zinc, tin, aluminum, nickel, etc. to form alloy materials with specific properties.Copper alloys have been widely used in many fields due to their excellent electrical conductivity, thermal conductivity, corrosion resistance and good mechanical properties. These fields include electronics and electrical, construction, automobile, aerospace, military industry, machinery manufacturing, etc. With the advancement of science and technology and the development of industry, the performance requirements for copper alloys are getting higher and higher, which prompts the copper alloy industry to continue to carry out material research and development and process innovation.


ScopeX copper alloy special analyzer is a spectrometer specially designed by LANScientific for rapid analysis of copper alloys. It has the advantages of high precision, wide range of analyzable elements, simple and fast testing, etc. It can quickly analyze copper alloys.Instruments are not only used for product quality control, but also for research and development of new materials, monitoring of production processes, and waste recycling. Through accurate composition analysis, it helps manufacturers ensure that products meet standard requirements, while also promoting technological progress and sustainable development of the copper alloy industry.





Advantage

Data transmission

USB, WIFI, wireless Bluetooth and other methods for data transmission.

A variety of collimator, filter automatic switch

5mm, 3mm, 1mm, 0.5mm four kinds of collimators, collimator and filter can be automatically switched by the software, save time and effort, through the appropriate collimator and filter or filter can improve the detection accuracy and sensitivity.

User-defined

The file can be in EXCEL, PDF and other formats. Users can customize the test report, including company logo, spectral spectrum and other sample information.

Safety

Fully enclosed metal chassis and leakage protection switch, more scientific design, hardware and software coordination, mechanical and electrical linkage, radiation safety in line with international standard.

Application scenario

铜合金专用分析仪(图1)

Recovery and sorting of waste copper alloy


铜合金专用分析仪(图2)

Quality control and assurance of copper alloy

铜合金专用分析仪(图3)

Identification of copper alloy raw material/grades

Product parameter

Range of elementNa—U
Sample room size365×300×78mm(L×W×H)
Maximum sample weight0-2.5KG
Cover openAutomatic
Mainframe size570×400×400mm
Weight47KG
X-ray tubeHigh power side window X-ray tube,50W, pipe pressure pipe flow can be adjusted freely, W/Ag/Rh target (optional)
VoltageUp to 50kV
CurrentMaximum 1mA
Cooling methodAir cooling
TypeSi-pin/SDD(Optional)
Sample Observation5 megapixel HD industrial camera
CPU is I3-7100 with the same main frequency or above
RAMDDR4 4 GB memory or above
ROM1TB HDD or 256GB SSD or above
OSWindows 11
Temperature conditions10°C~35°C
Relative humidity40%-70% No condensation
Power supply220VAC
Rated power100W
