FRINGE Family (Benchtop)

FRINGE

Infinite Fringe, make the world more clear
FRINGE

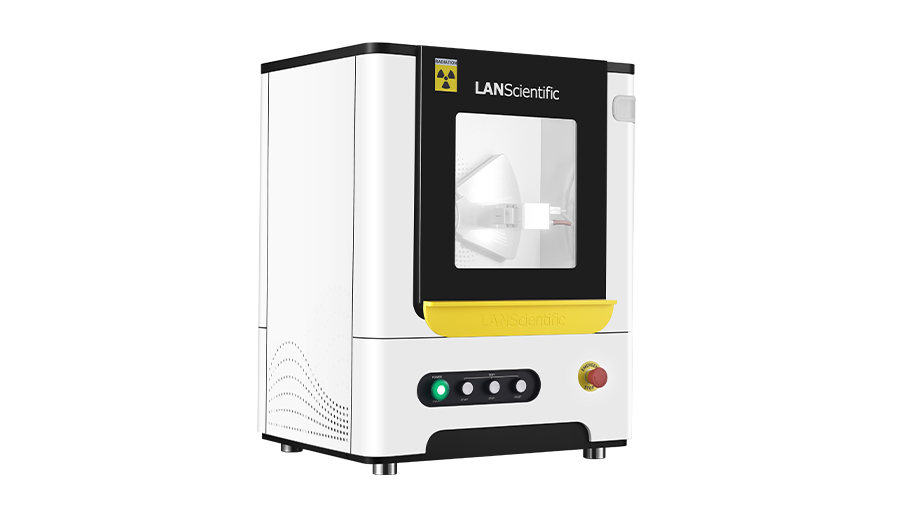

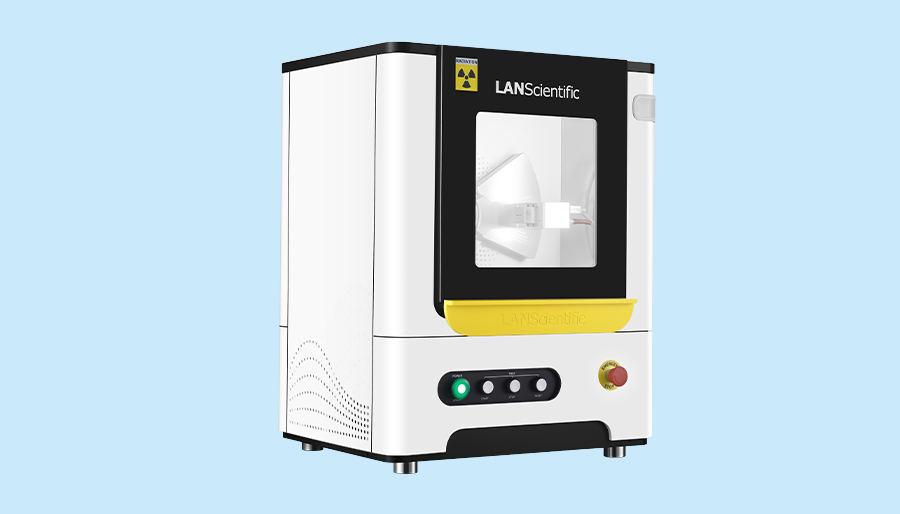

FRINGE Benchtop X-ray diffractometer is a desktop X-ray diffractometer independently developed by LANScientific Co., LTD., which integrates XRD, XRF, computer software and other technologies. It can quickly conduct qualitative and quantitative analysis, crystal structure analysis, material structure analysis and crystallinity determination for powder, block or thin film and other forms of samples. It has the characteristics of high precision, high accuracy, good stability, wide application range, simple operation and intelligence. For materials research, universities and research institutes, building materials, metals, minerals, plastics, pharmaceuticals, semiconductors and many other fields provide high precision analysis.

Advantage

Air spring large window lift door

Air spring large window lift door not only save desktop space,but also  suitable for each desk,and effectively improve space utilization rate.

Built-in water circulation cooling system

FRINGE built-in water circulation cooling system, no need to add additional chiller. Software can real-time display the X-ray tube water temperature, flow, flow rate and other information.

Safety

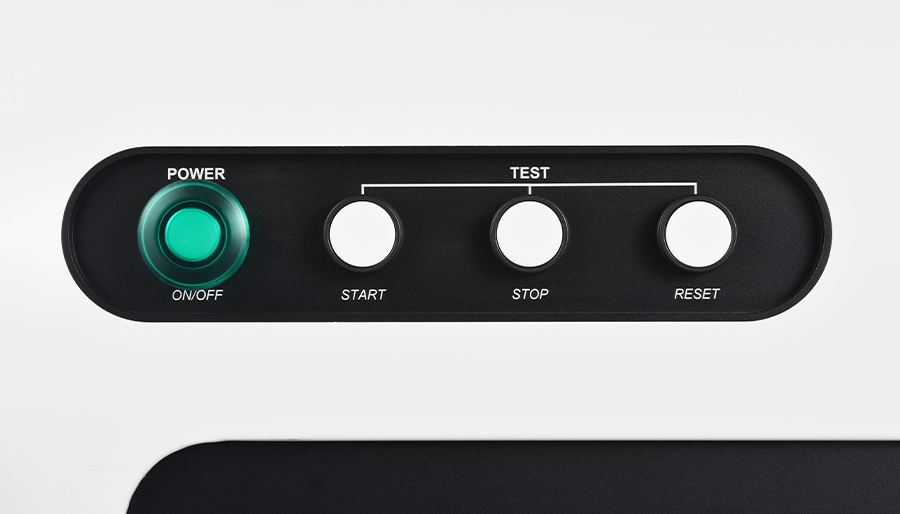

It has automatic cutting protection device in the test process, safety linkage lock device, the sample chamber is fully enclosed after closing, and the operation interface has the function of closing the sample chamber.

XRD for everyone

After obtaining diffraction data, CrystalX automatically carry out phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, just need to click "start testing", the rest to the CrystalX software.

Integrated sola slits

The integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms.

DPPC detector

DPPC detector (digital pulse processing counting detector), counting throughput ≥ 1×107CPS, DPPC detector can efficiently suppress sample fluorescence, even for strong fluorescent samples. It can also provide excellent peak-to-back ratio, without the use of secondary monochromator. DPPC detector provides energy dispersion spectral data while providing diffraction data.

Product parameter

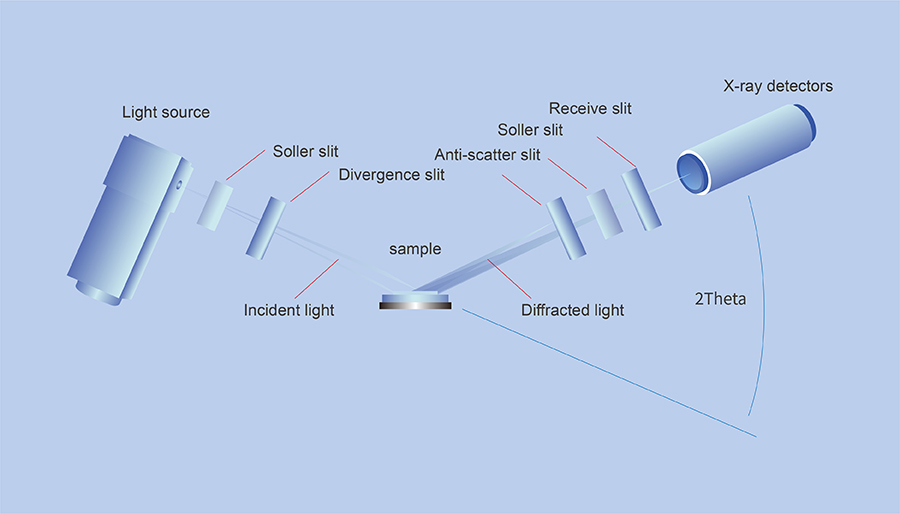

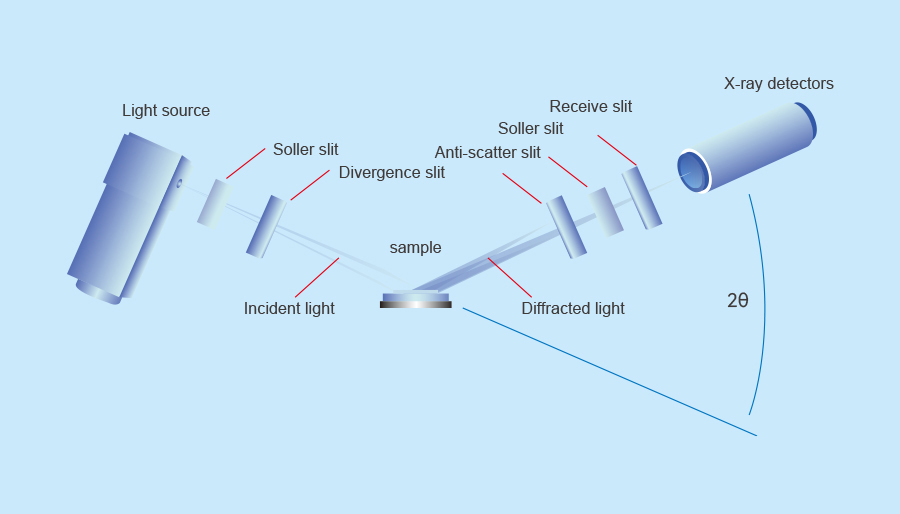

Goniometerθ-θ vertical goniometer, diffractive circle radius 150mm
Angle measuring range of Angle meter-3° - +150°
PrecisionThe  deviation of <±0.02° in the full spectrum
FWHM<0.04°2θ
Sola slitThe integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms
X-Ray TubeCermet X-ray tube,  with maximum power of 2.2KW, focus: 1 x 10 mm, default configuration cu target, optional Co, Cr, Mo target
High Voltage Generator PowerThe maximum output power of the high voltage generator is 600W
Size580 x 450x 680mm(L×W×H)
Weight120KG
Power Supply220V±10V, 50Hz, the whole power is 1000W
Heat dissipationFRING has a built-in water circulation cooling system, no need to add additional chillers. The software can display the water temperature, flow rate and other information in the X-ray tube in real time
DetectorDPPC detector (digital pulse processing counting detector), counting throughput ≥ 1×107CPS

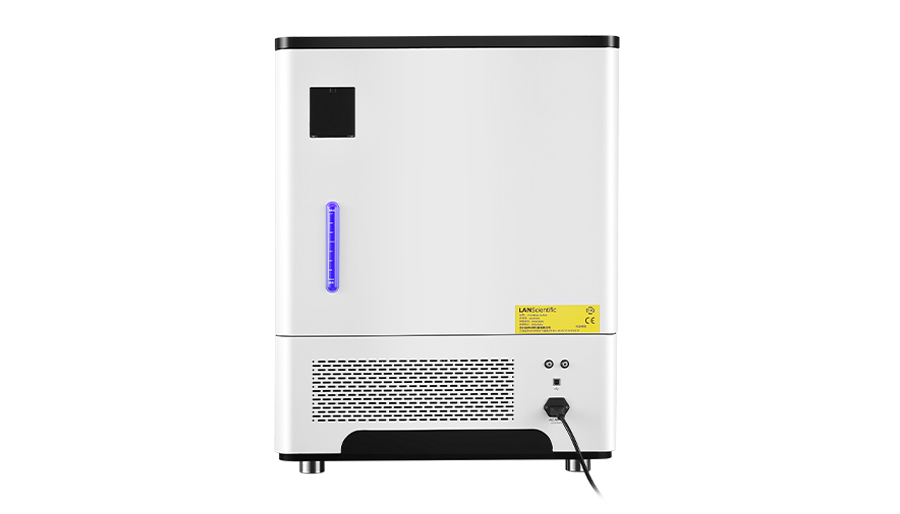

InterfaceThe compact home wall plug provides power, and the USB interface connects to the PC for controlling the XRD
Air sourceA 2-way air supply interface is available for in-situ analysis or atmosphere protection
SecurityThe FRINGE has an air spring large window lift door, which can observe the in-situ analysis process without dead angle, and can effectively shield X-rays. It has a protection and safety interlock device that automatically cuts off during the test process. The operation interface has the function of closing the sample compartment
Cloud service capabilitiesFRINGE uses a synchronizable mobile APP service to support card management of diffraction data and access to knowledge management systems
CrystalX softwareLANScientific has developed a special crystal analysis software CrystalX for FRINGE. After obtaining diffraction data, CrystalX automatically conduct phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, no manual retrieval, no need to buckle the background, no need to smooth, no need to manually peak, just need to click "start testing", the rest to the CrystalX software
