LIBS 5000 Online Laser-Induced Breakdown Spectrometer

LIBS 5000 Online Laser-Induced Breakdown Spectrometer

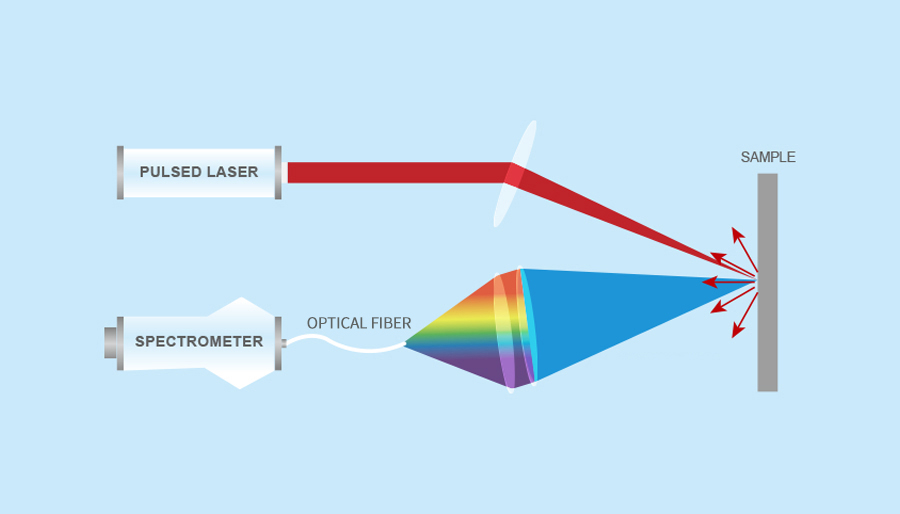

LIBS 5000 Online Laser-Induced Breakdown Spectrometer is an intelligent analysis system specifically designed for liquid composition detection. Utilizing Laser-Induced Breakdown Spectroscopy (LIBS) technology as its core, it enables precise quantitative monitoring of trace elements in liquids.The equipment features an integrated design that deeply combines corrosion-resistant detection probes with intelligent control terminals, paired with a remote cloud data management platform. This allows stable operation in harsh environments including strong corrosion, high salinity, and complex flow conditions.


For liquid samples such as brines and melts, the analyzer employs non-contact spectral excitation technology, enabling rapid qualitative and quantitative analysis of key elements without any sample pretreatment.


LIBS 5000 has become a critical industrial asset with its high sensitivity, rapid response, and real-time analysis capabilities, driving enhanced resource utilization, optimized production processes, and intelligent decision-making to power high-quality development across related industries.

Advantage

Real-time Online Analysis

The system delivers rapid analysis, obtaining composition data within 1 second per measurement, significantly enhancing detection efficiency. This makes it ideal for applications requiring instant feedback, such as steel smelting and coal quality monitoring.

Second-level Analysis

A single laser pulse simultaneously measures multiple key elements, covering major industrial composition requirements, providing robust support for comprehensive brine component analysis.

Non-contact Measurement

The system performs direct analysis of flowing liquids through remote laser excitation, eliminating sample contamination and manual errors. It adapts to complex working conditions including high temperatures, high salinity, and strong corrosion, ensuring production continuity and data authenticity while guaranteeing operator safety.

Multi-element Synchronous Detection

It enables direct real-time detection of both flowing and static liquids without sample pretreatment, coupled with real-time data streaming capabilities, significantly enhancing production efficiency by replacing traditional offline laboratory analysis.

High Sensitivity and Accuracy

Equipped with advanced LIBS technology, the system delivers ppm-level element detection capability, enabling precise measurement of elemental composition to provide reliable data for production control and quality inspection.

User-customized Report

Users can customize test reports by incorporating company logos, spectral graphs, and other sample information, enhancing both the personalization and professionalism of the reports.

Green and Safe

The detection process requires no chemical reagents, minimizing environmental impact. Featuring explosion-proof, dust-resistant, and waterproof designs, the equipment meets industrial-grade safety standards to ensure both personnel and production safety.



Application scenario

LIBS 5000 Online Laser-Induced Breakdown Spectrometer(图1)

Brine Analysis

LIBS 5000 Online Laser-Induced Breakdown Spectrometer(图2)

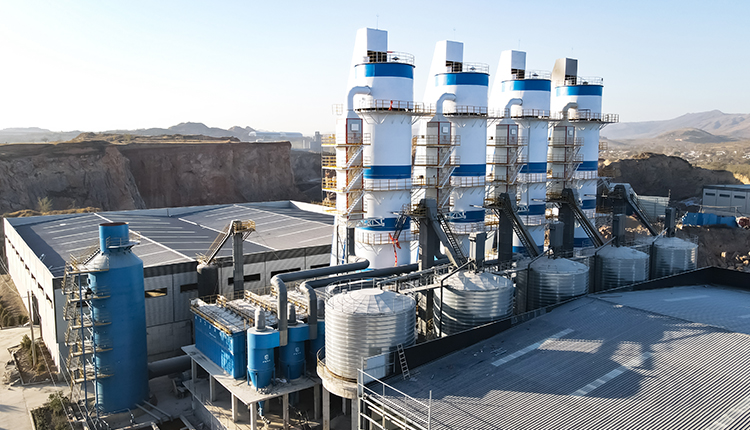

MChemical/Industrial Production


LIBS 5000 Online Laser-Induced Breakdown Spectrometer(图3)

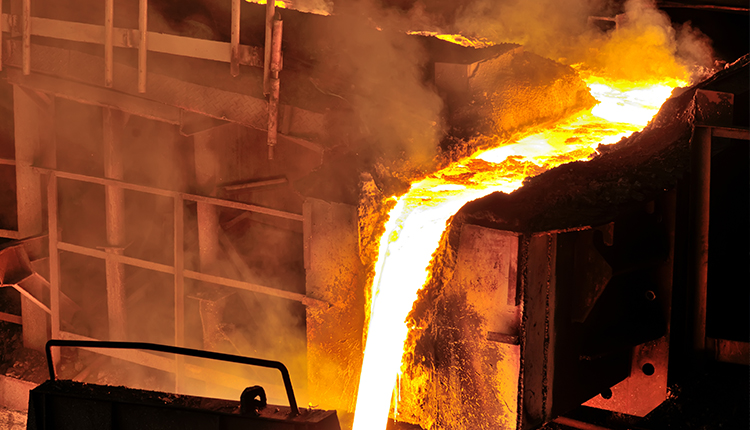

Metallurgical Processes


LIBS 5000 Online Laser-Induced Breakdown Spectrometer(图4)


Environmental Monitoring










Product Parameters

PrincipleLaser Induced Breakdown Spectroscopy (LIBS)
Detectable samplesLiquid
Detectable ElementsElements with a concentration greater than 0.01% (related to test conditions)
Detectable distance1m~5m
Laser wavelength1064nm
Laser safety levelClass 4
Memory card32G
Quantitative accuracyRelative error <10% (depends on testing conditions)
Operation methodLocal control, remote control
Industrial probe size290mm x 560mm 176mm
Industrial probe weight10kg
Power supply chassis dimension530mm x  430mm 188mm
Power supply chassis weight17.6kg
Industrial Power SupplyAC220V±10%,600W
Working temperatureStandard Temperature 0~40℃, Recommended Temperature 5~35℃
Detection Auxiliary ConditionsCooling gas (compressed air >0.6 MPa), cooling water (circulating water)
Maintenance Optical component cleaning
