Handheld LIBS Laser Carbon Analyzer

Know your carbon content instantly,result is accurate and reliable.

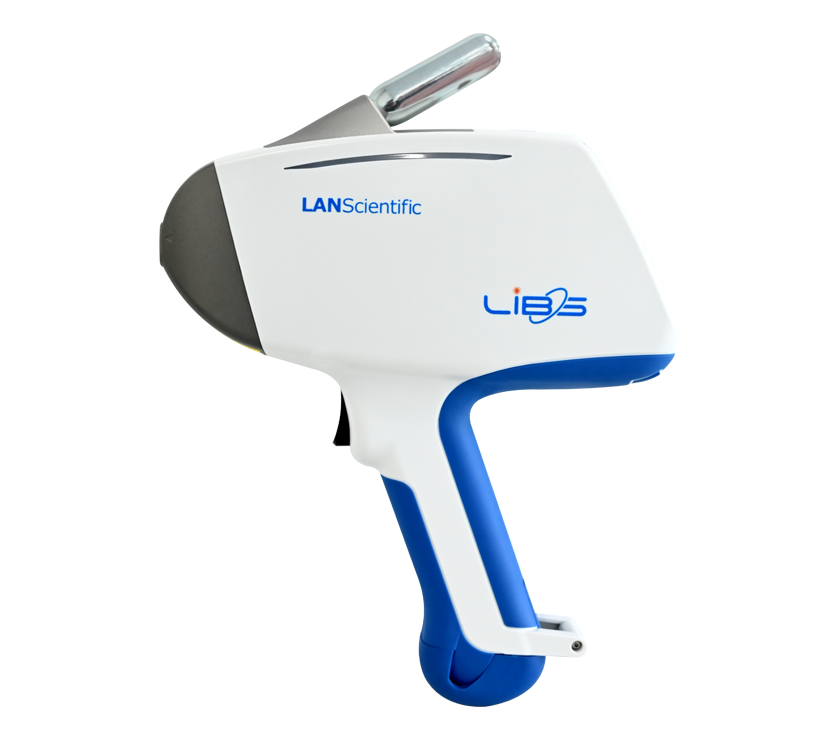

Handheld LIBS Laser Carbon Analyzer

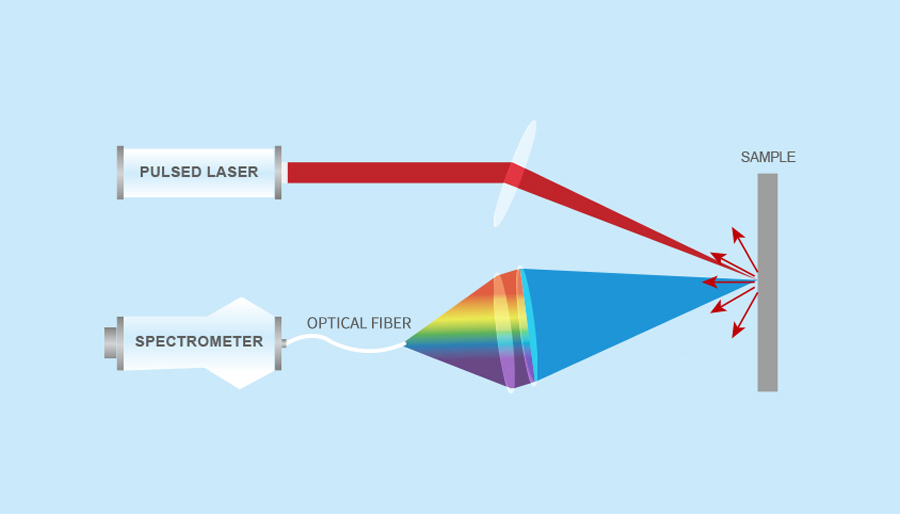

Handheld LIBS laser carbon analyzer is an advanced spectral analysis tool, integrated with laser-induced breakdown technology and spectral analysis methods. It is light and portable and with the characteristics of easy to operate. Fast analysis speed, no need for sample preparation, low destructiveness, small point detection area and simultaneous online detection of multiple elements. It gives accurate grade identification and element quantitative analysis of metal materials, and is especially suitable for the detection of light elements such as magnesium, aluminum, and silicon.


Handheld LIBS laser carbon analyzer provides a convenient and efficient elemental analysis solution for metal materials, metallurgical smelting and other industries, and provides users with a reliable tool for accurate and real-time sample analysis in complex environments.


Advantage

One-second detection

One-key operation, flexible and efficient detection in one second, results display in 3 seconds.

High detection sensitivity and signal-to-noise ratio

Argon gas can effectively remove O₂and N₂from the air, reducing molecular spectral line interference in the plasma (such as CN and NO), thereby making the carbon characteristic spectral lines clearer.

Light element detection

Compared with XRF technology, LIBS technology has excellent light element detection capabilities and can easily detect C, Be, B, Li, etc.

Small ablation damage

Micro-destructive, the ablation damage to the sample target surface is very small and basically invisible to the naked eye.

Low detection limit

High-resolution hardware specifications and proprietary fitting algorithms provide the instrument with higher accuracy and lower detection limits. In most routine applications, LIBS technology has a wide detection limit range, covering from ppm to % levels, to meet diverse analytical needs.

Safety lasers

Using high-energy pulse-safe (3B) laser technology.No danger to the human body. In addition, the instrument is equipped with a sensor laser safety interlock device to help reduce the risk of intentional laser exposure.

Equipment maintenance

The instrument adopts an innovative design that allows it to operate at low energy consumption, reducing maintenance and operation workloads and outperforming similar products in the industry.It provides fast customer service and technical support to ensure user issues are resolved promptly.

Portable and lightweight

The whole machine weighs only 1.65 kg, is small in size, meets ergonomic requirements, has strong battery life, and can meet the testing needs of field applications.


Application scenario

Handheld LIBS Alloy Anlyzer(图1)

Car manufacturer

Handheld LIBS Alloy Anlyzer(图2)

Aerospace


Handheld LIBS laser carbon analyzer(图3)

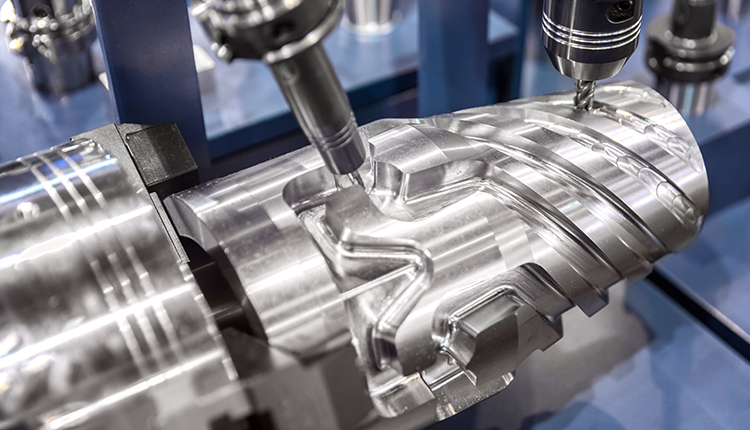

metalworking

Handheld LIBS Alloy Anlyzer(图4)


waste recycling


Handheld LIBS laser carbon analyzer(图5)

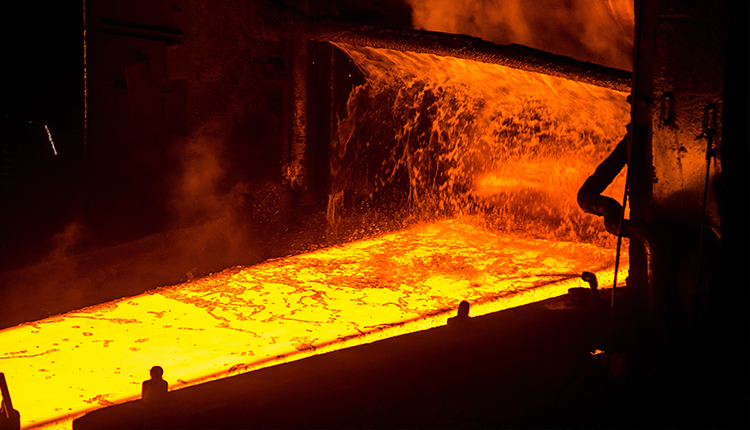

Steel smelting

Handheld LIBS laser carbon analyzer(图6)


Electronic production










Product Parameters

Core TechnologyIntegrated laser-induced breakdown technology and spectral analysis methods
Dimensions255mm x 294mm x 80mm(L×W×H)
Weight1.7kg (with battery)
Display system

4.3-inch industrial-grade resistive touch screen

Automatically adjust display brightness according

to external environment brightness

Storage function

32G

LaserClass 3B,1535nm, passive solid state laser

Spectral parameters

<0.1nm resolution

Single test time

Results in 3 second

High precision test mode

Quick inspection model, general inspection model, precise inspection mode

(the average value of multiple single test values can be analyzed through the algorithm)

Test elements

C、Al、Cu、Mg、Ni、Fe、Si、Sn、Zn、Mn、Ti、Zr、Cr、Bi、Pb、Ag, etc. (different models can test different elements)

Sample type

Cylinders, thin plates, wires above 1mm in diameter, foils (~0.02mm), large fragments (no powder)

Alloy base

LIBS 820C:Low and middle alloy steel

LIBS 830C:Stainless steel

Detection limitLIBS 820C:0.1%

LIBS 830C:0.01%

Work temperatureStandard 0~40℃
Protective gasArgon gas
Software

Application update, data download and grade library custom editing,

test report generation, calibration file editing, etc.

SafetySensing light safety interlock device
Battery

Equipped with MSBUS bus smart battery, two single batteries can work continuously for about 8 hours,

 and the remaining battery capacity can be directly checked.

It complies with aviation dangerous goods transportation regulations.
