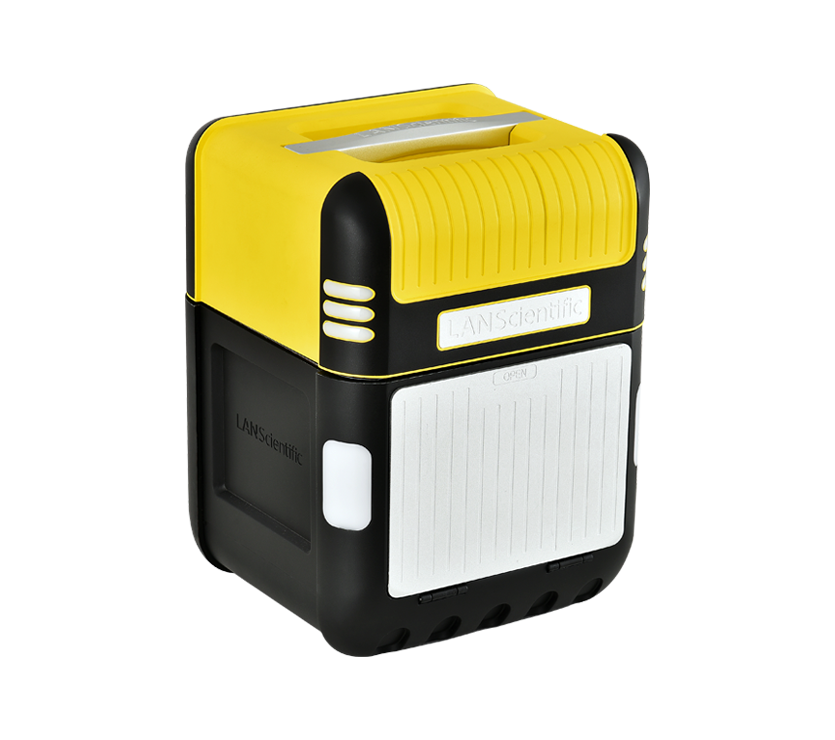

PeDX G7 precious metal analyzer is designed for quick and accurate analysis on precious metal compositions. It can conduct quick and accurate element analysis on gold, platinum, and palladium and other precious metals, providing results immediately.
PeDX G7 has the advantages of portability, high reliability, fast speed, non-destructive analysis, simple operation etc. Light and compact design makes users bring conveniently to any testing sites. Outstanding configuration ensures accuracy and reliability of test results. Even non-pros can master the easy operation fast. It can meet high industry standards for the jewelry showroom, factories and test agencies well.
XRF technology provides reliable purity and composition data with an accuracy up to 0.01% (9999 gold).
Small volume and light weight make it easy to carry and use in various environments.
Built-in data management system for users to store, check and export test results.
Bluetooth printer is equipped for wireless printing. Users only need to click ‘Print’ button to obtain reports and data quickly.
The entire analysis process can be done in several seconds. The operation is simple and can be easily mastered by non-technical personnel.
Precious metal XRF analyzer is a key tool in jewelry factory to conduct accurate precious metal composition analysis on incoming and recycling material. For incoming materials, it verifies whether materials meet certain production standards. For recycled materials, the gold analyzer is used to quickly assess the purity and composition, which is crucial to determine its reprocessing value and develop relevant treatment strategies |
Precious metal analyzer can monitor metal components of raw materials and semi-finished products at all stages of jewelry manufacturing to ensure the accuracy of alloy ratio. For instance, to quickly analyze the purity of metals such as gold, silver, and platinum during smelting process, helping adjust the smelting parameters to reach settled alloy ratio. |
QC/Product inspection in jewelry factory Precious metal analyzer can be used to test precious metal composition during quality control and finished product inspection process, in order to insure the fineness and purity satisfy certain standards. For example, to analyze 18K, 24K, platinum and other jewelries precisely, ensuring the consistency of product labels and actual compositions. |
Precious metal analysis in gold shop / jewelry showroom Precious metal analyzer is mainly used for jewelry quality assessment and trade-in services in gold shops and jewelry showrooms. QA: To ensure gold, platinum and other jewelries in sale meet standard purity, such as 24K, 18K, etc. Trade-in service: The precious metal analyzer can quickly and accurately assess the purity and value of old jewelry when customers want to exchange for new. Recycling service: For old gold jewelry or other precious metal items that customers want to sell, precious metal analyzer can provide instant purity analysis to help evaluate the recycling value fairly. |
| Type | Portable |
| Weight | 4.6KG(without battery) |
| Size | 200×200×268mm（L×W×H） |
| Sample chamber size | 170×130×60mm（L×W×H） |
| Detection range | Al-U |
| Language | Multi languages including Chinese, English |
| Detector | SDD detector |
| Optical structure | Oblique |
| Tube window | Beryllium(Be) window |
| Collimator | Equipped with 1.5mm collimator to reduce background noise,improve resolution and accuracy. |
| Accuracy | ±0.01%（9999 gold） |
| Built-in computer | Included |
| Display system | 5.7-inch industrial-grade resistance touch screen Automatic display brightness adjustment according to environment |
| Computer parameter | I. MX 6 Quad， quad-core Cortex-A9 processor |
| Data printing | Bluetooth printer |
| Algorithm | PeDX G7 adopts curve calibration method and fundamental parameter(FP) method to remove background difference, reduce error and improve test accuracy. |
| One-click test button | Included |
| Camera | Built-in camera provides intuitive sample positioning and image recording function, ensuring accurate X-ray irradiation and operation. |
| Data transmission | Built-in 32G system memory,USB,Bluetooth |
| Power supply | Standard 2 MSBUS intelligent batteries A single battery can work for about 8 hours. State of charge(SOC)can be directly checked in the battery. Compliance with the transport regulations of dangerous goods by air |
