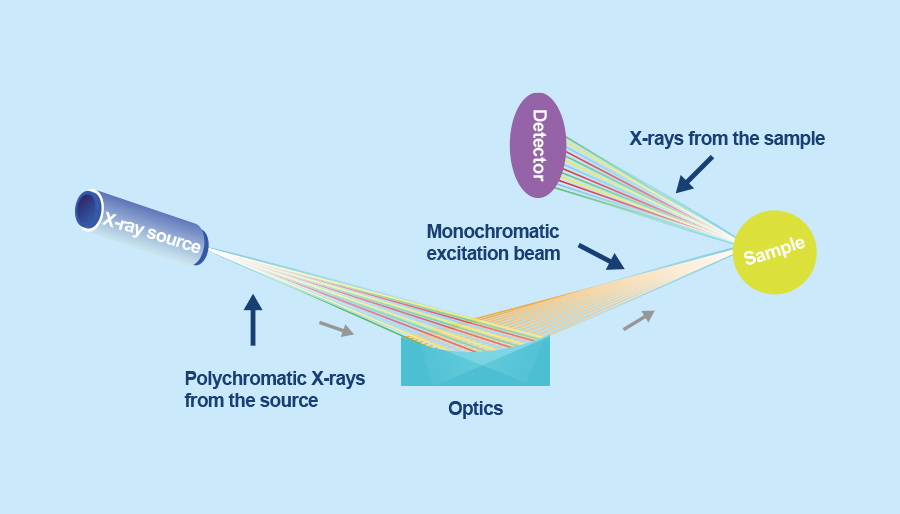

The PeDX SW5 employs single-wavelength excitation technology, which effectively reduces background interference caused by continuous scattered X-rays from the X-ray tube, significantly improving the signal-to-noise ratio and detection sensitivity. Compared with conventional XRF techniques, this technology offers the advantages of low background and high excitation efficiency, making it particularly suitable for accurate low-concentration analysis of heavy metals such as cadmium, mercury, arsenic, and lead.

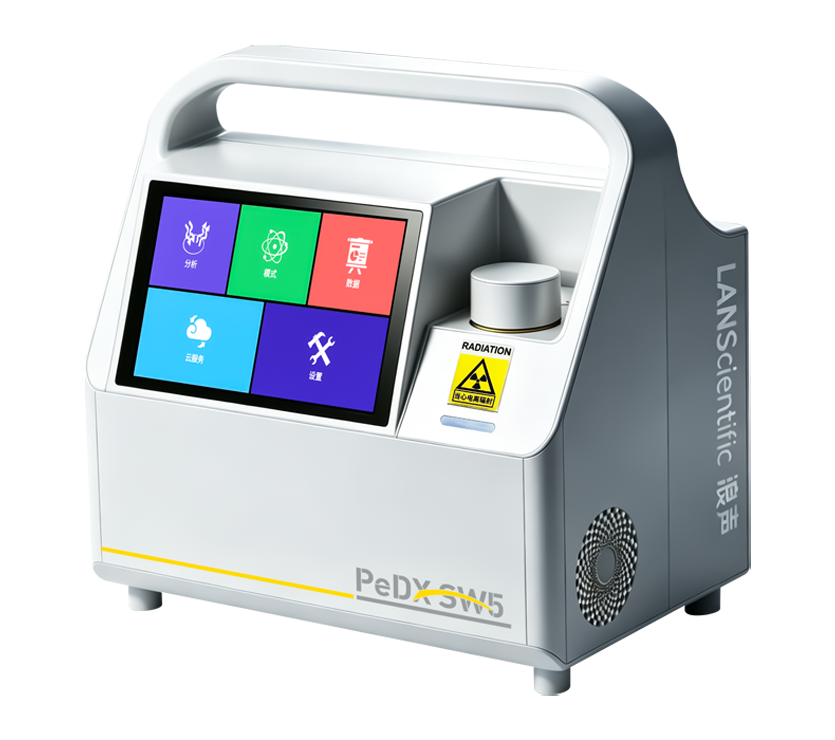

The instrument is compact, lightweight, and easy to operate, supporting one-key testing while being fast, accurate, safe, and reliable. It is suitable for various on-site scenarios, including laboratories, production lines, warehouses, and outdoor environments. The PeDX SW5 can be widely applied in fields such as soil heavy metal screening, food safety, petrochemicals, environmental monitoring, metal recycling, mining exploration, cement and building materials, consumer goods compliance testing, archaeological identification, coating thickness measurement, power equipment inspection, and academic research. It is an ideal choice for product quality inspection, safety auditing, and recycling processes in industrial enterprises.
|
|
|
|
Detection of heavy metal content in cosmetics |
Exploration and mining, analysis of sediments, rocks, thorium (Th), uranium (U), and rare earth elements |
| Size | 330mm x 230mm x 305mm（L×W×H） |
| Crystal | Hyperbolically curved crystal |
| Core Technology | Single-wavelength technology |
| Element range | Mg— U |
| Concentration Range | ppm – 99.99% |
| Measurement Time | 30S-1200S |
| Excitation Source | High-performance micro X-ray tube, optional W/Ag/Rh target |
| Detector | Equipped with large-area SDD detector, energy resolution ≤125 eV |
| Operating Temperature | -5°C to +40°C |
| Operating Humidity | 40–70% (non-condensing) |
| Working temperature | -20℃~50℃ |
| Data Display System | Integrated display with 8-inch industrial capacitive touch screen |
