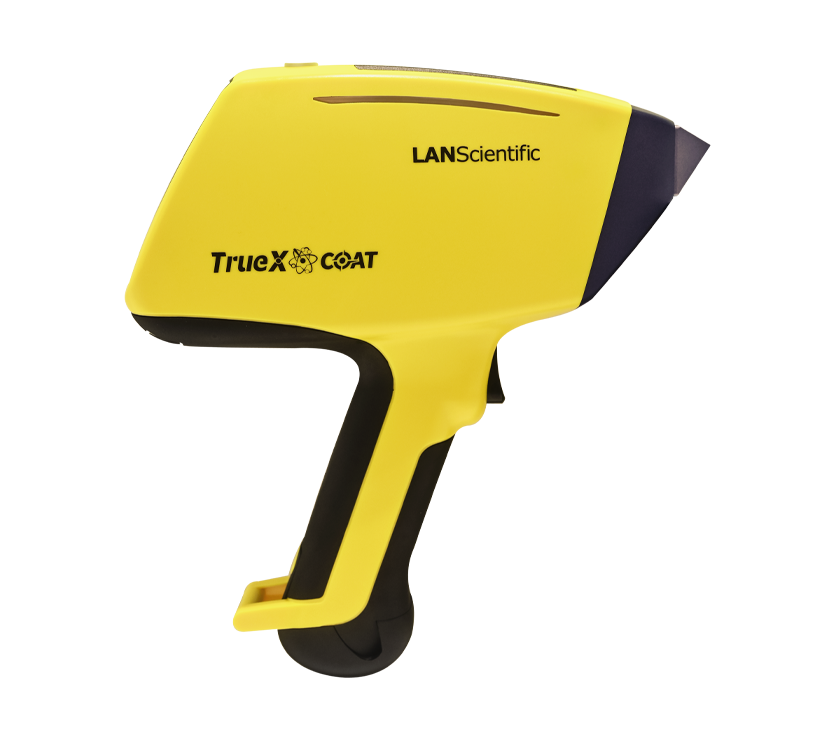

TrueX COAT Coating Analyzer

TrueX COAT Coating Analyzer

TrueX COAT Coating Analyzer

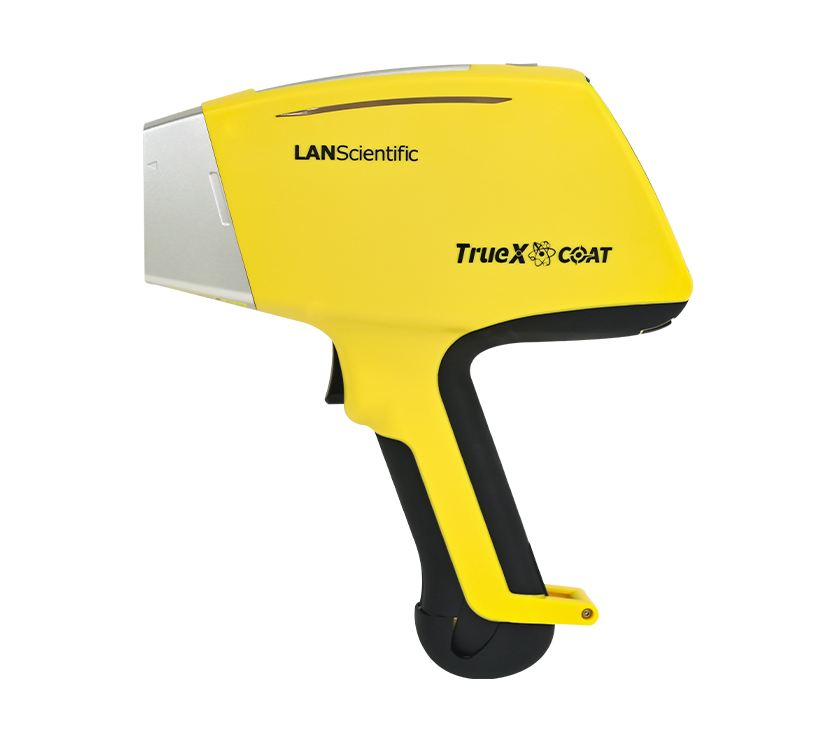

TrueX COAT coating thickness measuring instrument is a hand-held XRF instrument with excellent performance designed by LANScientific Co., LTD., relying on years of XRF technology research and development experience and integrating coating market demand. TrueX COAT is suitable for coating thickness measurement and material analysis with the advantages of non-destructive, reliable, high productivity and high flexibility. It can be used for qualitative analysis of elemental composition of samples, as well as thickness measurement of coatings and coating systems. Widely used in circuit board, semiconductor, electroplating, metal products, auto parts, sanitary ware, jewelry and other industries in the functional plating bath concentration analysis.

Advantage

Easy carry

The instrument is smaller in size and lighter in weight, so it is easy to carry.

High-performance configuration

High-speed processing chips, advanced algorithms and efficient software combine to make instrument analysis faster.

Ndustrial resistance touch screen

4.3-inch industrial resistance touch screen, compared with capacitor screen. It has better backlight performance, can still be clearly visible under strong light in the field, and avoid the risk of removing gloves in special outdoor environment.

User-customized

Users can create customized professional reports, including company logo, company address, test results, spectrograph and other sample information (such as product description, origin, batch number, etc.).

High quality detector

The instrument is suitable for the analysis of multiple elements detector, low noise, flexible to deal with the coating structure.

Application scenario

TrueX COAT镀层分析仪(图1)

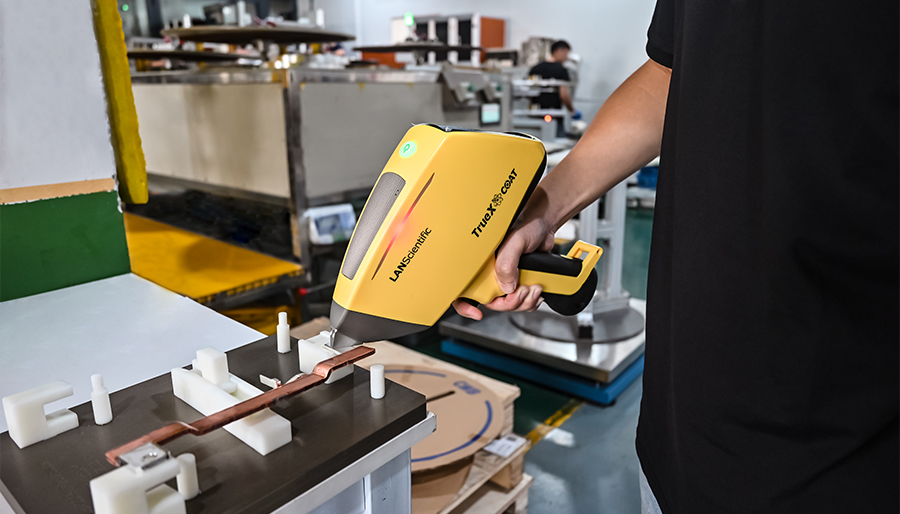

Circuit board industry

TrueX COAT镀层分析仪(图2)

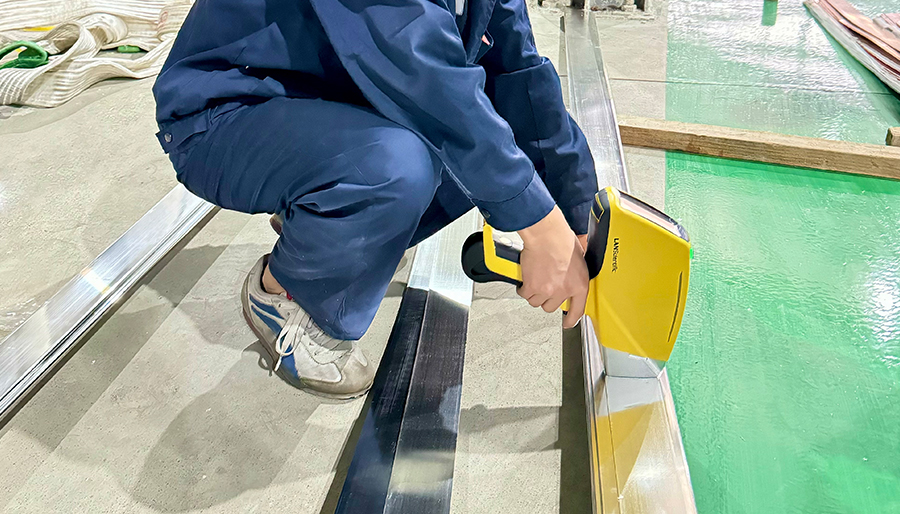

Hardware and building materials industry

TrueX COAT镀层分析仪(图3)

Jewelry and watches


TrueX COAT Coating analyzer(图4)

Precision electronics, 5G industry


TrueX COAT Coating analyzer(图5)


Automobile and decoration industries


TrueX COAT Coating analyzer(图6)

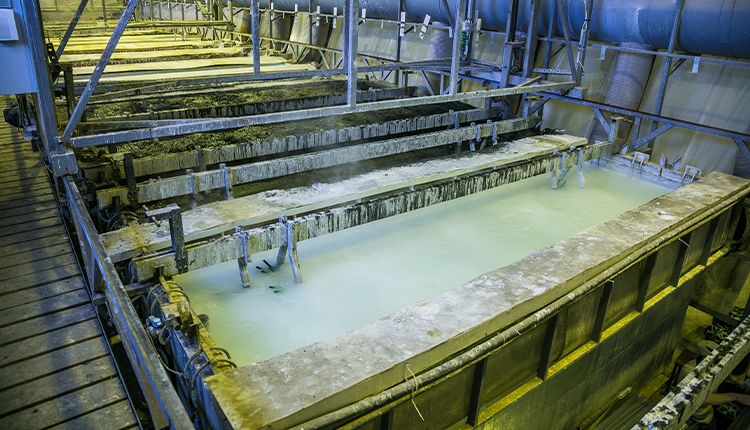

Plating bath liquid、Metal content in electroplating wastewater



Product Parameters

Weight1.5KG
Size254mm ×79mm ×280mm(L×W×H)
Excitation sourceUp to 50kV/200μA, voltage and current can be adjusted freely, W/Ag/Rh target (optional)
Detection rangeMg—U
DetectorBOOST Si-Pin、SDD(optional)
Display system

4.3 inches industrial grade resistance touch screen

Automatically adjust display brightness according to external environment

Data processing

Built-in 32GB storage

USB, Bluetooth, WIFI, can connect the device to the Internet, remote setting and maintenance of the instrument

Security

Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection

Waterproof, dustproof and shockproof carrying case

LANScientific special safety rope

Power supply system

Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations
