PeDX Family (Portable)

Oil Analyzer

Oil Analyzer

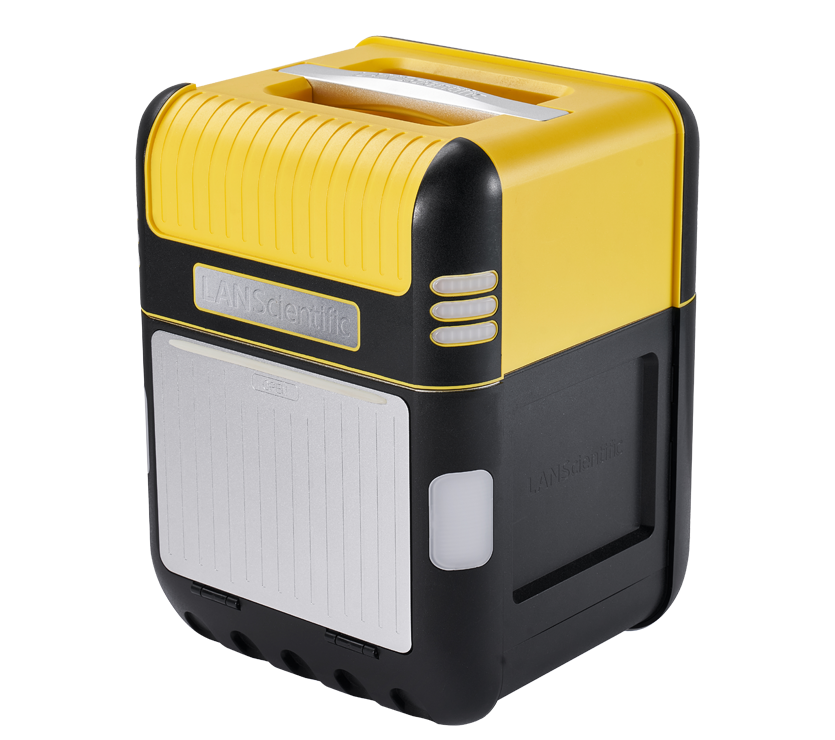

PeDX OIL is a portable XRF analyzer that provides sulfur analysis methods for the energy industry. It can analysis of lubricating oil, diesel fuel, kerosene, jet fuel, other distillation oil, volatile oil, residual oil, hydraulic oil, crude oil, unleaded gasoline, ethanol gasoline, biodiesel, and other similar elements content in petroleum products such as oil and wear elements, pollutants, and the existence of the sulfur content within a few minutes . Analysis of sulfur content in safe, high-quality liquid, solid or gas samples can be carried out elsewhere where oil products are used.

Advantage

One-click intelligent operation

The whole analysis process can be completed in just a few seconds. The operation is simple and even non-technical people can easily use it.

Easy customization

On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.

Multiple forms of data output

Analytical data reports can be made in PDF format or Excel format. When exporting data in Excel format, you can also confirm and edit the data in detail in the table. Users can also create customized professional reports, including company logo, company address, test results, spectrogram and other sample information (such as product description, origin, batch number, etc.).

Accurate and reliable qualitative and quantitative methods

It integrates advanced algorithms such as super-FP algorithm and correction curve method of LANScientific's front, making the instrument not only faster, higher accuracy and stronger consistency of measurement.


Application scenario

油品分析仪(图1)

Analysis of sulphur content in Marine Fuels



油品分析仪(图2)

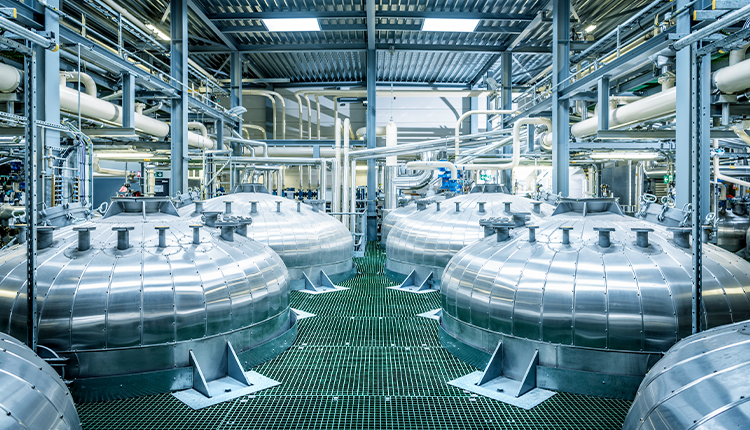

Petroleum refining industry


油品分析仪(图3)

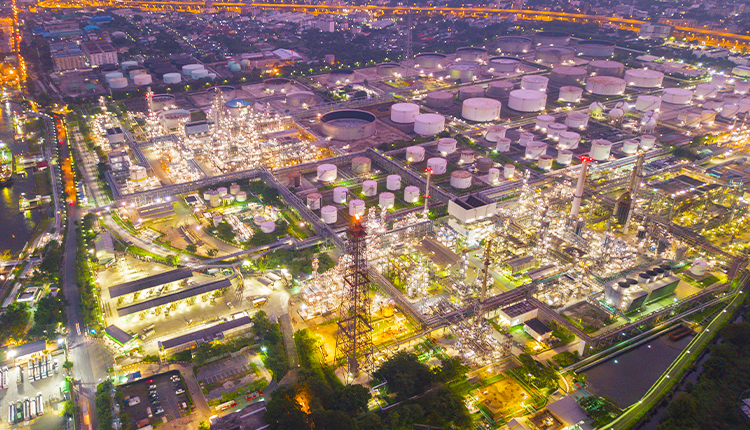

Refinery


油品分析仪(图4)

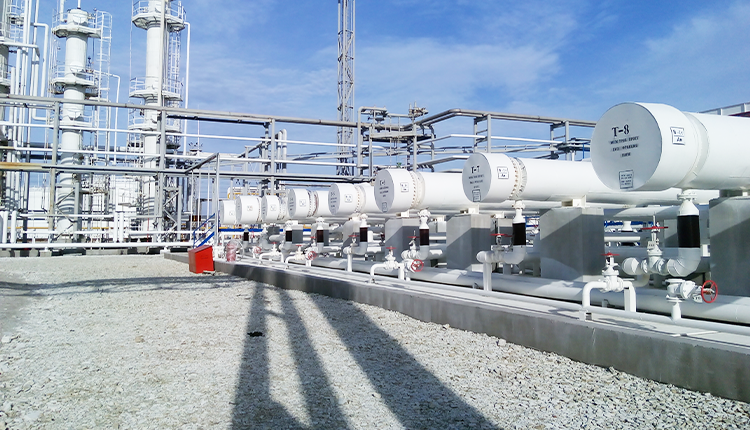

Oil pipeline



油品分析仪(图5)

Analysis of Wear Elements/Additives/Hydrocarbons in Oils






Product parameter

Weight4.1KG
Size200×200×268mm(L×W×H)
Size of Sample Room170×130×60mm(L×W×H)
Excitation sourceUp to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target
Detector

BOOST Si-pin/SDD(Optional)

Operation System

Based on the I. MX 6 Quad, quad-core Cortex-A9 processor

Dedicated analytics operating system, 32GB of system memory

Data Processing

Built-in 32GB storage

USB, can connect the device to the Internet, remote setting and maintenance of the instrument

Target

W/Ag/Rh(Optional)

Resolution

<136eV

Data Transfer

USB, Bluetooth

Operating Ambient Temperature

-20℃~50℃

Operating Ambient Humidity

10%~90% relative humidity, non-condensing

Display

5.7-inch absorbable color touch screen display

Test Time

User customize

Optional

Built-in 5 million pixel high-definition camera

Language

Chinese, English, etc.

Air mode

Air mode, helium mode, vacuum mode (optional)
