YANG Family (SW-XRF)

Portable ppb Level Trace X-Ray Fluorescence Spectrometer

Brand New Second Generation Curved Crystal Technology
Portable ppb Level Trace X-Ray Fluorescence Spectrometer

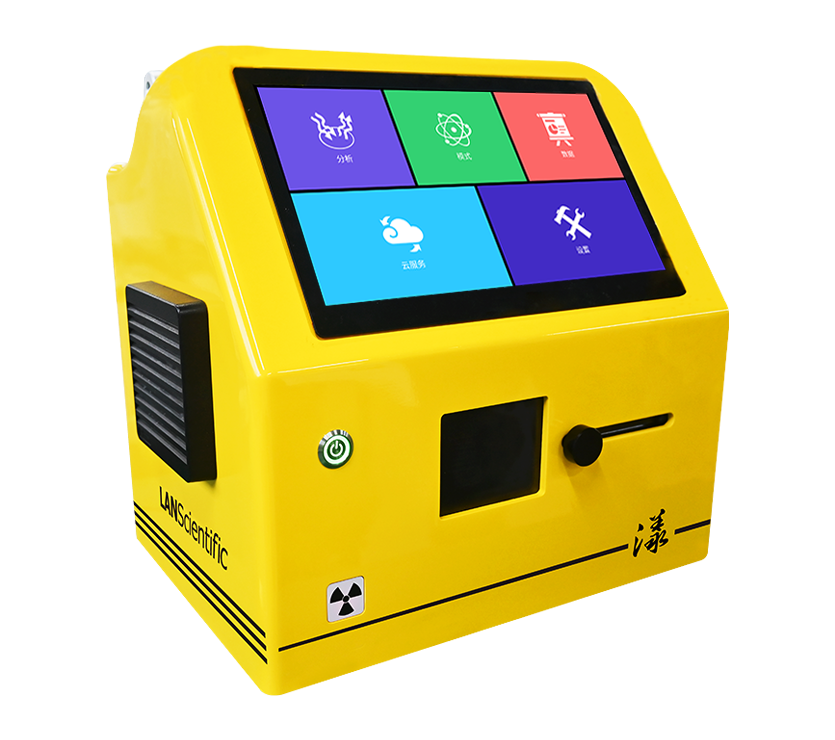

YANG 700W portable ppb-level trace X-ray fluorescence spectrometer is an analytical instrument launched by LANScientific Co., Ltd. It adopts X-ray fluorescence technology and is equipped with multi-surface continuously curved crystals to effectively reduce scattering background interference, thereby ensuring that the characteristic lines of the elements to be tested are clearly identified under extremely low background noise. The excited fluorescent X-rays are captured by precision detectors to achieve high-resolution and high-sensitivity test results.

YANG 700W is compact and portable, easy to operate, fast and accurate, safe and reliable, and easy to prepare samples. It can quickly perform quantitative and semi-quantitative multi-element trace analysis on liquids, suspensions, solids and pollutants. Therefore, it can be flexibly used for on-site and laboratory analysis and is widely used in many fields such as materials science, environmental testing, biomedicine, geological exploration and scientific research.


Advantage

Portable and easy to use

Integrated design, portable test platform can be used for both on-site testing and laboratory analysis, one-button testing and simple operation, freely used for laboratory/ field scientific research.

Simultaneous analysis of multiple elements

The instrument can simultaneously detect eight major heavy metal elements such as chromium and lead. It can also expand the elements according to detection needs and analyze nearly 30 elements, greatly saving analysis time.

Good adaptability

Developed specifically for rapid on-site analysis, the instrument is fog-proof, dust-proof, and vibration-proof, and can adapt to harsh operating environments.

Personalized settings

Based on the test, a variety of customized settings are provided. The test conditions can be changed according to the test needs, and the threshold can be changed according to the screening needs. This enables personalized screening of different materials and elements.

Simple sample preparation

Simple sample preparation, and do not need to go through complex pre-processing. The instrument uses an integrated sample cup and sample film, which do not need to be manually attached on site, so as to avoid error in the sample preparation process and prevent sample contamination.

Cloud service

The device is equipped with a mobile APP service that can be controlled synchronously. The mobile APP service can operate, transmit and manage data, tags and other information, making it easy to share system data.



Application scenario

Portable ppb Level Trace X-Ray Fluorescence Spectrometer(图1)

Detection of heavy metal concentration in industrial wastewater and surface water


Portable ppb Level Trace X-Ray Fluorescence Spectrometer(图2)

Analysis of elements concentration in materials science


Portable ppb Level Trace X-Ray Fluorescence Spectrometer(图3)

Analysis of toxicity in blood and urine


Portable ppb Level Trace X-Ray Fluorescence Spectrometer(图4)

Analysis of trace elements in biomedicine


Portable ppb Level Trace X-Ray Fluorescence Spectrometer(图5)


Geological analysis

Portable ppb Level Trace X-Ray Fluorescence Spectrometer(图6)


Analysis of trace elements in food


Product Parameters

Size360mm x 265mm x 365mm ( LxWxH )
Weight18KG
Excitation sourceWater-cooled X-ray tube
X-ray Tube Voltage50kV max, X-ray radiation dose rate <0.2μSv/h
X-ray Tube Power

50W max, adjustable from 0-50W

CrystalMulti-surface continuously curved crystal
Detector

50mm2 large area SDD detector

Concentration Range

2ppb-100ppm(slightly different of each elements)

Element rangeMg—U
BatteryEquipped with lithium battery. support continuously test more than 50 samples. Support charging with adapter when used in lab.
Working temperature-20℃~50℃
Working humidity

20%~90%RH

Data output

USB, Bluetooth

Measuring time30~600S
Resolution

optimal125 ev

Data display system

Chinese, English, etc. Multiple languages available

System processor

DQuad-core 64-bit Cortex-A55, up to 2.0 GHz

Dedicated analysis operating system

80MHz ADC digital pulse processor

4096 MCA channels, 32G memory
