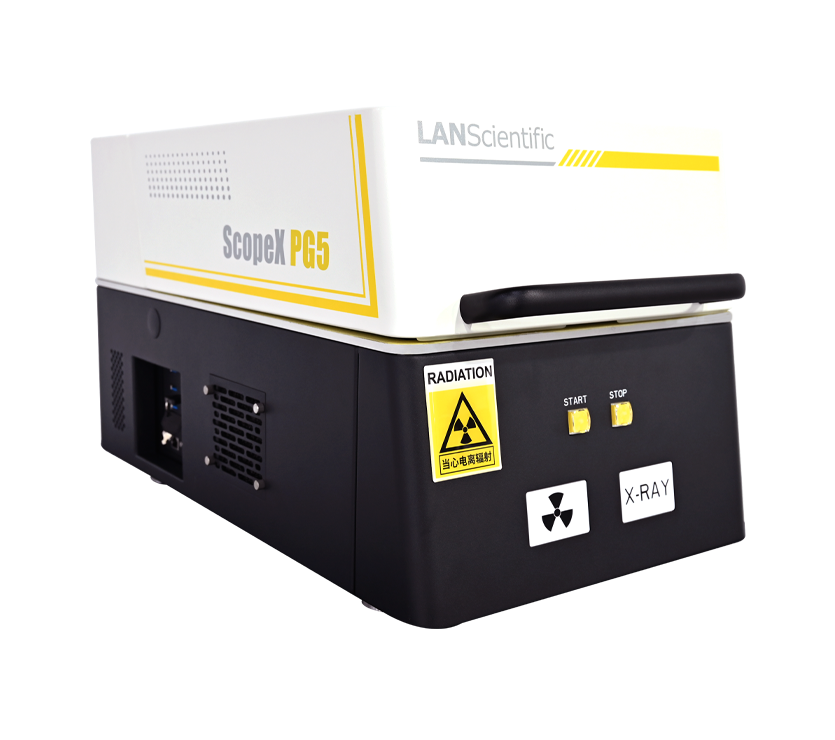

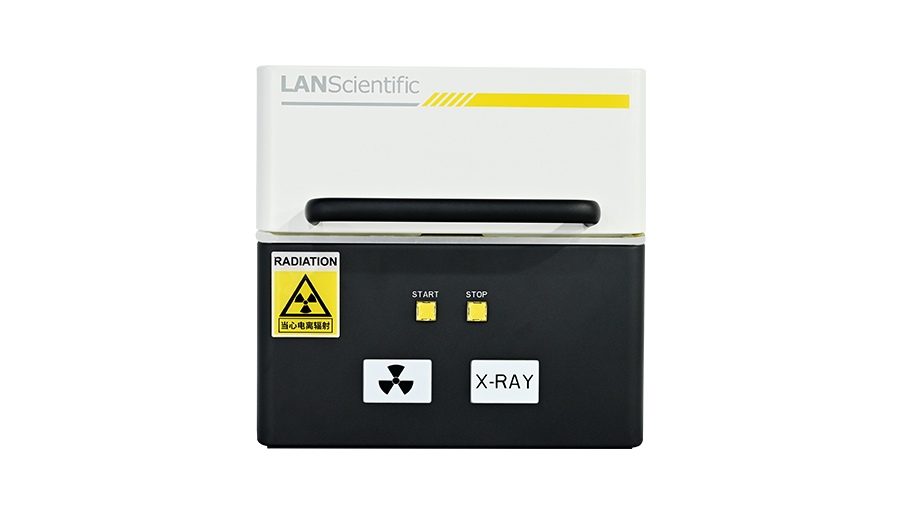

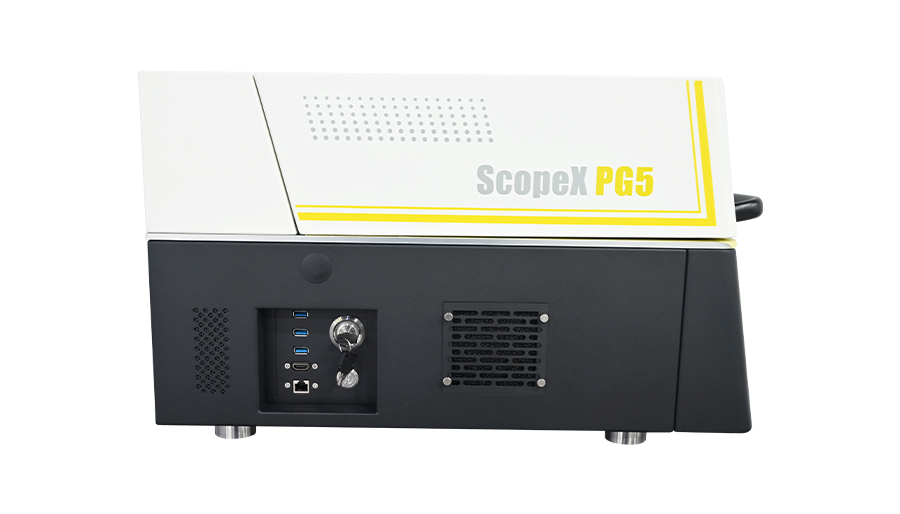

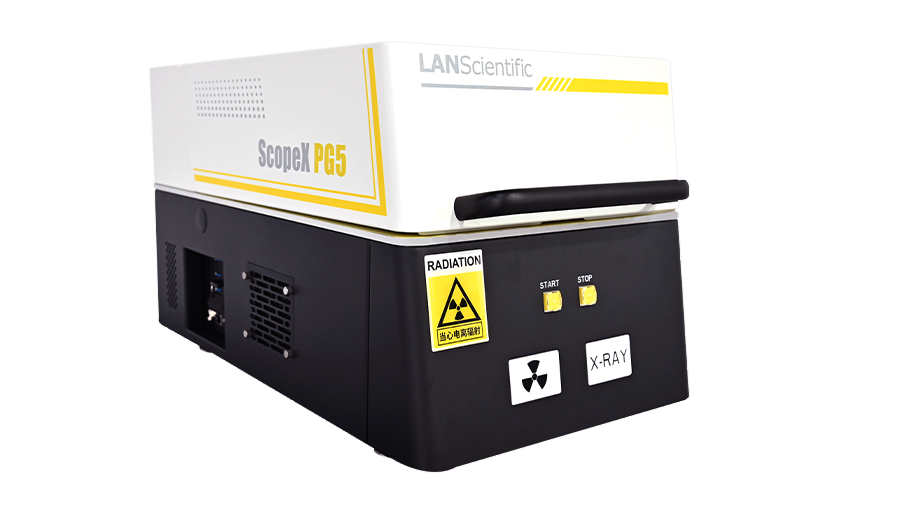

ScopeX PG5 is a precision testing equipment designed for the gold recycling industry. The instrument adopts an integrated design, built-in industrial control computer, large sample chamber. It can determine the purity and composition of gold group and other precious metals quickly and accurately, effectively identify adulterated elements such as tungsten, iridium, rhenium, ensure accuracy of recycling process, prevent recyclers from economic losses due to misjudgment and improve efficiency of recycling.
ScopeX PG5 is equipped with user-friendly operation interface and simplifies test process, so even beginners can get started quickly. The high-precision test results provide a reliable quality assurance for the gold recyclers, and also provide a transparent transaction basis for both buyers and sellers.
Gold analyzer is the key equipment to ensure the quality of recycled material in gold refinery and jewelry factory. It can analyze the purity and composition of recycled gold quickly and accurately, helping refineries to efficiently evaluate raw material value and optimize the refining process. In addition, benefiting from high accuracy of XRF gold analyzer, environmental pollution is reduced while productivity and product quality are improved. For jewelry factories, XRF precious metal analyzer ensures the accurate ratio of recycled materials and guarantees the fineness and quality of jewelry. |
Gold analyzer is an indispensable tool for trade-in or recycling services in gold shop and jewelry showroom. It provides accurate purity and composition analysis, ensuring the fairness and transparency of transaction. |
Pawnshops need to accurately assess the purity, composition, and value of precious metals and jewelry to ensure the fairness and safety of trading. Gold analyzer can quickly identify the authenticity and purity of gold, platinum, palladium and other precious metals, evaluate precious metals and jewelry, avoiding economic losses caused by miscalculation and reducing the risk of adulteration and fake. |
Various recycling channels such as banks, individuals and small recyclers need accurate composition analysis technology to ensure recycling quality of precious metal products such as gold and gold-plated electronic wastes. |
| Type | Benchtop |
| Weight | 40KG |
| Size | 330×580×360mm（W×D×H） |
| Sample chamber size | 320×480×130mm（W×D×H） |
| Detection range | Al-U |
| Language | Multi languages including Chinese, English |
| Detector | Si-PIN detector |
| Optical structure | Vertical |
| Tube window | Glass window |
| Collimator | Equipped with 1.5mm collimator to reduce background noise,improve resolution and accuracy. |
| Accuracy | ±0.03%（999 gold） |
| Built-in computer | Included |
| Computer parameter | I5 quad-core + win11 |
| Data printing | Bluetooth printer |
| Algorithm | ScopeX PG5 adopts curve calibration method and fundamental parameter(FP) method to remove background difference, reduce error and improve test accuracy. |

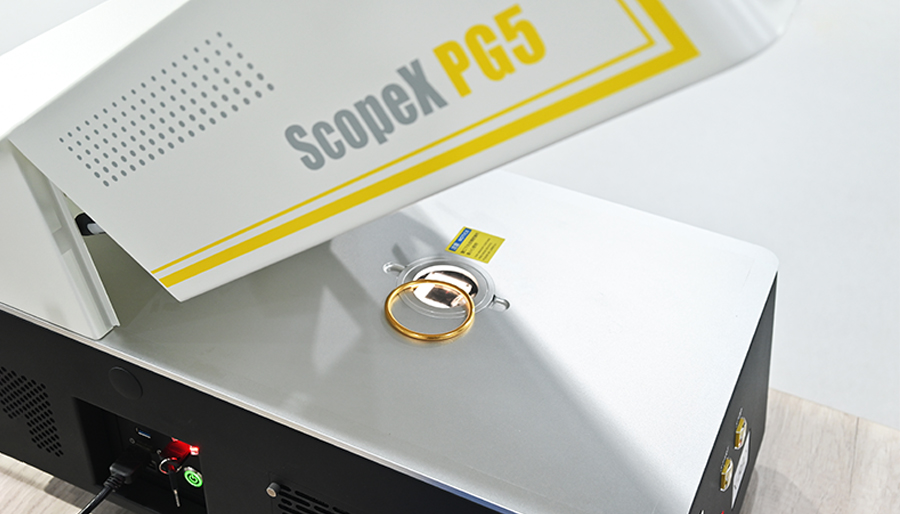

| One-click test button | ‘Place the sample- -close the top cover- one-click test- -view the results’ operation is simple for non-technical personnel to analyze by themselves. |
| Camera | The built-in 5-megapixel HD CMOS color camera can not only provide users with intuitive sample positioning and image recording function, but also ensure that the X-ray accurately illuminate to the target area, improving the operation accuracy. |
| Power supply | AC 220V±5V 50Hz(subject to change in different regions) |
