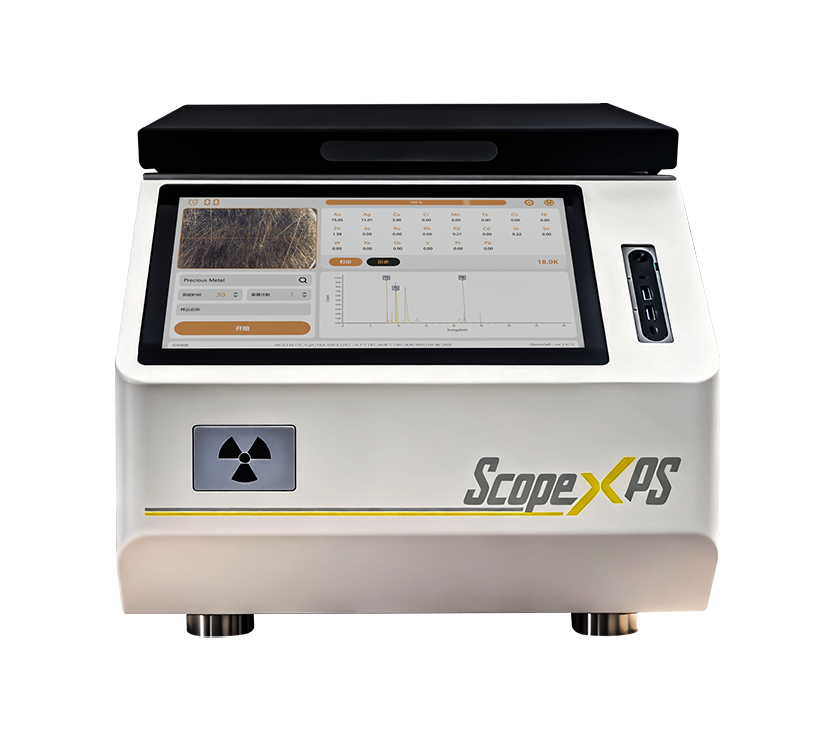

ScopeX PS7 Precious Metal Analyzer is an all-in-one intelligent instrument designed specifically for the precious metal testing field. It features an integrated design that seamlessly combines a high-performance X-ray generation system, a high-sensitivity detector, and intelligent analysis software. No external computer is required — it’s ready to use right out of the box, offering convenient operation.
In terms of core configuration, the ScopeX PS7 is equipped with a large-area FSDD detector, which offers higher count rates and better energy resolution compared to conventional detectors. It can accurately capture the characteristic signals of trace impurities in precious metals such as gold, silver, platinum, and palladium, achieving lower detection limits. It is particularly suitable for trace impurity analysis in precious metals, identification of coating structures (e.g., gold-over-silver), and rapid detection of adulterant elements such as rhenium, tungsten, and iridium.
The instrument incorporates a proprietary FP algorithm and a self-developed calibration curve method. With the fusion of these dual algorithms, it can intelligently adapt to various sample forms — including pure gold, karat gold, coated samples, and complex alloys — eliminating the need for frequent calibration. Accurate test results can be obtained with just one click.
The ScopeX PS7 is widely used in jewelry testing, precious metal recycling, refining quality control, and pawnshop evaluation, making it an ideal choice for high-end precious metal analysis.
Through composition testing, the purity of recycled precious metals can be accurately assessed, making the recycling process more efficient. This is also crucial for evaluating market value, thereby helping recyclers and jewelers make correct pricing decisions in transactions. |
Testing materials is essential for jewelry factories to ensure product quality and meet customer requirements, which requires strict quality checks on raw materials, semi-finished, and finished products. ScopeX PS6 gold analyzer is an indispensable technical tool in these factories. Its fast and non-destructive testing enhances the efficiency of both incoming raw material inspection and final product verification. It plays a vital role in guaranteeing product quality, improving production efficiency, reducing costs, building customer trust, and ensuring compliance. |
ScopeX PS6 gold analyzer plays a vital role in gold shops and jewelry showrooms when serving wholesalers, retail customers, and providing recycling/exchange services. They not only ensure the purity of gold and platinum jewelry meets industry standards like 24K or 18K but also deliver swift and precise purity and value analysis during trade-in/recycling transactions. This guarantees fairness and transparency in all dealings. |
Compared to traditional chemical analysis methods, ScopeX PS6 gold analyzer in quality inspection institutions can complete precious metal item testing within minutes, significantly shortening the entire quality control cycle. The application of these instruments greatly enhances the efficiency of quality inspection processes, reduces human error, ensures the reliability of test results, and guarantees product quality consistency and compliance. |

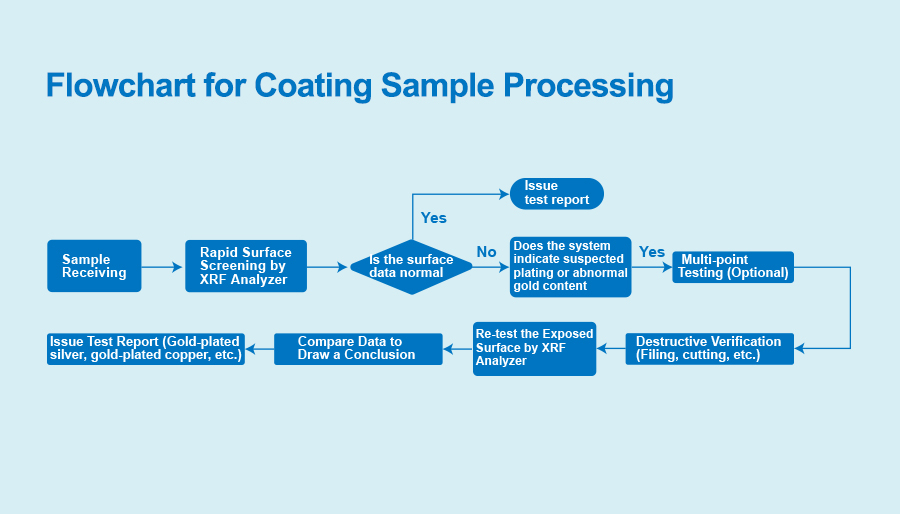

Supports thickness measurement and composition analysis of single-layer and multi-layer metal coatings, capable of identifying common coating types such as gold plating and silver plating. For coated samples such as gold-over-silver and gold-over-copper, the system can automatically determine the coating structure, effectively distinguish between plated gold and solid karat gold, and accurately identify the base material (silver, copper, etc.), preventing the misidentification of plated items as solid gold. Suitable for applications including jewelry coating inspection, gold/silver plating process control, clad sample screening, and hardware electroplating quality control. |
| Size | 362mm×524mm×343mm（L×W×H） |
| Sample chamber size | 262mmx297mmx110mm（W×D×H） |
| Weight | 34.5kg |
| Display screen | 11.6-inch large capacitive touch screen |
| Detection range | Al-U |
| Optical structure | Vertical |
| Detector | Si-PIN detector |
| Tube window | Glass window |
| Collimator | ScopeX PS7: 1.5mm collimator ScopeX PS7 Pro: 1.0mm collimator |
| Accuracy | ±0.01% |
| Language | Multi languages including Chinese, English |
| Data printing | Bluetooth printer |
| Algorithm | ScopeX PS7 adopts curve calibration method and fundamental parameter(FP) method to remove background difference, reduce error and improve test accuracy. |
| One-click test button | ‘Place the sample- -close the top cover- one-click test- -view the results’ operation is simple for non-technical personnel to analyze by themselves. |
| Camera | The built-in 5-megapixel HD CMOS color camera can not only provide users with intuitive sample positioning and image recording function, but also ensure that the X-ray accurately illuminate to the target area, improving the operation accuracy. |
| Power supply | Supports 100-240VAC, 50/60Hz |
