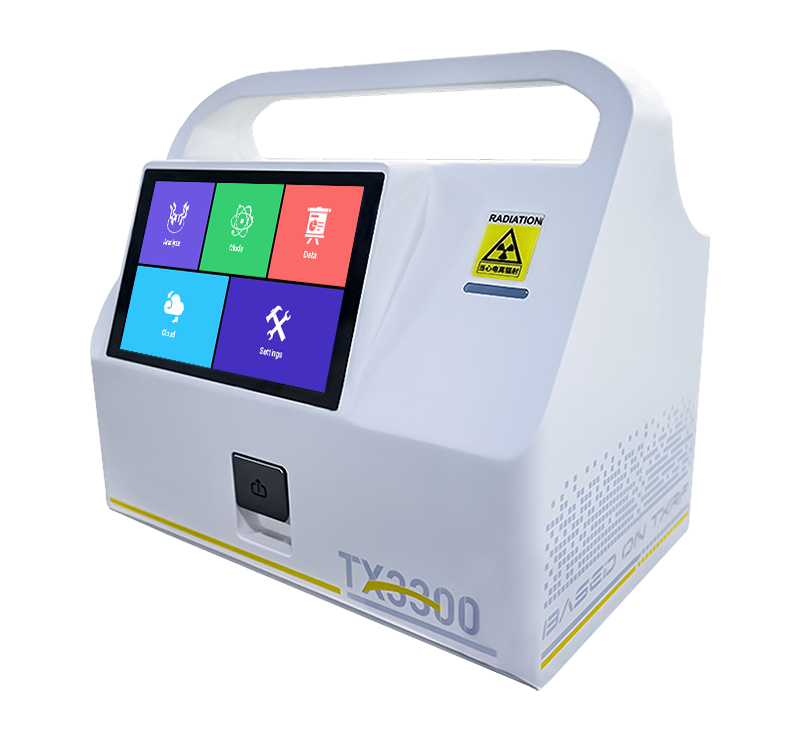

TX3300Cl Methanol Fuel Inorganic Element Analyzer is a high-precision portable spectrometer designed by Lanscientific. The instrument utilizes total reflection X-ray technology and intelligent operating software to perform multi-element micro/trace analysis of inorganic elements. This instrument provides high efficiency and high sensitivity solution for micro/trace element analysis.
The TX3300Cl is not only high-performing, easy to use and friendly to environment, but also compact for carrying and transportation.This is an ideal tool for improving methanol fuel quality control, R&D innovation. It can be used in new energy, chemical industry, environmental monitoring and other fields to help enterprises achieve efficient production and sustainable development.
Raw material testing;Process monitoring;Finished product testing |
Methanol is a significant alternative energy source, and its quality directly impacts the efficiency and safety of energy utilization. Elemental analysis not only identifies impurities and ensures quality in line with relevant standards, but also reduces pollution emissions and improves market competitiveness. |
The use of methanol may produce inorganic elements that are harmful to the environment. If untreated, these elements are released directly into the environment which can pollute soil, water sources and ecosystems. By using instruments to detect inorganic elements in methanol, harmful substances can be detected and treated in time to prevent damage to the environment. |
Methanol, as an important raw material in chemical production, is widely used in the production of fertilizers, plastics, pigments, adhesives, petroleum, synthetic fibers, dyes, and pesticides, etc. Compositional analysis of methanol not only provides data to support the optimization of production processes but also ensures raw material purity meets production requirements. This helps to guarantee the quality and stability of downstream products. |
| Size | 360mm x 265mm x 365mm ( LxWxH ) |
| Weight | ≤11KG（without battey ） |
| Core Technology | Total reflection X-ray fluorescence (TXRF) |
| Element Range | Mg—U |
| Concentration Range | ppb-ppm |
| Test time | 30s-600s（User-settable） |
| Sample Types | Liquids, suspensions |
| Sample carrier | Glass carriers |
| X-ray tube | High brightness micro-focus fixed target light source |
| Optical system | Multi-layer monochromator |
| Detector | Large area SDD detector |
| Data Display System | Integrated instrument with built-in display, super large industrial-grade capacitive screen |
| Accessories(option) | Sample tube,Pipette,Heating dryer, Standard substances,etc. |
