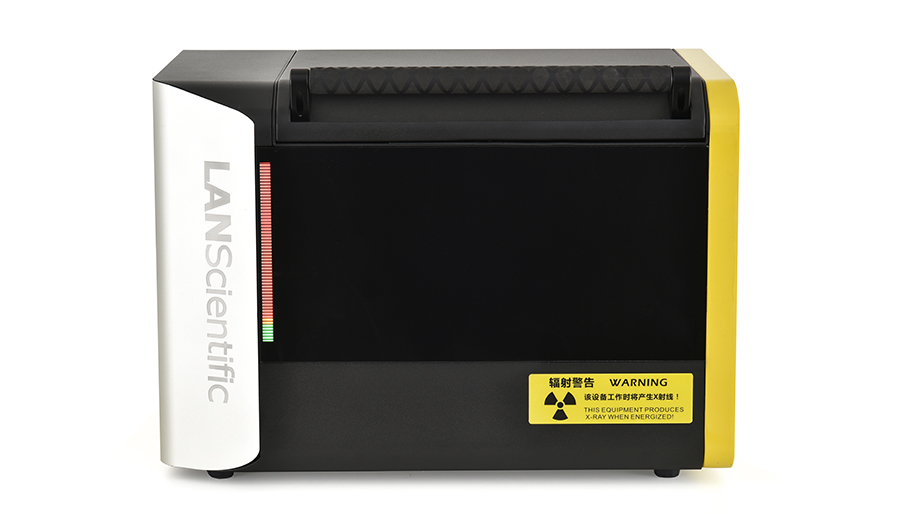

ScopeX XRF Analyzer with Vacuum

ScopeX XRF Analyzer with Vacuum

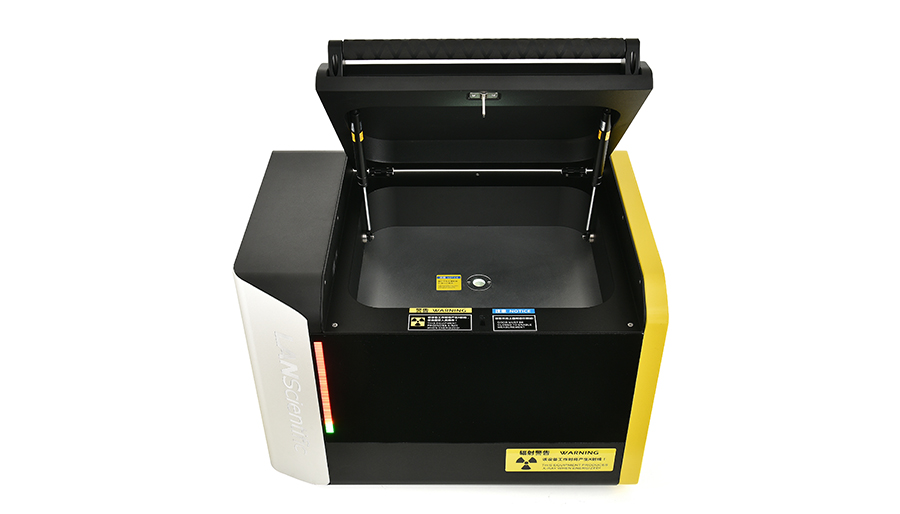

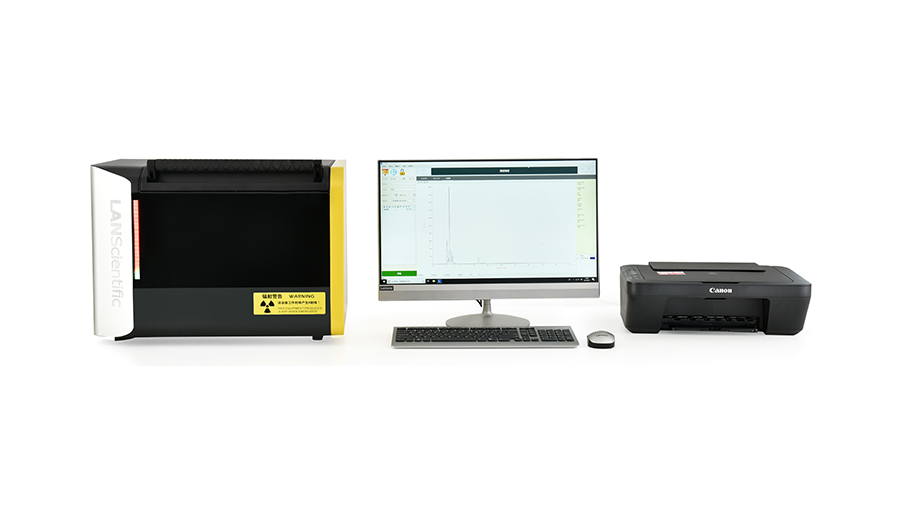

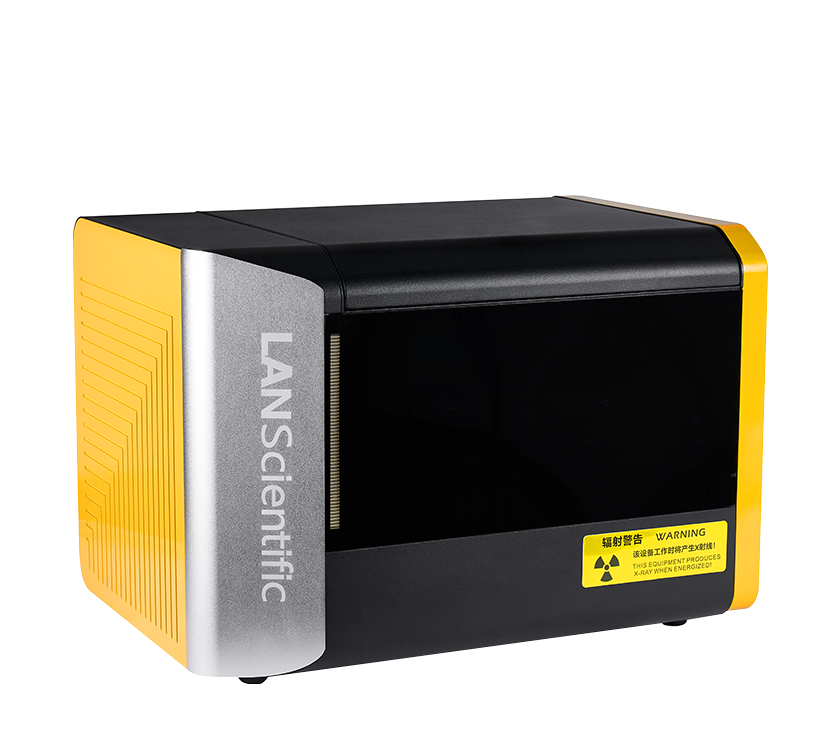

ScopeX XRF analyzer with vacuum is specially designed by LANScientific for laboratory requiring high sensitivity and precision analysis. It combines advanced spectroscopic analysis technology with a vacuum system to provide the capability for detailed elemental analysis of a variety of materials. The instrument adopts advanced design concepts, resulting in a smaller body size and larger sample compartment, and is equipped with highly intelligent software and high-quality hardware. The instrument can detect samples in the form of solids, powders, films, etc., as well as samples in the form of blocks, flakes, lines, etc.


Advantage

High performance configuration

Low energy X-ray with intelligent vacuum system, Si, P, S, Al, Mg and other light elements have a good excitation effect, XRF technology can be used to analyze the high content of Cr, Ni, Mo and other key elements.

A variety of collimator, filter automatic switch

5mm, 3mm, 1mm, 0.5mm four kinds of collimator, collimator and filter can be automatically switched by the software, save time and effort, through the appropriate combination of collimator and filter can improve the detection accuracy and sensitivity.

Nondestructive testing

Without damaging or affecting the performance of the tested object, the whole test process without any damage.

Peltier refrigeration

Peltier electric refrigeration without liquid nitrogen. Reduce the complexity of the device, and save manpower and equipment maintenance costs.

Data transmission

USB, WIFI, wireless Bluetooth and other methods for data transmission.

User-defined

The file can be in EXCEL, PDF and other formats. Users can customize the test report, including company logo, spectral spectrum and other sample information.

Safety

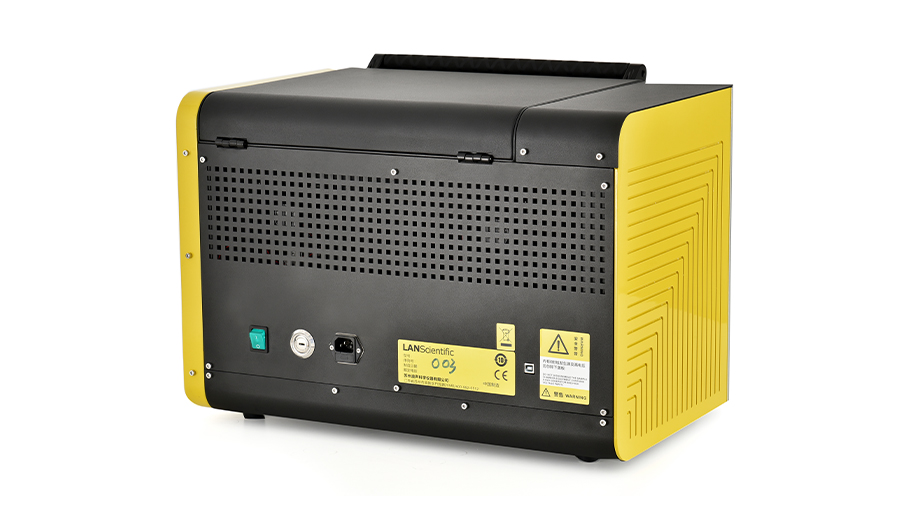

Fully enclosed metal chassis and leakage protection switch, radiation safety in line with international standards.

Product Parameters

Test objectSolid, liquid, powder
Range of elementNa—U
Sample room size

304mm×368mm×78mm(L×W×H)

Sample weight range0-2.5KG
Cover openAutomatic
Mainframe size570mm×400mm×400mm(L×W×H)
Mainframe weight

64KG

X-ray tubeHigh power side window X-ray tube
VoltageUp to 50kV
CurrentMaximum 1mA
Cooling methodAir cooling
DetectorSDD
Sampling methodHand sampling、Autoinjection
Sample observation5 megapixel HD industrial camera
PC(CPU)CPU is I3-7100 with the same main frequency or above
RAMDDR4 4 GB memory or above
ROM1TB HDD or 256GB SSD or above
OSWindows 10
Temperature conditions10°C~35°C
Relative humidity40%-70% (No condensation)
Power supply220VAC
Rated power

600W
