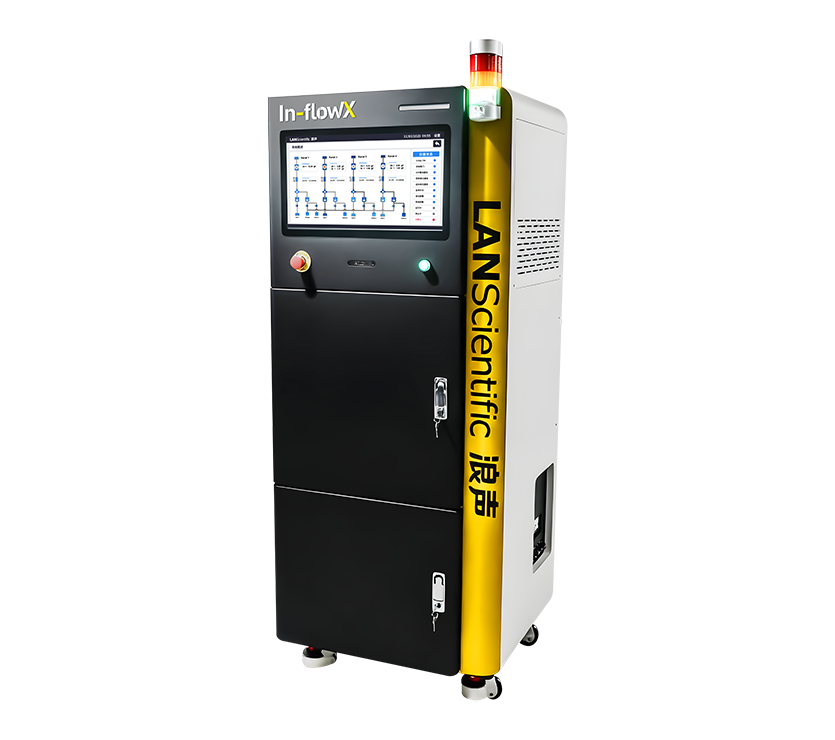

In-flowX Multi-channel Electroplating Bath Online Monitoring System adopts advanced X-ray fluorescence (XRF) technology and provides an innovative monitoring solution for the electroplating industry. Designed specifically for the continuous monitoring of multiple points, multiple lines and various metal elements, the equipment can accurately and efficiently meet the complex needs of the electroplating industry.

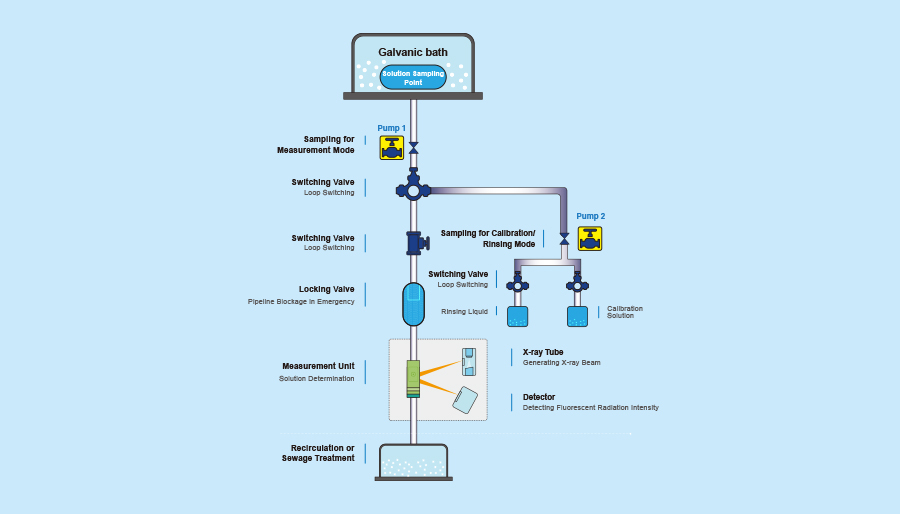

In-flowX Multi-channel Electroplating Bath Online Monitoring System has completely changed the traditional detection mode of electroplating bath composition. It can not only meet the requirements of online electroplating bath (liquid flow) composition detection, but also detect a variety of chemical elements simultaneously, with a detection limit covering from ppm level to weight percentage (wt%) concentration. In addition, it integrates a number of functions such as automatic sampling, automatic calibration, real-time analysis, intelligent alarm and self-cleaning. It can quickly obtain accurate data without tedious offline sampling and laboratory analysis, greatly improving the monitoring efficiency and data accuracy.
With the characteristics of intelligence, accuracy and high efficiency, In-flowX helps electroplating enterprises improve product quality, optimize processes and reduce costs. It is an ideal choice for moving towards intelligent production and provides strong support for the sustainable development of the industry.

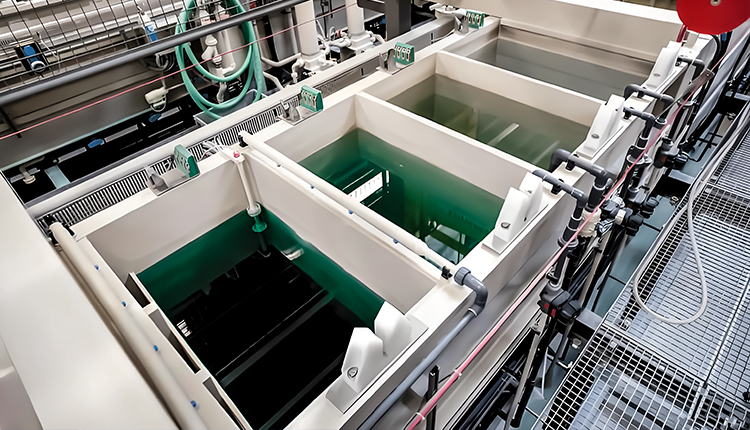

Dynamic detection of main salt ions, impurities and additives in electroplating, pickling and pre-treatment tanks, supporting a variety of metals (such as copper, nickel, zinc, etc.) and composite plating processes. |
Real-time monitoring of liquid metal ion concentration and impurities in each key process section such as curing, roughening and ashing in copper foil production to ensure copper foil quality and process stability. |

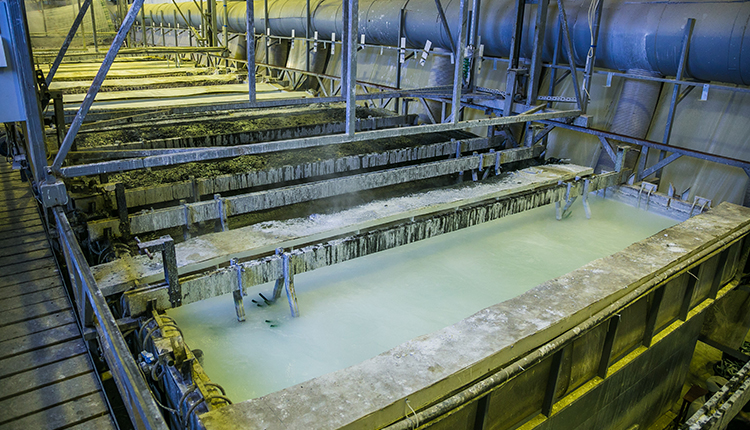

Analysis of metal ion concentration in solvent extraction process, helping process optimization and improvement of solvent recovery rate. |
For special complex processes or non-standard production lines, it supports the design of multi-point sampling architecture and multi-tank synchronous early warning mechanism, building a customized and integrated quality risk prevention and control system for high-demand customers. |
| Analysis of the layer number of | X-ray fluorescence technology |
| Dimensions (LxWxH) | 750mm x 600mm x 1750mm |
| Element Range | Cu, Ni, Zn, Sn, Au, Ag, Pb, Fe and dozens of other elements can be flexibly expanded |
| Content Range | ppm to 100% |
| Measurement Accuracy | Error≤5% |
| Supported Channels | 1~4 channels (customizable) |
| Working Mode | Continuous automatic monitoring |
| Operation Interface | Computer control, with self-diagnosis and setting functions, real-time status monitoring function |
| Measurement Ambient Temperature | English operation interface, touch screen operation |
| Measurement Ambient Humidity | -40~50℃ |
| Host Working Ambient Temperature | 0℃~40℃ |
| Host Working Ambient Humidity | 30%RH~60%RH |
| Power Supply | 220VAC±10%，50Hz±1Hz |
