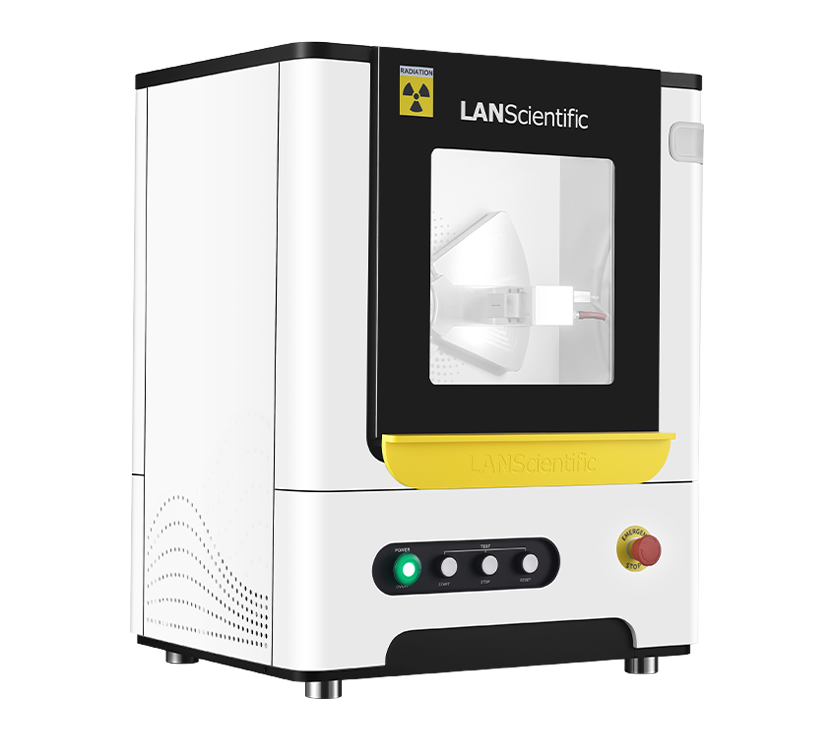

The FRINGE EVS desktop X-ray diffractometer is a high-performance, versatile scientific instrument designed for materials science research and industrial quality control.
All-in-One design with powerful performance: The FRINGE EVS is equipped with an advanced DPPS high-resolution detector with exceptional ultra-high energy resolution. It brings unprecedented precision and power for analytical research. Additionally, the FRINGE EVS has a built-in high-efficiency water-circulation cooling system, which saves a lot of space, and can be easily integrated into office desktops or laboratory. This design exemplifies intelligent and efficient space utilization.
Accurate and efficient across a wide range of applications: FRINGE EVS integrates X-ray diffraction (XRD) technology with its own analytical software to quickly and accurately characterize and quantitatively analyze the physical phases of various samples, including powders, lumps, and thin films. It provides in-depth analysis of crystal structure, material composition, and degree of crystallinity. With its exceptional precision, accuracy, and stability, along with its versatility, FRINGE EVS offers unparalleled convenience and efficiency to users, making it an ideal choice for both scientific research and industrial production.
Battery Materials |
Film material |
Biopharmaceutical |
Research and Education |

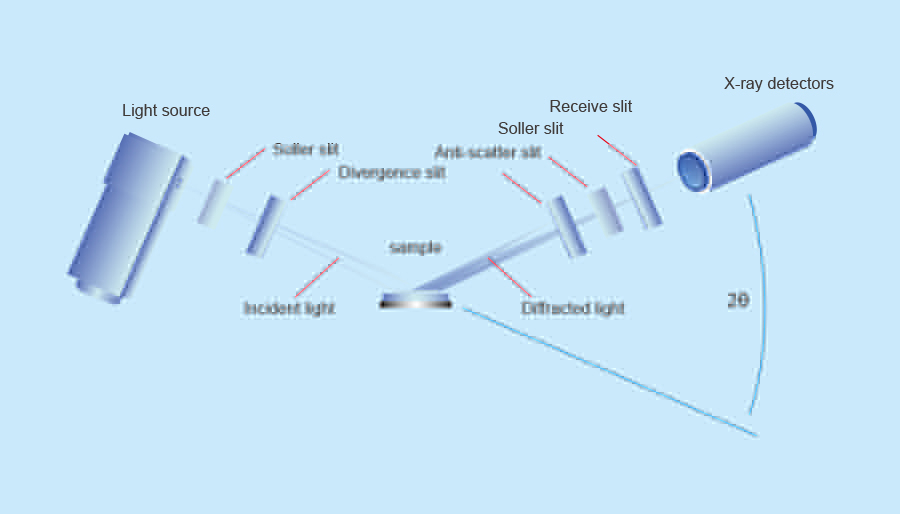

| Goniometer | θ-θ vertical goniometer, diffractive circle radius 150mm |
| 2θ Measuring range | -3° - +150° |
| Precision | The deviation of ＜±0.02° in the full spectrum |
| FWHM | <0.04°2θ |
| Sola slit | The integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms |
| Detector | DPPS |
| X-Ray tube | Cermet X-Ray tube, with maximum power of 2.2KW, focus: 1mm x 10 mm, default configuration cu target, optional Cu target |
| High Voltage Generator Power | The maximum output power of the high voltage generator is 1200W |
| Size | 580mm x 450mm x 680mm（L×W×H） |
| Weight | About 120 KG (depending on the actual configuration) |
| Power Supply | 220V±10V, 50Hz |
| Heat dissipation | Internal water circulating cooling system |
| Interface | The compact home wall plug provides power, and the USB interface connects to the PC for controlling the XRD |
| Air source | A 2-way air supply interface is available for in-situ analysis or atmosphere protection |
| Security | The FRINGE EVS has an air spring large window lift door, which can observe the in-situ analysis process without dead angle, and can effectively shield X-Rays. It has a protection and safety interlock device that automatically cuts off during the test process. The operation interface has the function of closing the sample compartment |
| Cloud service capabilities | FRINGE EVS uses a synchronizable mobile APP service to support card management of diffraction data and access to knowledge management systems |
| CrystalX software | LANScientific has developed a special crystal analysis software CrystalX for FRINGE EVS. After obtaining diffraction data, CrystalX automatically conduct phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, no manual retrieval, no need to buckle the background, no need to smooth, no need to manually peak, just need to click "start testing", the rest to the CrystalX software |
