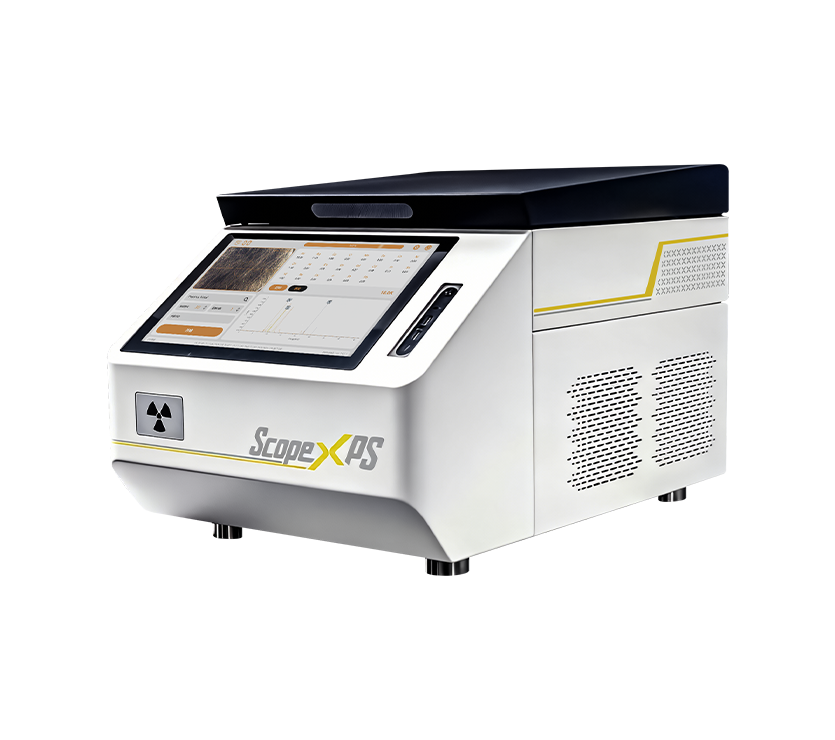

ScopeX PS8 All-in-One High-End Multi-Functional Gold Analyzer is an integrated intelligent analytical device designed specifically for multi-functional applications in the precious metal testing field. The instrument features an integrated design, requiring no external computer. It is equipped with an 11.6-inch large capacitive touchscreen — plug in and use, with convenient operation.
In terms of hardware, it is equipped with a large-area FSDD detector, offering ultra-high count rates and excellent energy resolution. It can accurately capture the characteristic signals of trace impurities in precious metals such as gold, silver, platinum, and palladium. Paired with an automatic XY moving stage, it enables multi-point automatic scanning detection, making it particularly suitable for coating uniformity evaluation and elemental mapping (distribution) analysis.
In terms of software, the instrument is configured with proprietary intelligent analysis software, capable of intelligently adapting to various sample forms including pure gold, karat gold, coated samples, gold-over-silver, gold-over-copper, and complex alloys — without the need for frequent calibration. Accurate test results can be obtained with just one click.
Suitable for applications including jewelry testing, precious metal recycling, refining quality control, pawnshop evaluation, electroplating solution monitoring, and jewelry appraisal, the ScopeX PS8 is an ideal choice in the field of high-end gold analysis.
Accurately determines the major content and impurity elements of precious metals such as gold, silver, platinum, and palladium. Built-in adulterant identification function automatically alerts to abnormal signals of rhenium, tungsten, iridium, etc. Supports automatic matching of international precious metal grades and rapid K-value conversion. Suitable for jewelry stores, pawnshops, recycling sites, refineries, and similar scenarios. |

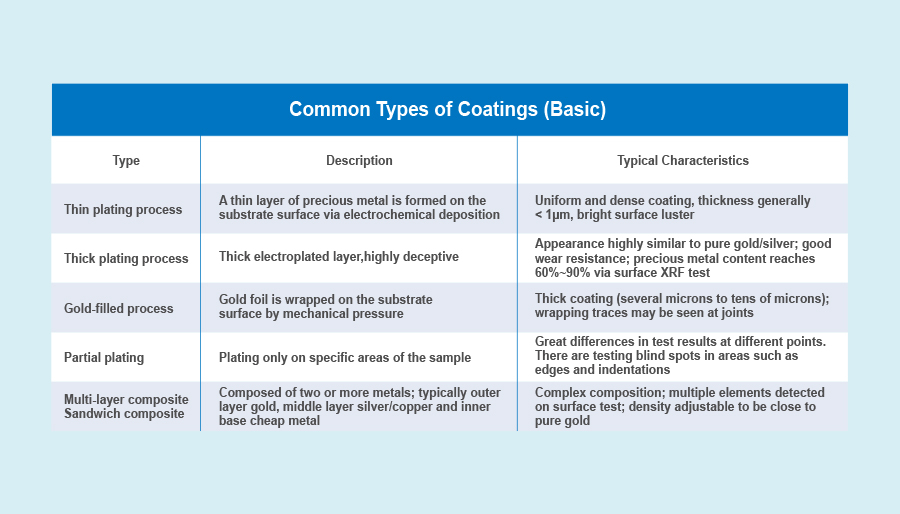

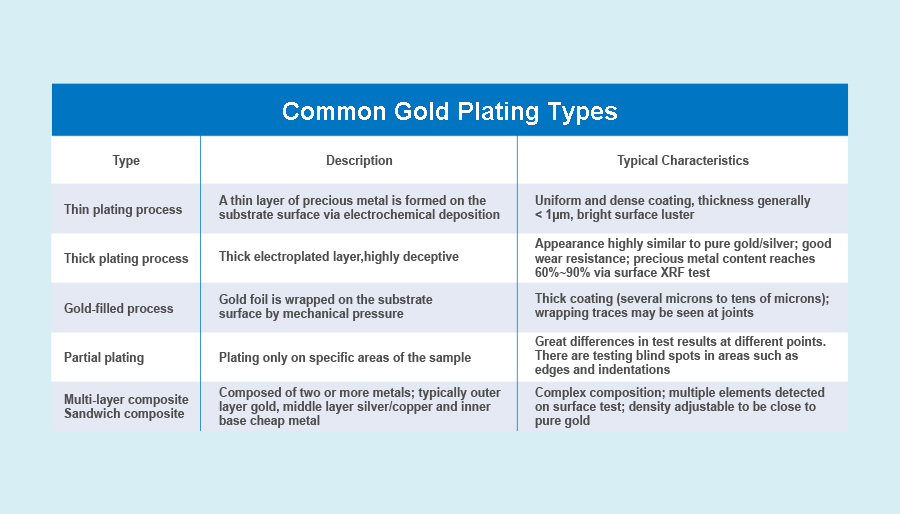

Supports thickness measurement and composition analysis of single-layer and multi-layer metal coatings, capable of identifying common coating types such as gold plating and silver plating. For coated samples such as gold-over-silver and gold-over-copper, the system can automatically determine the coating structure, effectively distinguish between plated gold and solid karat gold, and accurately identify the base material (silver, copper, etc.), preventing the misidentification of plated items as solid gold. Suitable for applications including jewelry coating inspection, gold/silver plating process control, clad sample screening, and hardware electroplating quality control. |

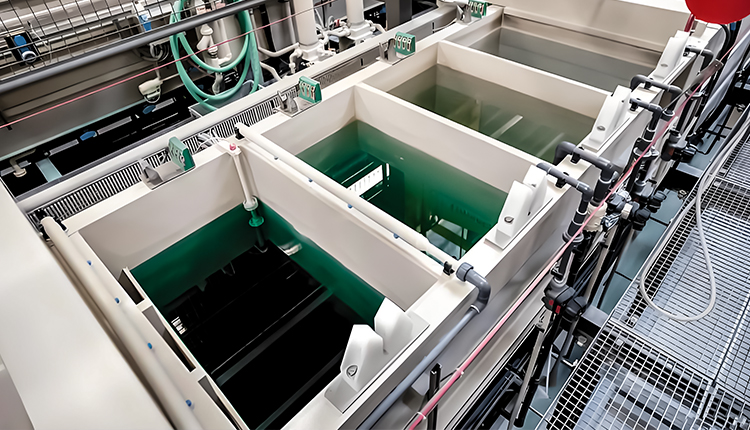

Applicable to liquid samples such as gold plating solution, silver plating solution, and electroplating bath liquid. Direct on-instrument testing is possible without complex sample preparation. It can accurately detect the concentration of major salt ions and trace impurity elements in liquids, providing a convenient online monitoring tool for electroplating production lines, precious metal solution recovery, and laboratory R&D. |
By analyzing trace elements in gemstones (such as chromium, iron, vanadium, titanium, etc.), it assists in distinguishing natural from synthetic gemstones. Suitable for common varieties including ruby, sapphire, emerald, and jadeite. The testing process is non-destructive and requires no contact with the sample surface, making it an ideal tool for jewelry appraisal institutions, auction houses, and pawnshops. |
| Size | 362mm×524mm×343mm（L×W×H） |
| Sample chamber size | 262mmx297mmx110mm（W×D×H） |
| Weight | 34.5kg |
| Display screen | 11.6-inch large capacitive touch screen |
| Detection range | Al-U |
| Optical structure | Vertical |
| Detector | Large-area FSDD detector |
| Tube window | Glass window |
| Collimator | 1.0mm collimator |
| Accuracy | ±0.01% |
| Language | Multi languages including Chinese, English |
| Data printing | Bluetooth printer |
| XY Stage | Automated XY moving stage aligns small or irregular samples, avoids manual errors, and supports programmable multi-point testing. |
| Algorithm | ScopeX PS8 adopts curve calibration method and fundamental parameter(FP) method to remove background difference, reduce error and improve test accuracy. |
| One-click test button | ‘Place the sample- -close the top cover- one-click test- -view the results’ operation is simple for non-technical personnel to analyze by themselves. |
| Camera | The built-in 5-megapixel HD CMOS color camera can not only provide users with intuitive sample positioning and image recording function, but also ensure that the X-ray accurately illuminate to the target area, improving the operation accuracy. |
| Power supply | Supports 100-240VAC, 50/60Hz |
