PeDX Family (Portable)

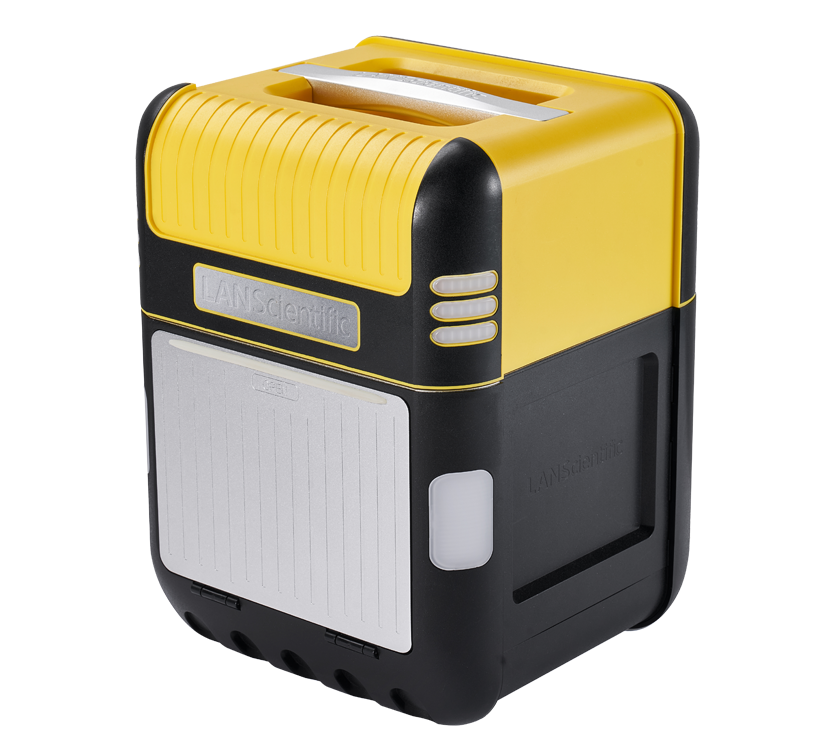

PeDX Portable XRF Analyzer

PeDX Portable XRF Analyzer

PeDX is a portable X-ray fluorescence (XRF) analyzer designed by LANScientific according to the analysis needs of users. It has the advantages of portability, fast analysis speed, good stability and high accuracy. It is mainly used in waste recycling, environmental assessment, consumer product safety, metal materials, metal jewelry, petrochemical industry, geological and mineral exploration and other fields, providing value judgment basis for product trade, processing, quality testing, safety audit and recycling in these fields.

Advantage

One-click intelligent operation

The whole analysis process can be completed in just a few seconds. The operation is simple and even non-technical people can easily use it.

Easy customization

On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.

Multiple forms of data output

Analytical data reports can be made in PDF format or Excel format. When exporting data in Excel format, you can also confirm and edit the data in detail in the table. Users can also create customized professional reports, including company logo, company address, test results, spectrogram and other sample information (such as product description, origin, batch number, etc.).

Accurate and reliable qualitative and quantitative methods

It integrates advanced algorithms such as super-FP algorithm and correction curve method of LANScientific's front, making the instrument not only faster, higher accuracy and stronger consistency of measurement.


Product Parameters

Weight4.1KG
Size200×200×268mm(L×W×H)
Sample Room Size170×130×60mm(L×W×H)
Excitation SourceUp to 50kV, 200uA X-ray tube, upper excitation power 4W, Ag/Rh target(Optional)
Detector

BOOST Si-pin/SDD(Optional)

Detection Range

Mg—U

Data Processing

Built-in 32GB storage

USB, can connect the device to the Internet, remote setting and maintenance of the instrument

Air mode

Air mode、Helium mode、Vacuum mode(Optional)

Safety

Built-in X-ray protection (automatic cut-off)

Safety interlock, can only open the instrument under the condition of power (closed performance)

Radiation indicator light

Resolution

<136eV

Operating ambient temperature

-20℃~50℃

Operating ambient humidity

10%~90% relative humidity, non-condensing

Display

5.7-inch absorbable color touch screen display

Test Time

User customize

Optional

Built-in 5-megapixel HD camera

Language

Chinese, English, etc.
