Industrial On-line Monitor

SpeBOX-1 Spectrum Box

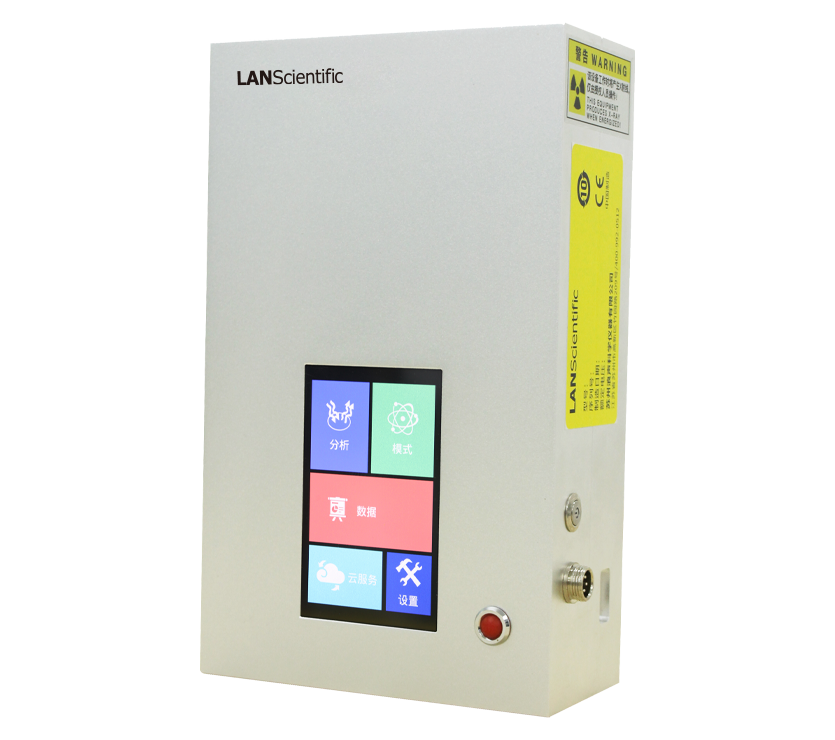

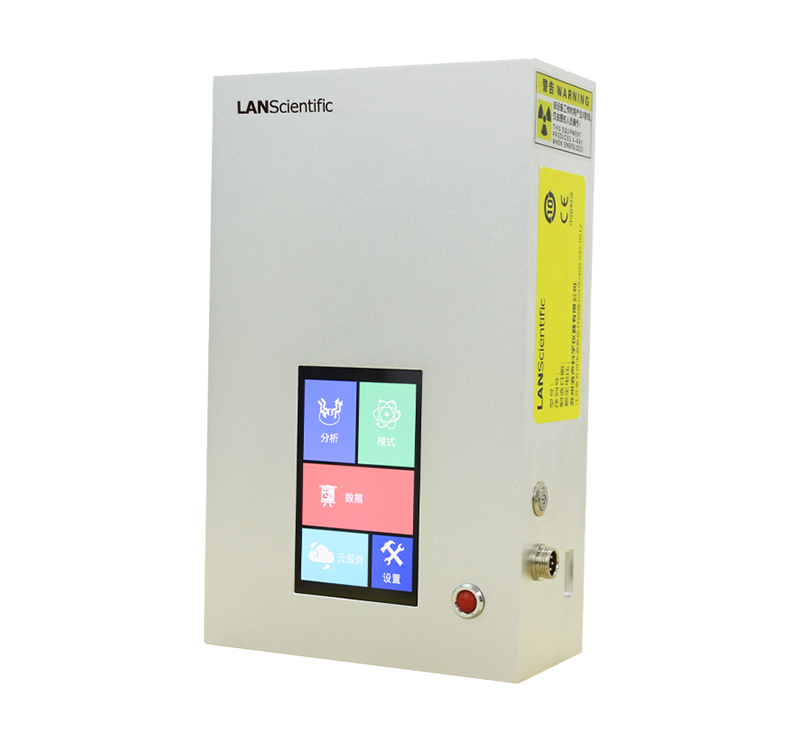

SpeBOX-1 Spectrum Box

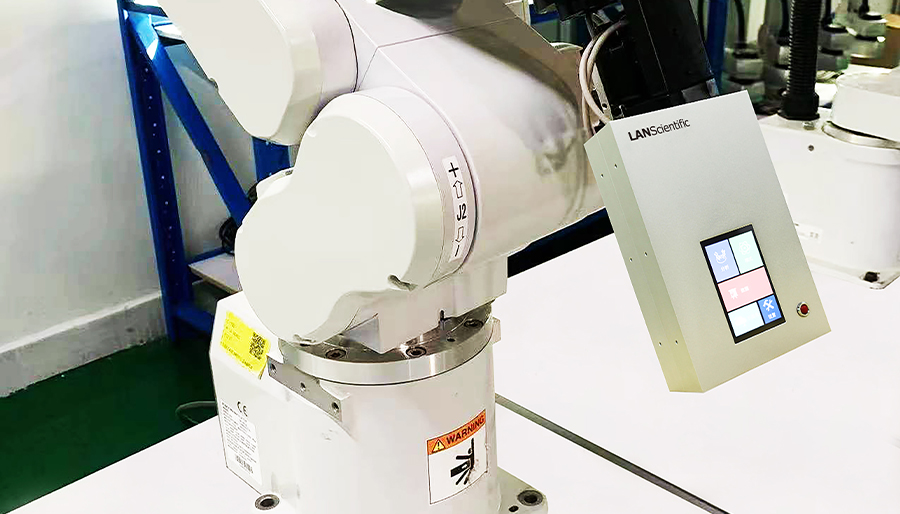

LANScientific SpeBOX-1  is a kind of testing and sorting instrument designed by LANScientific., with many years of XRF technology research and development experience, combining optoelectronics, microelectronics and computer software and other technologies. Tracking, detection and judgment of material quality is a key link in the production and screening process of enterprises in waste recycling, consumer goods, ore mining and selection. Compared with the traditional sorting method, the spectral box sorting speed is faster, higher accuracy, combined with the robot arm can be embedded in the conveyor, feeder, shunt and other automation equipment, more widely used. Through nondestructive testing of the elements and content of materials, it provides a new sorting method for recycling and quality testing industry, bringing a revolution in the sorting field!

Advantage

Increase the picking accuracy

It is more safe and reliable to test samples one by one.

Improve the picking speed

The picking speed can be increased by 60% with the same working time.

improve the work efficiency of the enterprise

Analysis data report can be made in PDF format or Excel format. On the basis of the test, you can also modify the test according to the screening needs, to achieve personalized screening of different materials and different elements. Reduce manual operation, improve enterprise work efficiency.

improve economic benefits

Reduce material consumption, improve material recovery rate, save labor, improve enterprise economic benefits and competitiveness.

Product Parameters

Weight2.5KG
Size240mm×145mm×70 mm(L×W×H)
Excitation source50kV/200uA upper limit, tube pressure tube flow can be adjusted freely, Ag target (standard), Au, W, Rh target (optional)
The detector

BOOST type SI-PIN detector

High sensitivity SDD detector (optional)

Detection range

Mg—U

Display systemIndustrial grade resistance touch screen, screen size: 4.3"
Data processing

Built-in 32GB storage

The instrument can be set up and repaired remotely

The data can be output in EXCEL and PDF format.

Users can customize professional reports, including company logo, company address, test results, spectral spectrum and other sample information

 (such as product description, origin, batch number, etc.).

Security

Waterproof and dustproof

Power supply system

9V power transformer,100 ~ 240VAC,50 ~ 60Hz,Max 40W

Temperature conditions

-10 – 50℃

The data transfer

USB, Bluetooth, WIFI, can connect the device to the Internet
