Environmental On-line Monitor

Miniature On-line Atmospheric Heavy Metal Monitor

Contributing to a green future

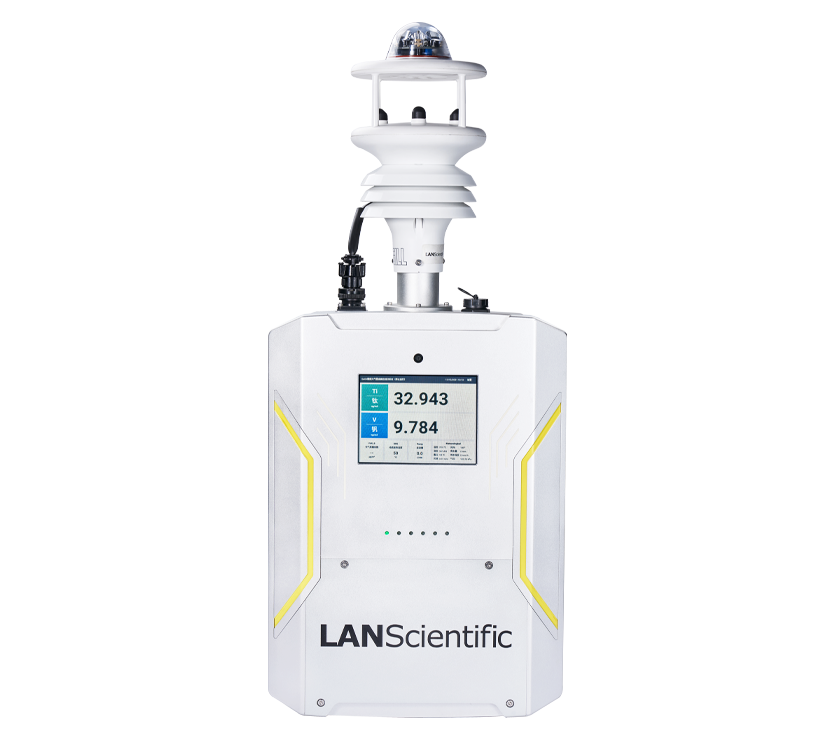

Miniature On-line Atmospheric Heavy Metal Monitor

GaOA tiny atmospheric heavy metal on-line analyzer is LANScientific co., LTD., fusion X fluorescence nondestructive testing technology, automatic air particulates enrichment technology, independent research and development of the monitoring instrument miniaturization, the advantages of small size, low detection limit, several accurate, high temporal resolution, which can realize the air particles in the heavy metals such as lead, cadmium, chromium, arsenic continuous monitoring, Suitable for grid and dense distribution, it is widely used in urban atmospheric environment monitoring, factory area unorganized emissions, traffic exhaust emission pollution gas monitoring, emergency monitoring and other fields.

Advantage

Intelligent

Compact and portable instrument, solid structure, easy maintenance, accurate and reliable monitoring data, construction cost is much lower than the standard station, suitable for large area layout fine or grid monitoring.

Low detection limit

Accurate measurement of arsenic, cadmium, chromium, antimony, mercury and other dozens of heavy metals, low detection limit of elements up to 0.01ng/m3, and other elements can be customized according to user requirements.

Automatic calibration

Built-in calibration module, XRF spectrum horizontal and vertical coordinates at the same time automatic calibration, calibration frequency can be set arbitrarily, but also built-in specific metal internal standard source, can realize automatic quality control.

Cloud platform

The equipment adopts wireless communication technology, the instrument can achieve confidential and secure communication with the server, and gather the big data of the environment into the "cloud platform".

Data transmission

The monitoring data complies with the Data transmission standard of online Automatic Monitoring (Monitoring) System of pollution sources (HJ/T 212-2005). At the same time, users can easily customize the corresponding functions according to the actual needs.

Safety

Professional multiple anti-radiation treatment, no radiation leakage in all directions when measuring instrument.

Application scenario

微型大气重金属在线分析仪(图1)

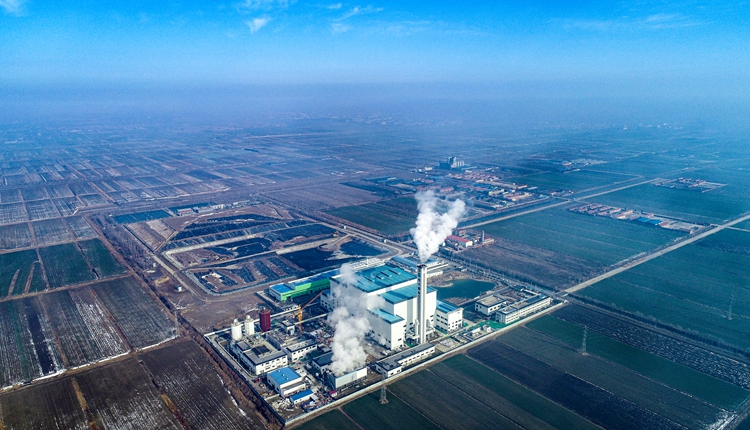

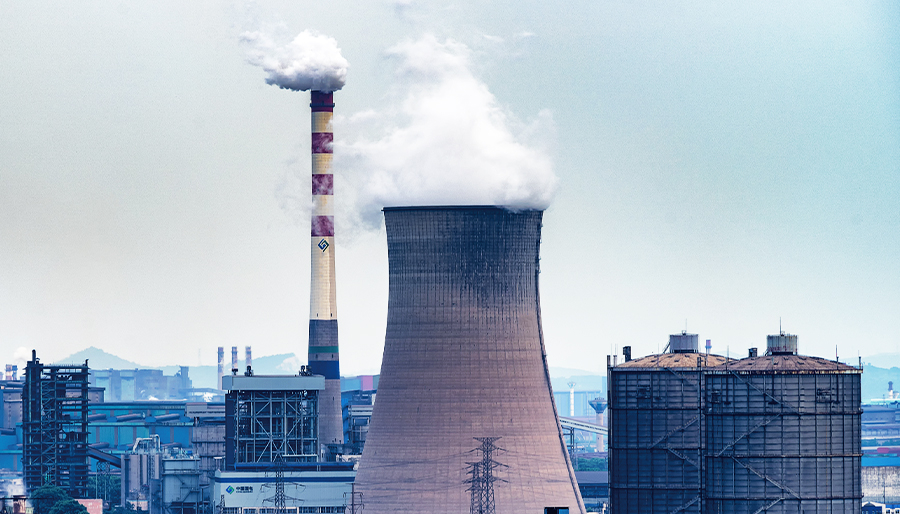

Online heavy metal detection after solid waste or garbage incineration


Miniature on-line atmospheric heavy metal monitor(图2)

Rapid detection of heavy metals in automobile exhaust


微型大气重金属在线分析仪(图3)

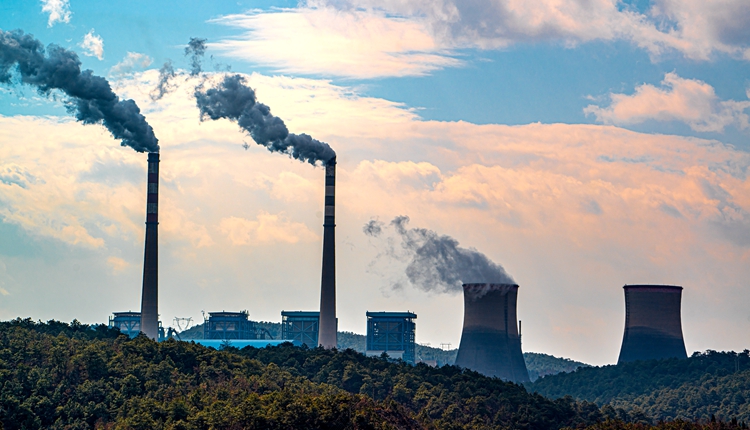

Location of pollution sources, prediction and early warning of pollution traceability

微型大气重金属在线分析仪(图4)

Other field experiment detection law enforcement







Product parameter

Working power supply220VAC±10%,50Hz±1Hz
Measuring ambient temperature-40~50℃
Measuring ambient Humidity0%RH~90%RH
Operating temperature of the host0℃~40℃
Humidity of the host operating environment30%RH~60%RH
Size300×192×706mm(L×W×H)
weight13.5KG
Linear demand>0.99
Way to work

Continuous automatic monitoring; One year of trouble-free operation and self-recovery function

installationUse the bracket to run outdoors for a long time, or fixed in the station room operation
Monitoring projectMonitor Pb , Cd, Hg , As, Cr, Cu , Zn , Ni and other 30 elements (other elements can be expanded according to the subsequent needs of users)
repetitive

HM:RSD<0.5% (Pb standard sample)

Measuring range

HM:0-100μg/m3

Minimum detection limit

HM:Ng /m³ (sampling time 1H, flow rate 16.7L/min), the increase of sampling time can reach pg level

precision

HM:<15% (Pb, Cd, As sampling time 4H)

Applicable standardsHM:US EPA IO-3.3 standard method “Detection of Heavy Metals in Environmental Particulate Matter by X-ray Fluorescence Spectrometry”
