I.Introduction

Carbon fiber, owing to its excellent properties such as high strength, high modulus, low density, and high-temperature resistance, has become an indispensable key structural material in fields including aerospace, rail transit, wind turbine blades, sports equipment, and new energy equipment. The ultimate mechanical properties and service reliability of carbon fibers and their composites depend not only on the physicochemical properties of the fibers themselves but are also closely related to their microstructure—fiber surface morphology, single-filament diameter distribution, the interfacial bonding state between fibers and the resin matrix, and the pores and defects generated during molding are all core factors determining material performance.

II. Main Characterization Requirements for Carbon Fiber

During the R&D and production of carbon fiber materials, the following types of characterization requirements mainly exist at the microscopic level:

1. Observation of Fiber Surface Morphology
   During the spinning and sizing processes of carbon fiber precursors, axial grooves may form on the surface, and defects such as scratches, particulate impurities, and uneven resin coating may also appear. These microscopic features directly affect the mechanical interlocking between the fiber and the matrix, and need to be clearly identified and evaluated through high-magnification imaging.

2. Measurement of Single Filament Diameter and Dispersion
   The single filament diameter and its uniformity are important indicators for evaluating the stability of the spinning process. Through scanning electron microscopy (SEM) imaging, statistical diameter measurements can be performed on multiple single filaments to determine batch-to-batch consistency.

3. Evaluation of Fiber–Matrix Interfacial Bonding State
   When a composite fails under load, whether interfacial debonding occurs and whether fibers pull out serve as direct evidence for judging the strength of interfacial bonding. It is necessary to observe the morphology of tensile and impact fracture surfaces and identify features such as fiber pull-out length, interfacial gaps, and matrix cracks.

4. Internal Defect Detection
   During lay-up and curing, composites are prone to problems such as pores, bubbles, resin-rich areas, and fiber orientation deviations. By observing fracture surfaces or polished cross-sections, defect positions can be located and their effects on mechanical properties can be evaluated.

5. Micro-area Composition Analysis
   Impurities on fiber surfaces, sizing agent distribution, and interfacial diffusion layers require the use of an energy dispersive spectroscopy (EDS) module for qualitative and elemental mapping analysis of micro-area elements, to assist in determining the source of foreign matter and the interfacial reaction conditions.

III. SuperSEM Efficiently Achieves Key Characterization of Carbon Fiber

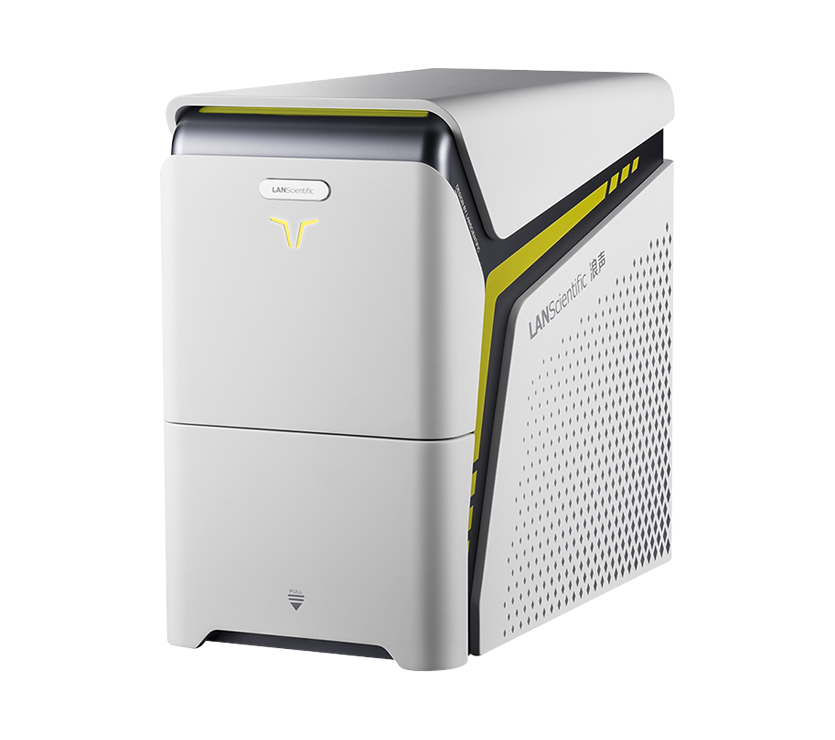

The SuperSEM desktop scanning electron microscope integrates an electron optical system and energy dispersive spectroscopy (EDS) analysis capability into a compact chassis. While ensuring image quality, it greatly lowers the barrier to use, providing an efficient and convenient microscopic characterization tool for the daily R&D and quality control of carbon fiber materials.

Learn More

IV. Application Case

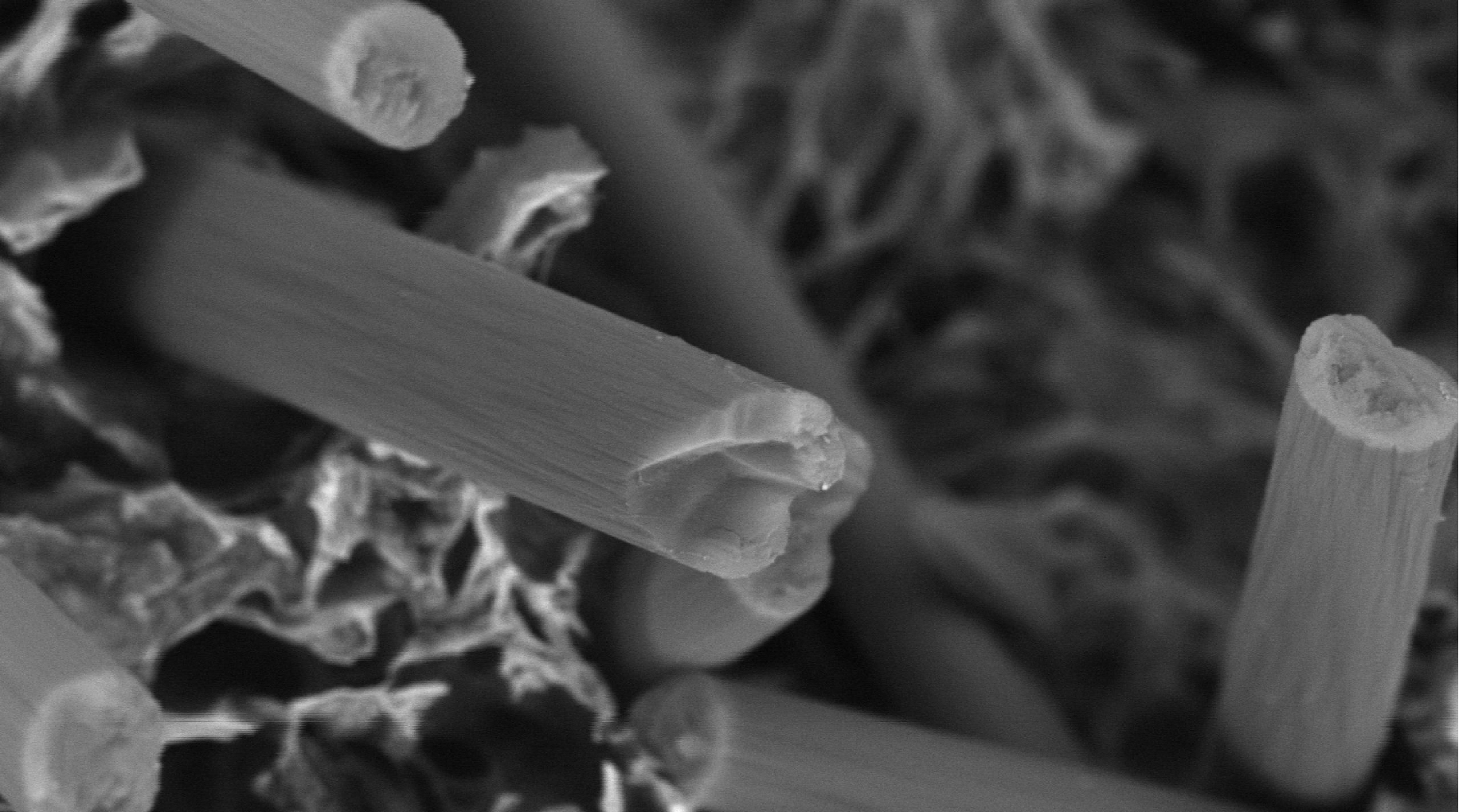

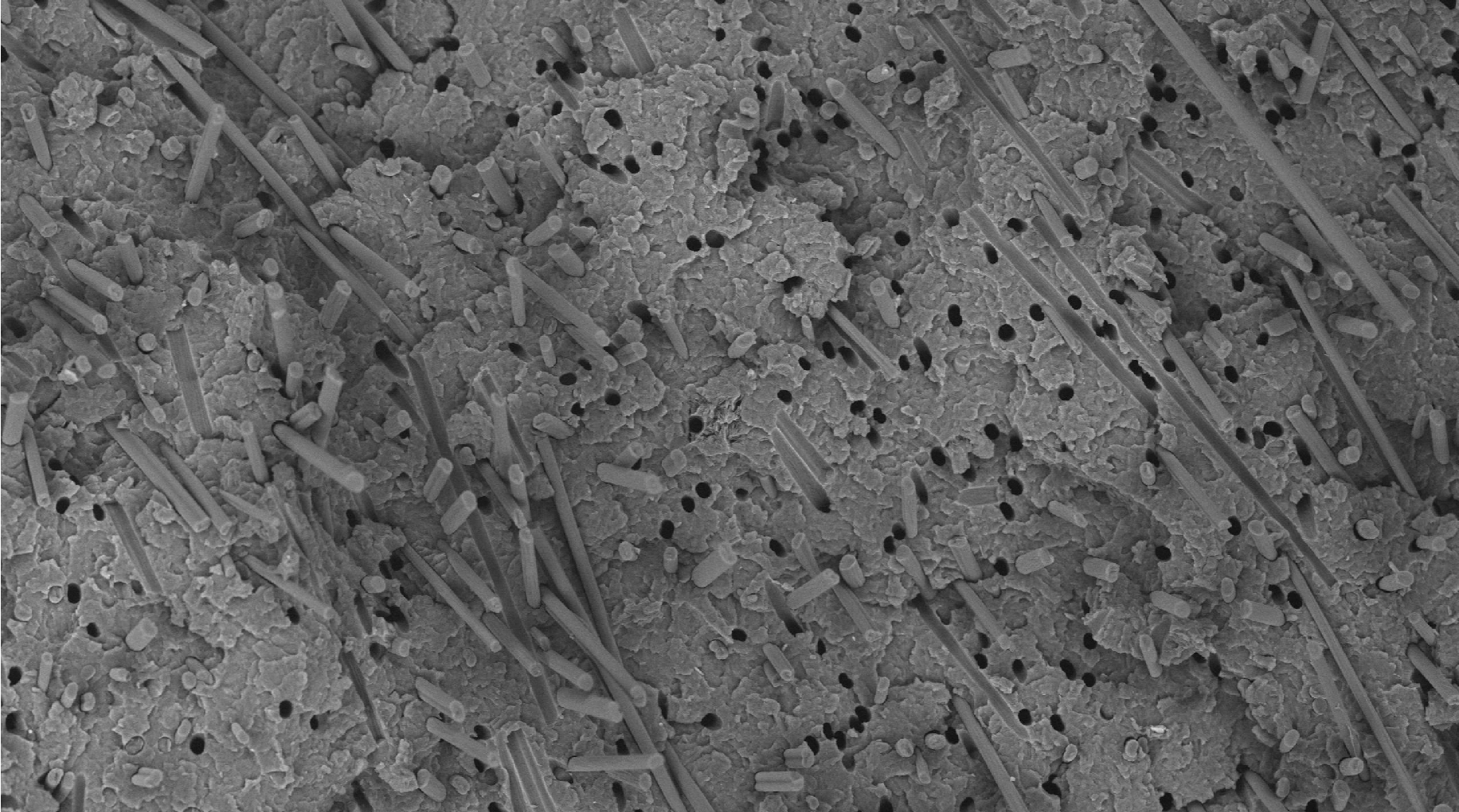

A carbon fiber manufacturer used the SuperSEM desktop scanning electron microscope for inspection and analysis. The device’s high-definition imaging clearly presents the surface texture, grooves, and tiny defects of carbon fibers, allowing intuitive assessment of the fiber surface forming quality. At the same time, it can accurately distinguish individual fibers and quickly complete fiber counting and distribution uniformity statistics, solving the problems of blurred imaging and difficulty in distinguishing fibers associated with traditional equipment. In addition, the device can fully and clearly display the cross-sectional morphology of carbon fibers, allowing intuitive observation of cross-sectional regularity, compactness, and microscopic defects such as voids and cracks, thereby providing an intuitive and reliable microscopic basis for enterprises to evaluate fiber quality and adjust production processes.

V. Conclusion

In the analysis of carbon fiber materials, the SuperSEM desktop scanning electron microscope can meet multidimensional characterization needs ranging from precursor surface observation, single filament diameter measurement, and composite cross-section interface evaluation to internal defect inspection and micro-area elemental analysis. The device offers simple sample preparation, a low operational threshold, and high testing efficiency. It can be used not only for basic research on carbon fiber materials in universities and research institutes, but also for routine quality monitoring and failure analysis by manufacturing enterprises in workshop laboratories. As the carbon fiber industry moves toward high performance and domestic production, SuperSEM provides stable and efficient microscopic analysis support for material R&D and quality control.
