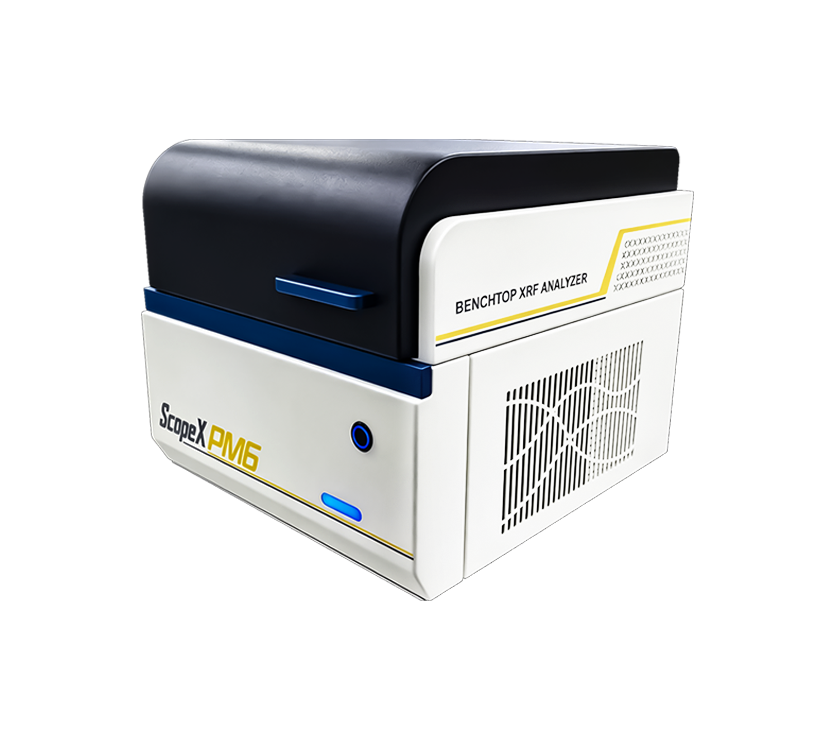

The ScopeX PM6 desktop high-end gold analyzer is the flagship model in LANScientific’s desktop gold testing product line, featuring a more compact body within the lineup. As a benchmark compact desktop precious metal testing instrument, it adopts a compact, all-in-one design that takes up little benchtop space, making it easy to fit space-limited scenarios such as jewelry store counters, gold recycling outlets, and small laboratories. It is also equipped with a large-capacity sample chamber, allowing gold bars, large ornaments, complete jewelry sets, and other large samples to be placed directly for testing, balancing lightweight deployment with broad sample compatibility.
The ScopeX PM6 can non-destructively and rapidly complete precious metal purity determination and elemental quantitative analysis, without damaging samples, delivering stable and reliable results. Its built-in intelligent algorithm accurately screens for rhenium, tungsten, and other high-incidence adulteration elements in the precious metal industry, effectively reducing the risk of accepting counterfeit gold. The software is easy to operate with one-click test start, so new users can get started quickly. Test reports can be automatically saved, exported, and printed, providing an efficient and convenient testing solution for in-store gold buying and incoming material quality inspection.
For in-store fineness verification of jewelry on sale and testing for jewelry trade-in services. It non-destructively tests the fineness of precious metals such as gold, platinum, palladium, and silver jewelry. The testing process is visualized, and standardized test reports can be issued, enhancing transaction transparency and strengthening consumer trust. |
Rapid compositional analysis is performed on recycled jewelry, gold bars, gold coins, and precious metal ornaments. It accurately screens for concealed adulterants such as tungsten and rhenium, rapidly determines precious metal fineness, assists with transaction valuation, and effectively mitigates the risk of failing to detect counterfeit gold during gold purchases. The large-capacity sample chamber allows large decorative pieces and complete jewelry sets to be placed directly for testing. |
It is used for incoming inspection of precious metal raw materials, sampling inspection of semi-finished products, and factory quality control of finished products. It verifies whether the compositions of precious metal materials such as gold plating, karat gold, and platinum alloys meet process standards. It enables rapid screening of batch samples, controls the quality of incoming materials and finished products, and reduces the flow of nonconforming products into the market. |
Non-destructive preliminary screening of precious metal samples is carried out to determine the composition and purity of jewelry, commemorative coins, and precious metal ornaments. Test data can be archived for the long term, and standardized PDF reports can be generated to meet basic quality inspection requirements. |
| Size | 360mm x 414mm x 342mm（L×W×H） |
| Sample chamber size | 297mm x 265mm x 123mm（W×D×H） |
| Weight | 31.2kg |
| Detection range | K-U |
| Optical structure | Vertical |
| Detector | Si-PIN detector |
| Tube window | Glass window |
| Collimator | Equipped with 2.0mm collimator to reduce background noise,improve resolution and accuracy. |
| Accuracy | ±0.03% |
| Language | Multi languages including Chinese, English |
| Data printing | Bluetooth printer |
| Algorithm | ScopeX PM6 adopts curve calibration method and fundamental parameter(FP) method to remove background difference, reduce error and improve test accuracy. |
| One-click test button | ‘Place the sample- -close the top cover- one-click test- -view the results’ operation is simple for non-technical personnel to analyze by themselves. |
| Camera | The built-in 5-megapixel HD CMOS color camera can not only provide users with intuitive sample positioning and image recording function, but also ensure that the X-ray accurately illuminate to the target area, improving the operation accuracy. |
| Power supply | Supports 100-240VAC, 50/60Hz |
