  • XRD Detection - Identification of montmorillonite powder and impurities

    Technical Articles | Date: 2025-08-27 | Read:

1. Drug Sample Information


In this experiment, FRINGE desktop X-ray diffractometer was used to analyze the diffraction of montmorillonite powder produced by a company.


2. Drug Pretreatment Steps


(1) Weigh approximately 4g of montmorillonite powder, add 50ml of water, stir, filter, dry the filter residue at 105°C, then grind into fine powder and sieve through 200-mesh.

(2) Take a suitable amount of the processed montmorillonite sample from step (1). Place it on a sample holder. Then put the holder into a desiccator. The desiccator contains a saturated sodium chloride solution. The relative humidity is about 75% at 20°C. Keep it in the desiccator for about 12 hours.

(3) Flatten the sample on the holder from step (2). Perform the measurement according to the X-ray diffraction method. Refer to General Rule 0451 (Powder X-ray Diffraction Method).



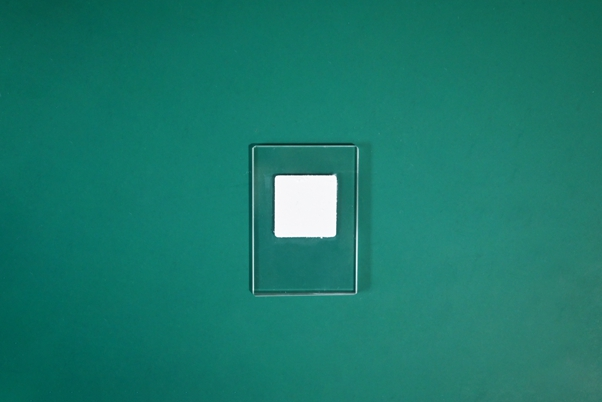

XRD Detection - Identification of montmorillonite powder and impurities(图1)


3. Test parameter setting


Instrument model: FRINGE【Full Spectrum Scan Settings】【Local Scan Settings】
Target:CuAngle range:2-80°Angle range:15-35°
Pipe pressure:40kVStep width:0.05°/stepStep width:0.02°/step
Pipe flow:40mATest time:0.6s/stepTest time:1.2s/step


4. Analysis results


(1) Identification of Montmorillonite


Compare the characteristic peaks of montmorillonite in the map5.8°19.8°
61.8°
Montmorillonite powder5.8562°19.8224°61.8800°



XRD Detection - Identification of montmorillonite powder and impurities(图1)

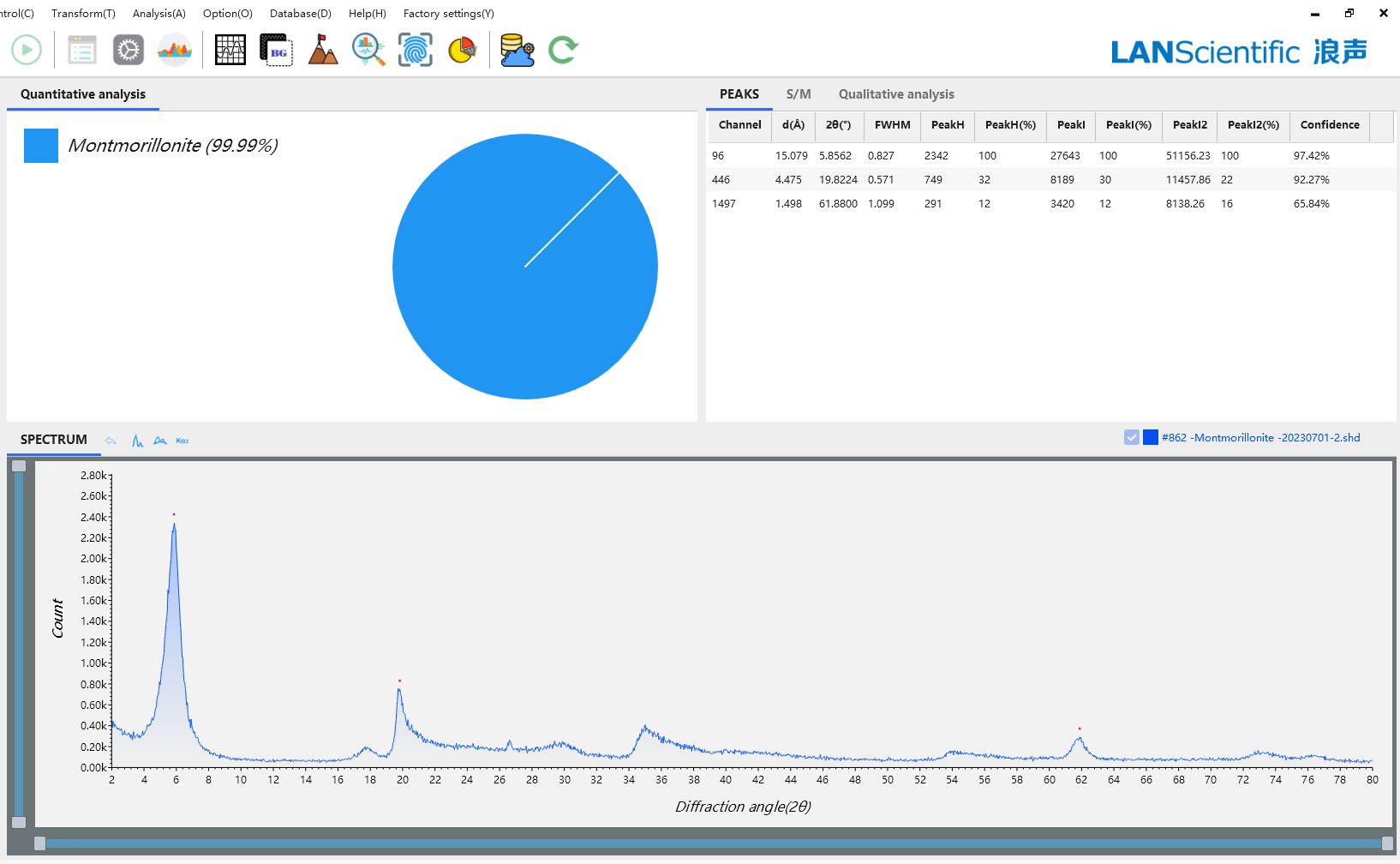

Montmorillonite scattering characteristic peak display map



Conclusion


Montmorillonite Powder Identification: The X-ray powder diffraction pattern of the test sample shall match the characteristic peaks of montmorillonite reference material [diffraction angles (2θ) approximately 5.8°, 19.8°, and 61.8°].

Analysis of the drug's diffraction pattern revealed peaks at 5.8562°, 19.8224°, and 61.8800°, demonstrating essential consistency with the characteristic peaks of montmorillonite.



(2) Cristobalite and Other Impurities Identification



XRD Detection - Identification of montmorillonite powder and impurities(图2)

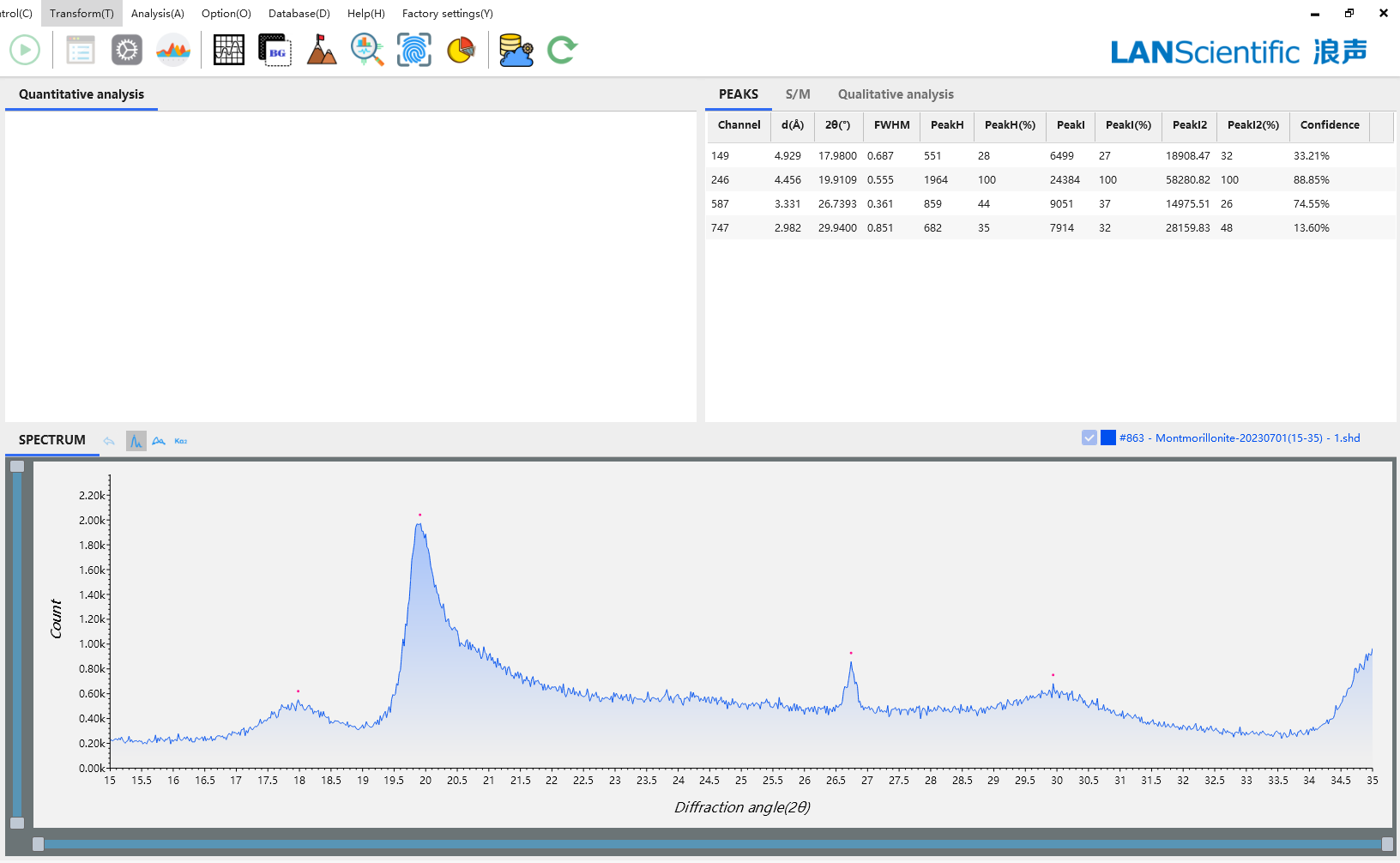

Local diffraction map of montmorillonite scattering (unbuckled background)



XRD Detection - Identification of montmorillonite powder and impurities(图3)

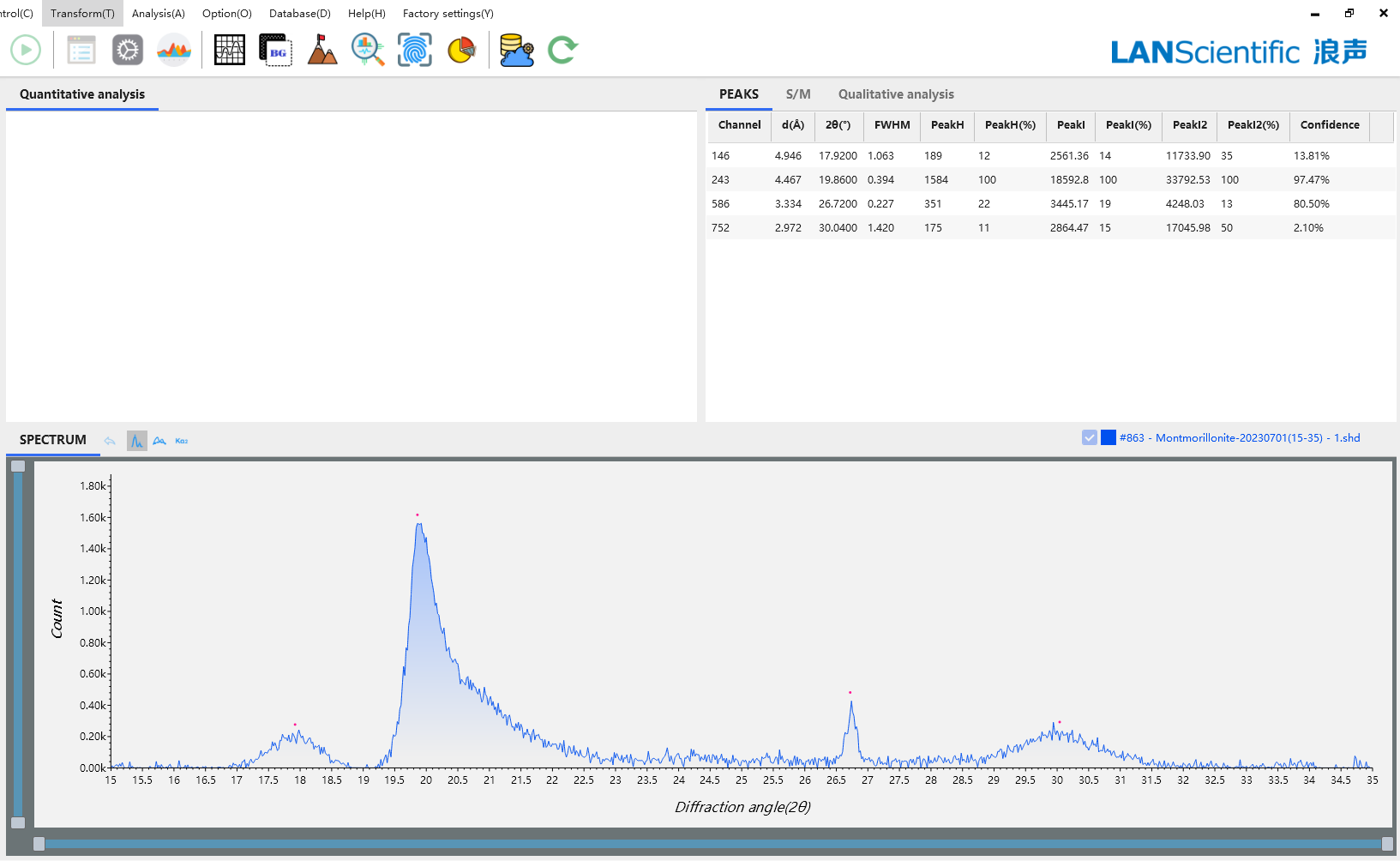

Partial X-ray Diffraction Pattern of Montmorillonite Powder (Without Background Subtraction)


【Result Determination】


Cristobalite and Other Impurities:

Measure the peak-to-baseline heights of the montmorillonite characteristic peak (2θ ≈ 19.8°), cristobalite diffraction peak (2θ ≈ 22.0°), and other impurity diffraction peaks. Calculate the ratio of each peak height relative to the montmorillonite characteristic peak height. In the X-ray powder diffraction pattern of the test sample:

-The peak height ratio of the cristobalite diffraction peak shall not exceed 50%.

-The peak height ratio of any other single impurity diffraction peak shall not exceed 70%.


Through analysis of the 15-35° diffraction pattern of montmorillonite powder, the following characteristic peaks are observed:

-Montmorillonite characteristic peak at 19.80° with a peak height of 1581

-Quartz characteristic peak at 26.64° with a peak height of 408

The quartz/montmorillonite peak height ratio is calculated as: 25.81% < 70%.

The impurity peak/montmorillonite peak height ratios at 2θ=17.84° and 29.94° are 11.0% and 11.64% respectively, both less than 70%.

These results indicate that the drug's impurity control meets the standard.
