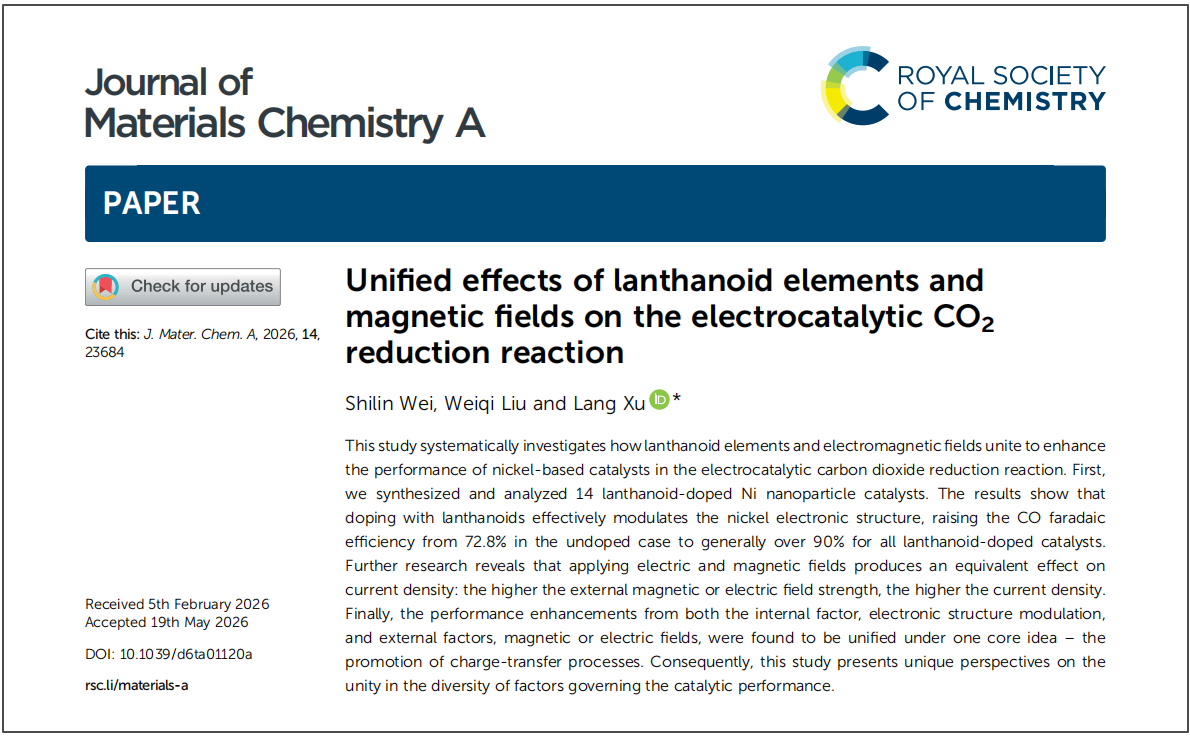

Recently, a research team from China University of Mining and Technology （CUMT‌）published a significant study on CO₂ electrocatalysis for carbon neutrality in the authoritative materials journal Journal of Materials Chemistry A. The team systematically investigated 14 non-radioactive lanthanide-doped nickel-based catalytic materials and, for the first time, established an integrated catalytic mechanism incorporating intrinsic lanthanide doping modification and external electromagnetic field enhancement. The LANScientific FRINGE D200 desktop X-ray diffractometer provided essential characterization support for crystal structure and phase evolution analysis in this study.

Research Highlights

Electrocatalytic CO₂reduction (eCO₂RR) is a core technology for achieving artificial carbon cycling and integrating renewable energy. However, pure nickel-based catalysts suffer from the industry-wide challenge of low CO product selectivity. In this study, the research team prepared a full series of lanthanide-doped nickel-based nanocatalysts, achieving dual breakthroughs in catalytic performance and establishing a novel unified theoretical mechanism:

(1) Lanthanide doping significantly enhances CO catalytic selectivity

Due to their larger atomic radii, lanthanide elements induce lattice expansion in nickel upon doping, precisely modulating the electronic structure of nickel active sites. Under identical testing conditions, the CO faradaic efficiency of pure nickel catalysts was only 72.8%. After lanthanide modification, all doped samples achieved CO selectivity exceeding 90%, with Ni-Er and Ni-Tm systems exhibiting the best performance—faradaic efficiency reaching 98.4%. The average charge transfer resistance of the catalysts was reduced by 47.3%.

(2) Electric and magnetic fields equivalently enhance catalytic activity

Both external electric and magnetic fields effectively increase the current density of CO₂ reduction, with the enhancement effect strengthening as field intensity increases. Upon application of a constant 1T magnetic field, the average charge transfer resistance of the catalytic system decreased by 20.3%.

(3) Bridging the theoretical boundary between material modification and external field regulation

The study confirms that the two modification pathways—lanthanide doping and electromagnetic field regulation—share a unified underlying mechanism: both enhance eCO₂RR catalytic performance by accelerating interfacial charge transfer efficiency. Combined with XRD, TEM, and other characterization techniques, it was verified that the lanthanide-doped nickel-based catalysts maintain stable crystal structures under electrolytic conditions, demonstrating significant potential for large-scale industrial applications.

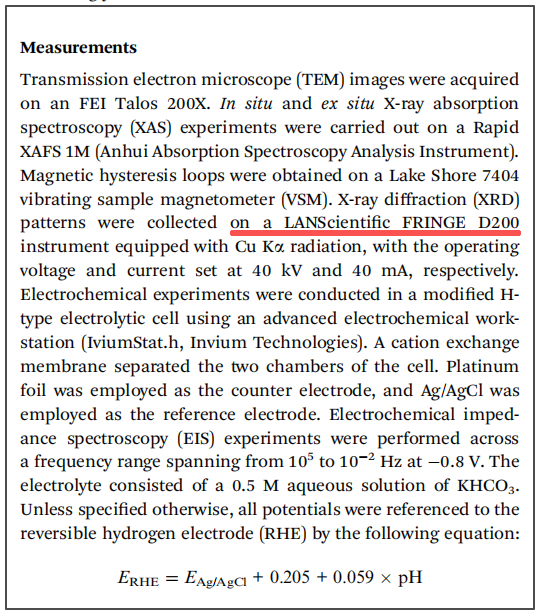

Core Role of the FRINGE D200

In this study, the FRINGE D200 desktop X-ray diffractometer served as the core instrument for phase and crystal structure characterization, playing the following key roles:

(1) Precise identification of the nickel metal matrix, rare-earth oxides, and LnNiₓ intermetallic compounds, directly confirming the successful incorporation of lanthanide elements into the nickel lattice.

(2) Quantitative analysis of lattice expansion induced by rare-earth doping, cross-validated with TEM data.

(3) Comparative XRD analysis of samples before and after electrolysis, verifying the long-term structural stability of the catalyst crystals.

(4) Unified analysis of crystal structure evolution across the entire series of samples, eliminating structural differences as a variable and identifying electronic structure modulation as the core driver of performance enhancement.

Conclusion

Electrocatalytic CO₂ reduction is a key technological pathway for achieving carbon cycling and renewable energy storage. XRD crystallographic analysis remains an indispensable core characterization tool in catalyst material R&D for phase identification, structural evolution tracking, and structure-activity relationship elucidation.

As an innovative enterprise in X-ray diffraction instrumentation, LANScientific has long been committed to advancing core XRD technologies, providing comprehensive solutions with high precision, high stability, and intelligent operation for universities, research institutions, and new energy enterprises. From fundamental academic research to frontier mechanistic exploration, we consistently empower the development of new energy materials, carbon-neutral catalytic mechanism research, and high-end manufacturing quality control with precise and reliable XRD data, delivering solid support for scientific decision-making.
