ScopeX RoHS(Benchtop Without Vacuum)

RoHS Analyzer

RoHS Analyzer

The ScopeX CSA consumable analyzer is an integrated halogen-free X-Ray fluorescence analyzer designed for RoHS/ELV restricted screening and analysis of hazardous elements. Equipped with an intelligent vacuum system, the ScopeX CSA Consumable Analyzer uses low energy X-rays to stimulate light elements and detect any halogen-free hazardous substances. It is also suitable for the analysis of all elements and RoHS. It has the advantages of high analysis precision, wide range of analyzable elements, simple and fast test, etc. The results are reliable and accurate, in line with the international standard.


Advantage

High sensitivity

High-power and efficient X-Ray tube combined with high-performance Si-PIN detector brings extremely low detection limit, and can quickly and accurately detect trace harmful substances. Sample compliance monitoring can be completed efficiently and with high quality with only one instrument.

Accurate and reliable

Combined with XRF analysis software, experience coefficient method, fundamental parameter method (FP) and other analysis methods, the accurate performance of the test data is guaranteed.

Screening of hazardous substances

ScopeX provides screening and analysis of hazardous metals restricted by environmental regulations such as RoHS/ELV. Halogen-free analysis can also be performed with standard halogen detection capability. More element detection can be customized as required.

Application scenario

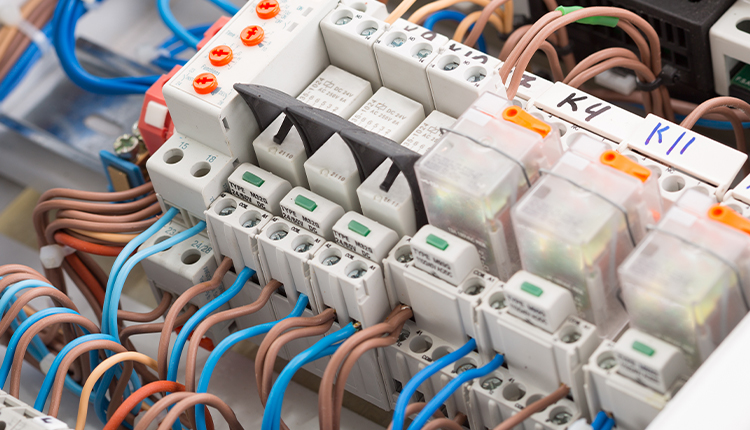

ROHS有害物质分析仪(图1)

Products controlled by RoHS directive

Large household appliances, small household appliances, information technology and communication equipment, power tools, toys and other equipments

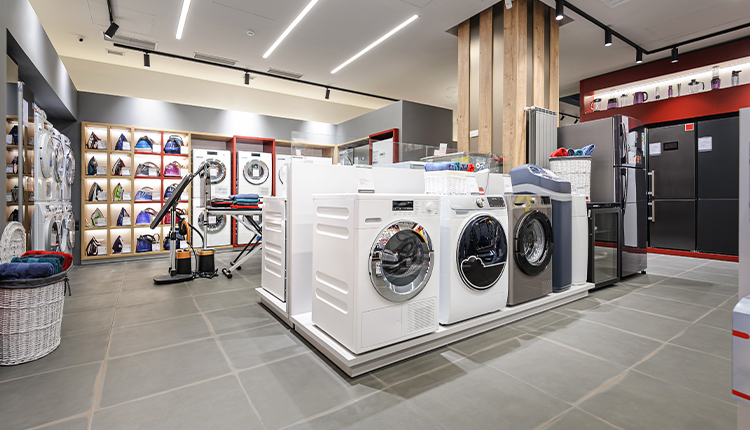

ROHS有害物质分析仪(图2)

Halogen-free products controlled by the directive

Products with flame retardants containing Cl, Br and other elements as raw materials

ROHS有害物质分析仪(图3)

Screening and analysis of ELV instructions

Structural analysis of various mechanical parts and detection of coating thickness and adhesion of chemical synthesis outer film

Product Parameters

Range of elementNa—U
Sample room size365×300×78mm(L×W×H)
Maximum sample weight0-2.5KG
Cover openAutomatic
Mainframe size570×400×400mm
Weight47KG
X-ray tubeHigh power side window X-ray tube
VoltageUp to 50kV
CurrentMaximum 1mA
Cooling methodAir cooling
TypeSi-pin/SDD(Optional)
Sample observation5 megapixel HD industrial camera
CPU is I3-7100 with the same main frequency or above
RAMDDR4 4 GB memory or above
ROM1TB HDD or 256GB SSD or above
OSWindows 10
Temperature conditions10°C~35°C
Relative humidity40%-70% No condensation
Power supply220VAC
Rated power100W
