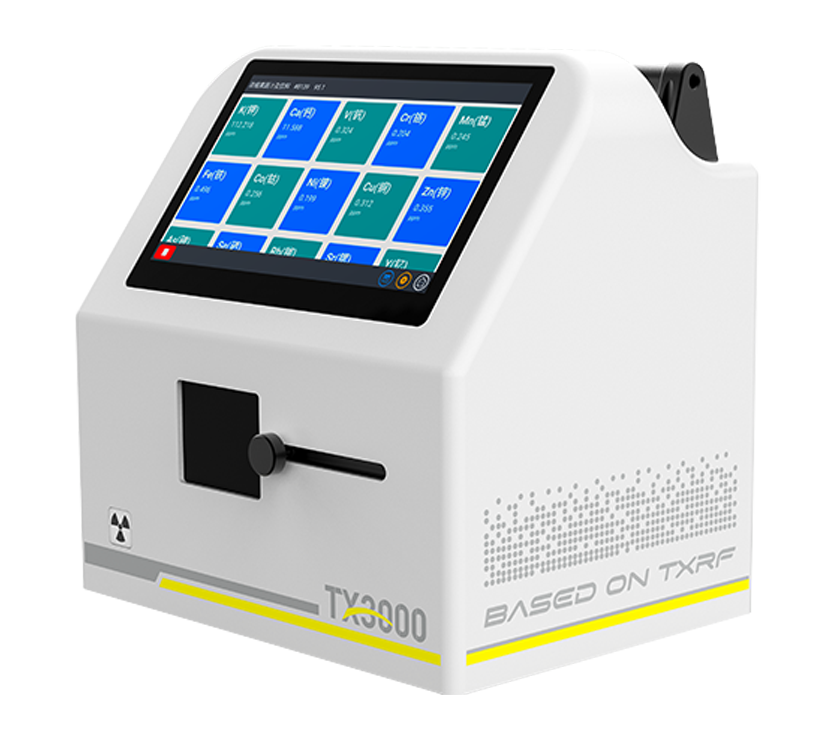

The TX3000 total reflection X-ray fluorescence spectrometer is a portable spectrometer specially designed and developed by LANScientific for elemental analysis and trace analysis after years of XRF technology research. It can achieve high-sensitivity detection under extremely low noise background, and can quickly perform quantitative and semi-quantitative multi-element trace analysis on liquids, suspensions, solids and pollutants, providing a high-efficiency and high-sensitivity solution for the field of trace element analysis.
The TX3000 is compact and easy to carry and transport, which is very suitable for on-site analysis or mobile laboratories. It has the characteristics of simple sample preparation, high performance, ease of use, environmental protection and economic benefits, and is a powerful analytical tool in scientific research, quality control and environmental monitoring.
trace element analysis of soil, air and water |
|
|
|
Geology/metallurgy |
Forensic science |
Cosmetics |
| Size | 360mm x 265mm x 365mm ( LxWxH ) |
| Weight | ≤15KG（without battey ） |
| Core Technology | Total reflection X-ray fluorescence (TXRF) |
| Element Range | Al—U |
| Concentration Range | ppb to 100% |
| Sample Types | Liquids, suspensions, powders, particles, metals, thin layers, tissues, wipes, filters etc. |
| Sample volume | Liquids and suspensions from 1 µl to 50 µl Particles up to 100 µm in diameter, powders up to 10 µg |
| Sample carrier | Glass carriers |
| X-ray tube | High brightness micro-focus fixed target light source |
| Optical system | Vacuum orthogonal back-to-back X-ray artificial multilayer reflective focusing mirror |
| Detector | 50mm2 large area SDD detector |
| Data Display System | Integrated instrument with built-in display, super large industrial-grade capacitive screen |
| Accessories | Pipette, pipette tip, mortar, spatula, heating and drying device, etc. |
