Portable XRF

TrueX 70KV rare earth analyzer

70KV high voltage excitation, rare earth analysis expert in hand!

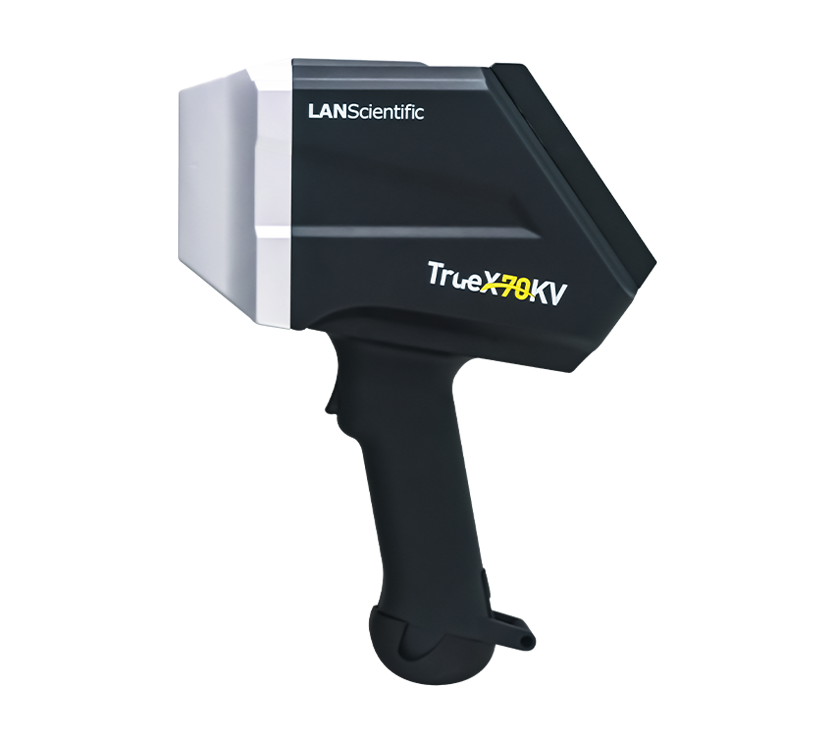

TrueX 70KV rare earth analyzer

The TrueX 70KV handheld rare earth analyzer is an efficient tool designed for rare earth element detection. It combines the three core advantages of portability, accuracy and intelligence. The device uses advanced X-ray fluorescence technology to quickly identify and analyze rare earth elements, covering light rare earth and heavy rare earth, and meeting the multi-element detection needs of complex samples.

TrueX 70KV breaks through the bottleneck of traditional testing. The lightweight design facilitates field work and on-site testing. The instrument does not require sample preparation, and one-click intelligent testing greatly shortens the testing time. It is equipped with personalized analysis software, supports real-time data feedback and report generation, and ensures accurate and reliable results.

With the deepening implementation of rare earth management policies in various countries, the industry's regulatory system in mining, smelting, trade and other links continues to improve. With its excellent analysis efficiency, the TrueX 70KV handheld rare earth analyzer provides a full-process detection solution for the rare earth industry chain from mine traceability → smelting control → export supervision, helping the sustainable development of the rare earth industry.


Advantage

70KV high voltage excitation

Equipped with a 70KV high-voltage X-ray tube, it can significantly enhance the excitation efficiency of characteristic X-rays of heavy rare earth elements, especially the K-series spectral lines of high atomic number heavy rare earths, improve the signal-to-noise ratio and avoid spectral overlap.

Lightweight and portable

The device adopts an integrated compact design with small size and light weight, which is convenient for rapid on-site analysis and suitable for a variety of application scenarios to achieve efficient and flexible detection.

Simultaneous analysis of multiple elements

The instrument can simultaneously detect rare earth elements such as La、Ce、Pr、Nd、Gd、Tb, Dy、Ho and can expand the types of elements according to needs, significantly improving detection efficiency and greatly saving analysis time.

High-sensitivity detection

It can accurately detect the content of rare earth elements, with the detection limit as low as ppm level, and can ensure detection accuracy even in the face of low-content components.

One-button operation

One-button operation, "turn on machine – start test - view results", the entire analysis process can be completed in just a few seconds, the operation is simple, even non-technical personnel can easily master it.

Instant analysis

The detection time is usually completed within a few seconds to a few minutes, which is suitable for scenarios that require quick decision-making, greatly shortening the detection time and improving work efficiency.

Personalized intelligent software

The device is equipped with self-developed intelligent software with an intuitive and easy-to-use interface, which can be quickly mastered by novices. It supports one-click intelligent analysis, automatic report generation, local storage, and Bluetooth transmission, which greatly facilitates data sharing and subsequent in-depth analysis.

Non-destructive testing (NDT)

This instrument does not require destructive treatment of the sample during the testing process, and can maintain the integrity and originality of the sample.


Application scenario

TrueX 70KV rare earth analyzer(图1)

Analysis of mineral processing grade in geological prospecting

TrueX 70KV rare earth analyzer(图2)

Mineral exploration and mining


TrueX 70KV rare earth analyzer(图3)

Industrial production and quality control


TrueX 70KV rare earth analyzer(图4)

Materials science and R&D





Product Parameters

Size254mm x 79mm x 280 mm (L x W x H)

Weight

1.5KG(with battery)
Excitation source70kV/200μA max, W target (standard), Au, Ag, Rh target (optional)
Detector

High Sensitivity Silicon Drift Detector

Element Detection RangeLa, Ce, Pr, Nd, Pm, Sm, Eu, Gd, Tb, Dy, Ho, Er, Tm, Yb, Lu, Sc, Y, etc
Display system

4.3 "industrial grade resistance touch screen

Specialized operating system and LANScientific analysis software

Operational languages include Chinese, English and other languages

Data processing

32GB storage

The instrument can be set up and repaired remotely

Data can be exported in EXCEL and PDF formats, which can be customized by the user

Create professional reports: including company logo, company address, test results,

spectrum and other sample information (such as product description, origin, batch number, etc.)

Heat dissipationThe instrument is equipped with a special T-slot heat sink to improve the heat dissipation performance of the instrument, eliminating the need to frequently wait for the detector to cool down.
Safety

Waterproof, dustproof and shockproof carrying case

Power System

Equipped with 2 MSBUS smart batteries

Single battery can work continuously for about 8 hours, and the remaining battery capacity can be directly checked

Complies with aviation dangerous goods transportation regulations
