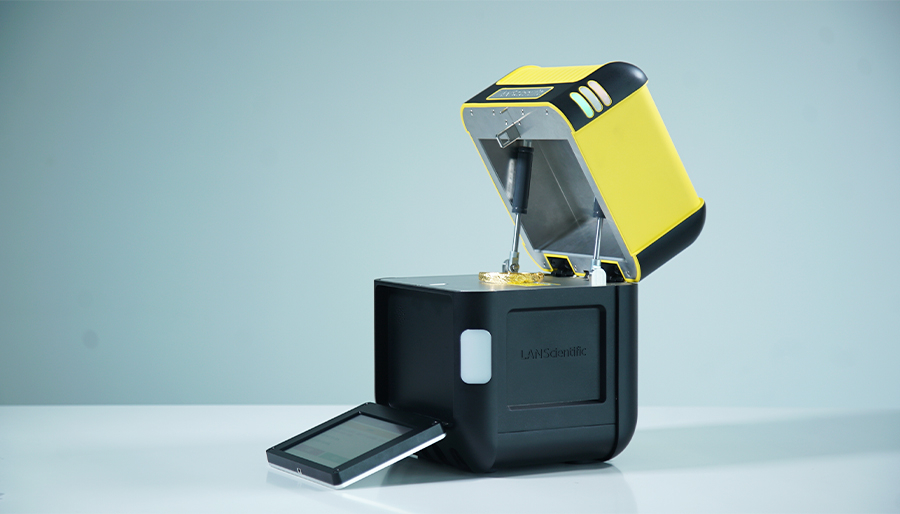

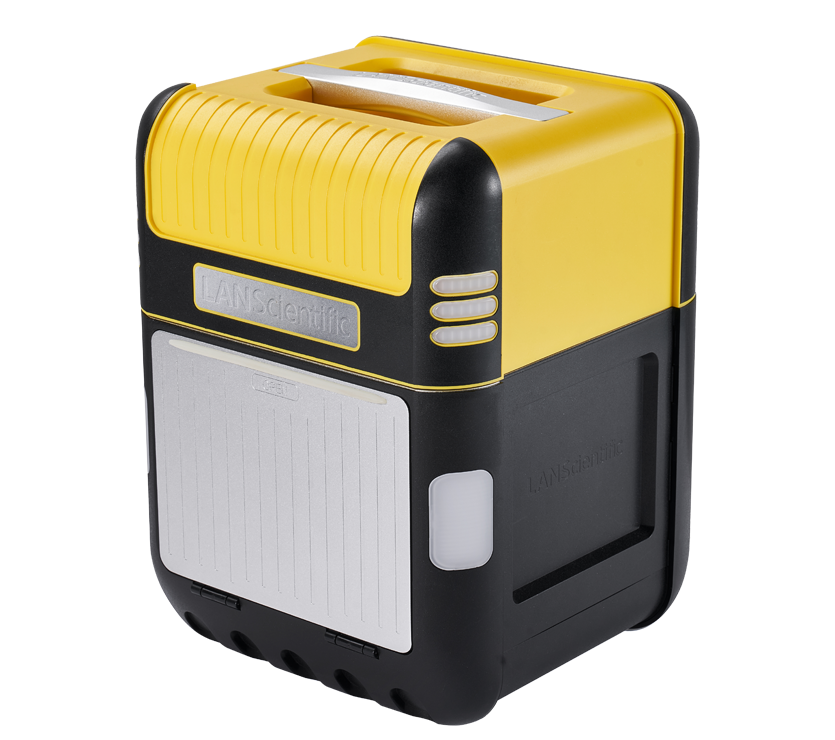

The PeDX GOLD Precious Metal Analyzer has become a widely used, popular and reliable method for determining the elemental composition and purity of precious metals. Compared with other testing methods, using an analyzer to analyze precious metals is a faster and more economical method of nondestructive testing. It can be used for on-site Karat identification of gold, identification of gold-plated samples, and accurate analysis of the chemical composition of platinum, silver and other precious metal alloys.
|
|
|
|
|
Weight | 4.1KG |
Size | 200×200×268mm(L×W×H) |
Size of Sample Room | 170×130×60mm(L×W×H) |
Excitation source | Up to 50kV, 200uA X-ray tube, upper excitation power 4W |
Detection Range | Mg—U |
Detector | BOOST Si-pin/SDD(Optional) |
Operation System | Based on the I. MX 6 Quad, quad-core Cortex-A9 processor Dedicated analytics operating system, 32GB of system memory |
Data Processing | USB, can connect the device to the Internet, remote setting and maintenance of the instrument |
Target | Ag/W/Rh (Optional) |
Resolution | <136eV |
Operating Ambient Temperature | -20℃~50℃ |
Operating Ambient Humidity | 10%~90% relative humidity, non-condensing |
Display | 5.7-inch absorbable color touch screen display |
Test Time | User customize |
Optional | Built-in 5-megapixel HD camera |
Lauguage | Chinese, English, etc. |
